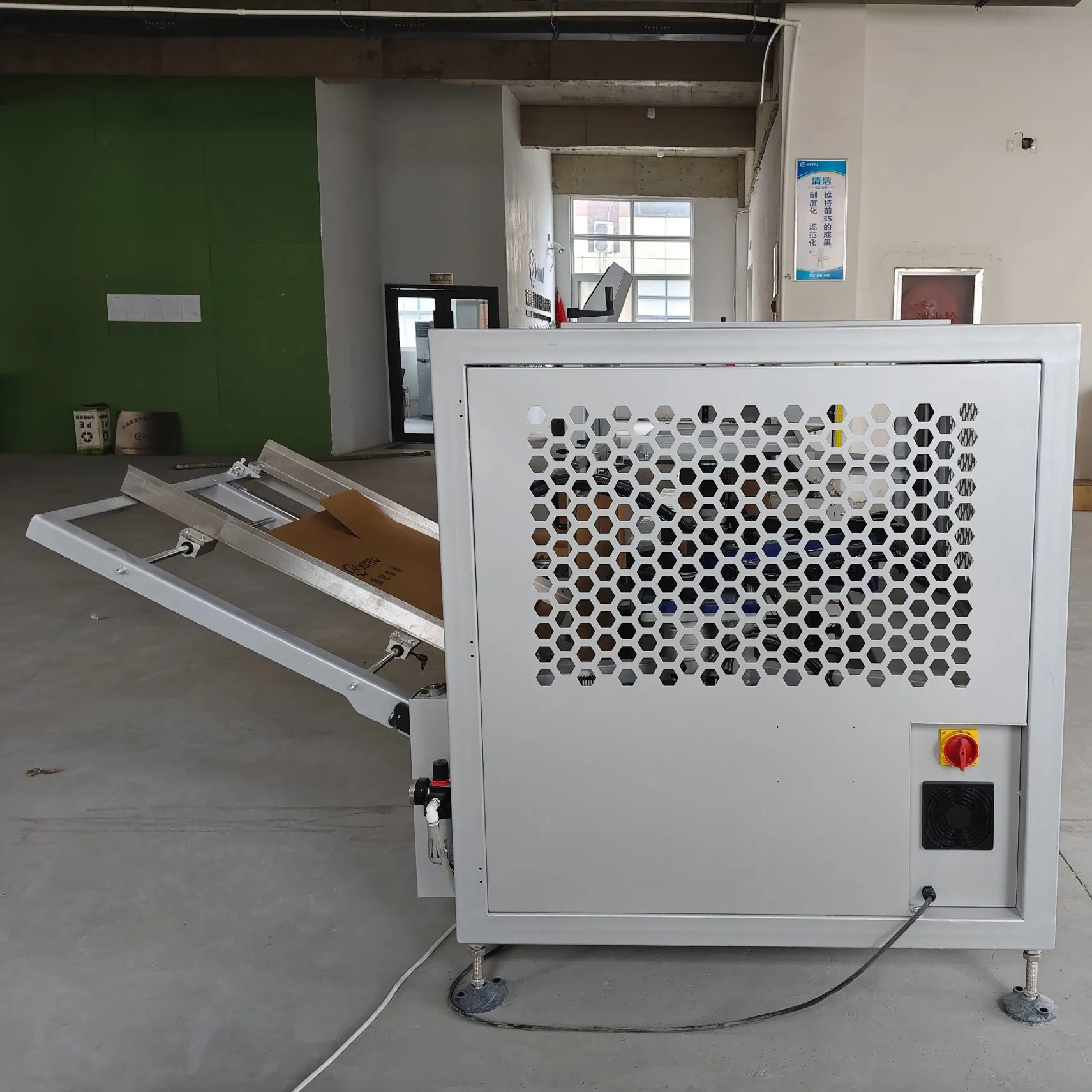

Efficient Vertical Carton Case Erector with Hot Melt Glue Technology

Customization:	Available
After-sales Service:	on Line Video Technical Service
Warranty:	1 Year

Basic Specifications

Automatic Grade

Automatic

Type

Case Erector

Forming Species

Carton Forming

Driven Type

Pneumatic

Material Type

Cartons/Boxes/Cases

Packing Speed

5-25PCS/Min

Power

380V/50Hz 2kw

Machine Size

2.2*1.8*1.45m

Machine Weight

550kgs

Erecting Method

Robot Arm

Product Description

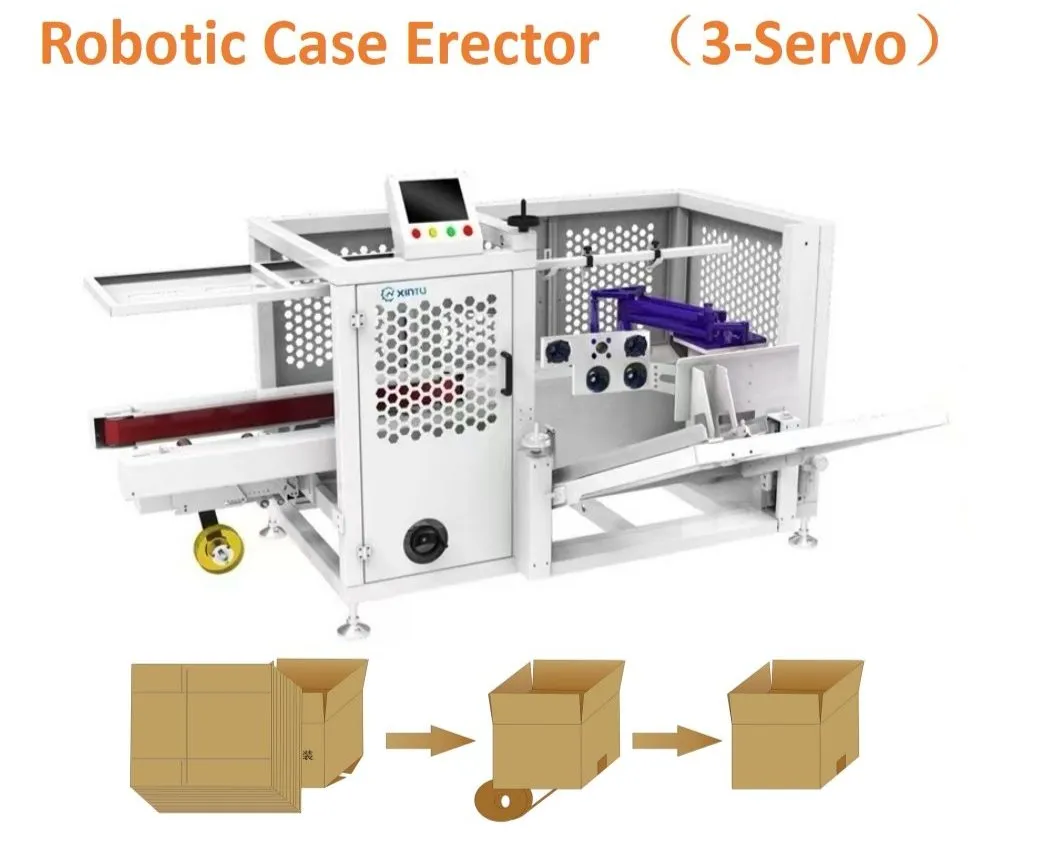

Compact Servo Case Erector

High-Automation, Low-Noise Carton Erecting Solution: Integrated with a robotic arm for full automation—cuts labor costs drastically. Runs smoothly with low noise, protecting cartons and keeping your production floor quiet. Features an inclined unpowered carton silo for non-stop refilling. Servo motor drives dual-side belts for synchronous operation, ensuring square cartons every time.

Technical Specifications

Item No.	TKXS-400	TKXM-500	TKXL-650
Packing Speed	15-25 pcs/min	15-20 pcs/min	15-20 pcs/min
Power	380V / 2KW	380V / 2KW	380V / 5KW
Machine Weight	500kgs	600kgs	700kgs
Carton Length	145-400mm	280-500mm	280-650mm
Carton Width	85-350mm	150-400mm	150-500mm

Core Features

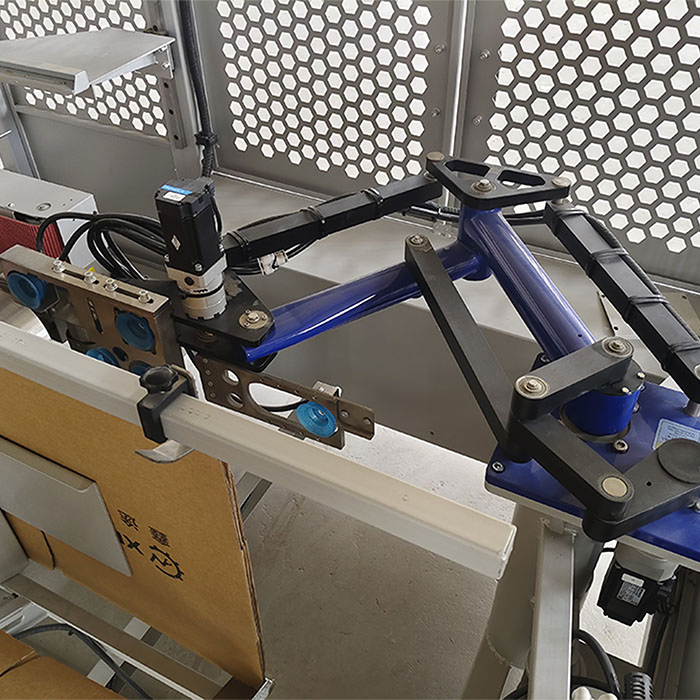

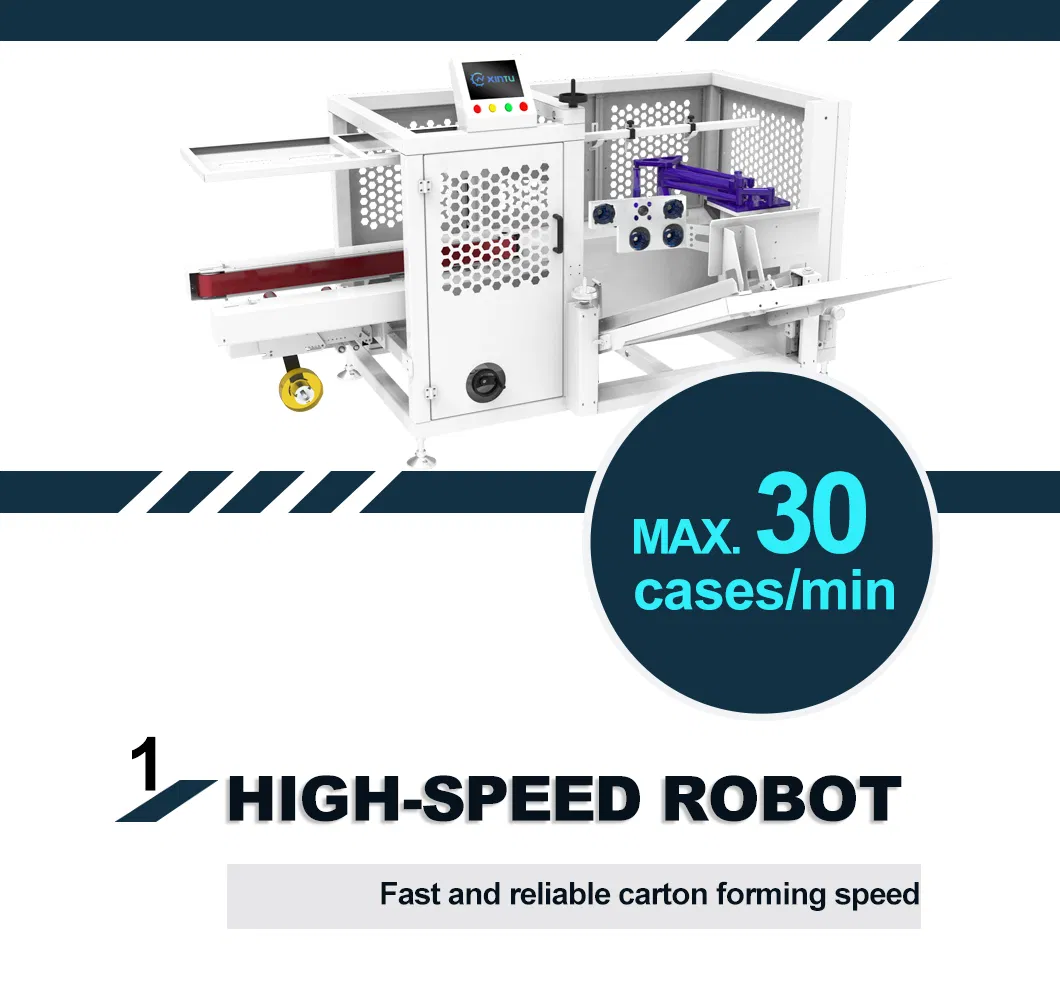

Robotic Arm Design: Precision suction cups for flexible and fast unboxing operations.

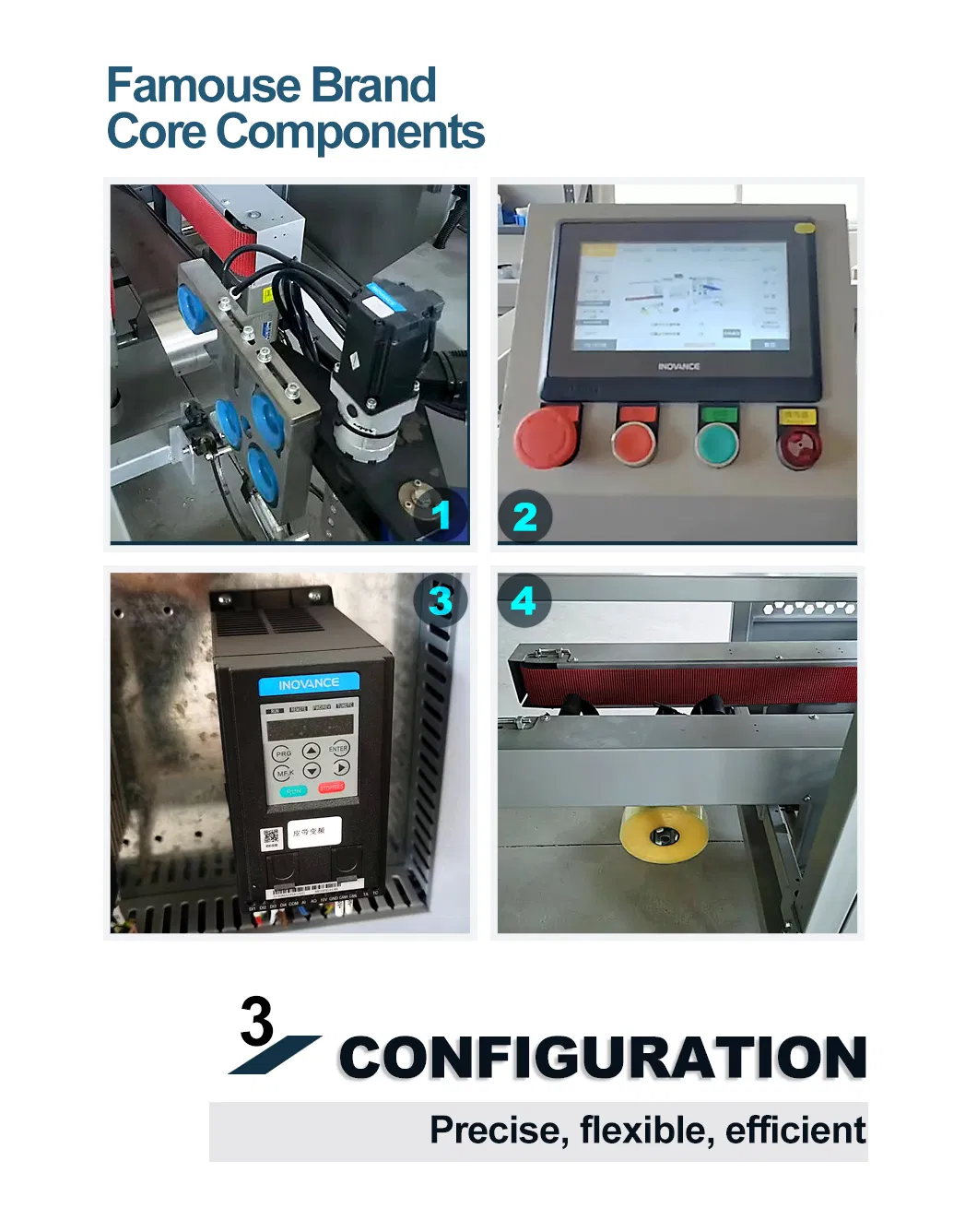

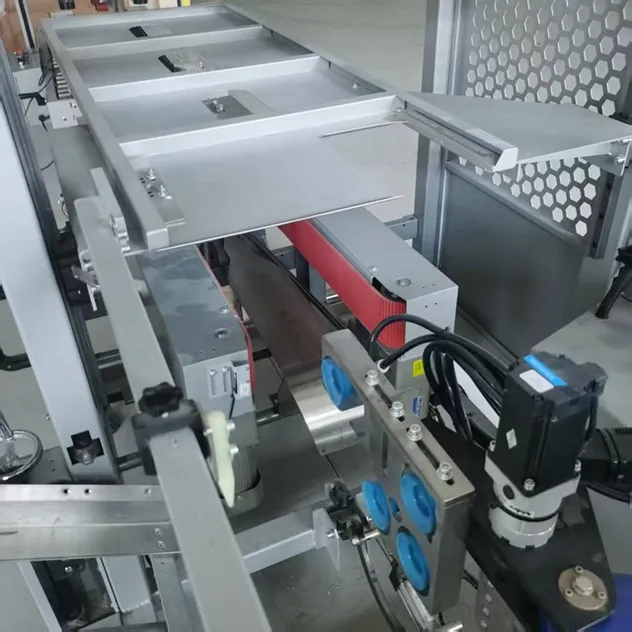

Servo Control: High accuracy and stability for 24/7 industrial production.

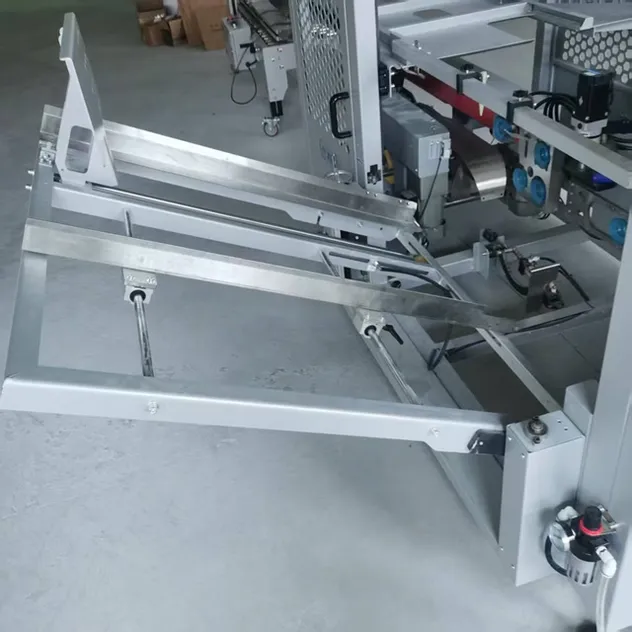

Gravity-Fed Silo: Inclined design allows for non-stop cardboard replenishment.

After-Sale Service

Quality Guarantee & Installation Support:

1-year quality guarantee for all major components.
24/7 online technical support for troubleshooting.
On-site installation and training services available upon request.
Remote guidance for international customers to ensure smooth integration with existing packaging lines.

Frequently Asked Questions

Will the gripper work with my specific product?

Yes, we recommend sending us your product samples for testing with our suction gripper to ensure a perfect match before final configuration.

What is the maximum packaging speed?

The speed varies by model (up to 25 pcs/min). Throughput can be increased by adding more gripper modules or extra working positions based on your requirements.

Is the machine difficult to operate?

Not at all. The machine features a user-friendly PLC touch screen. We pre-program standard working conditions, allowing you to start production with a simple selection.

How much maintenance is required?

Maintenance is minimal. High-quality components ensure stable operation. Routine checks on wear parts (like suction cups) are the only regular requirements.

What is the typical production lead time?

Production time usually ranges from 30 to 60 days, depending on the level of customization and specific machine requirements.

How is the equipment shipped?

All machines are securely packed in heavy-duty plywood cases to ensure protection during international sea or air freight.
