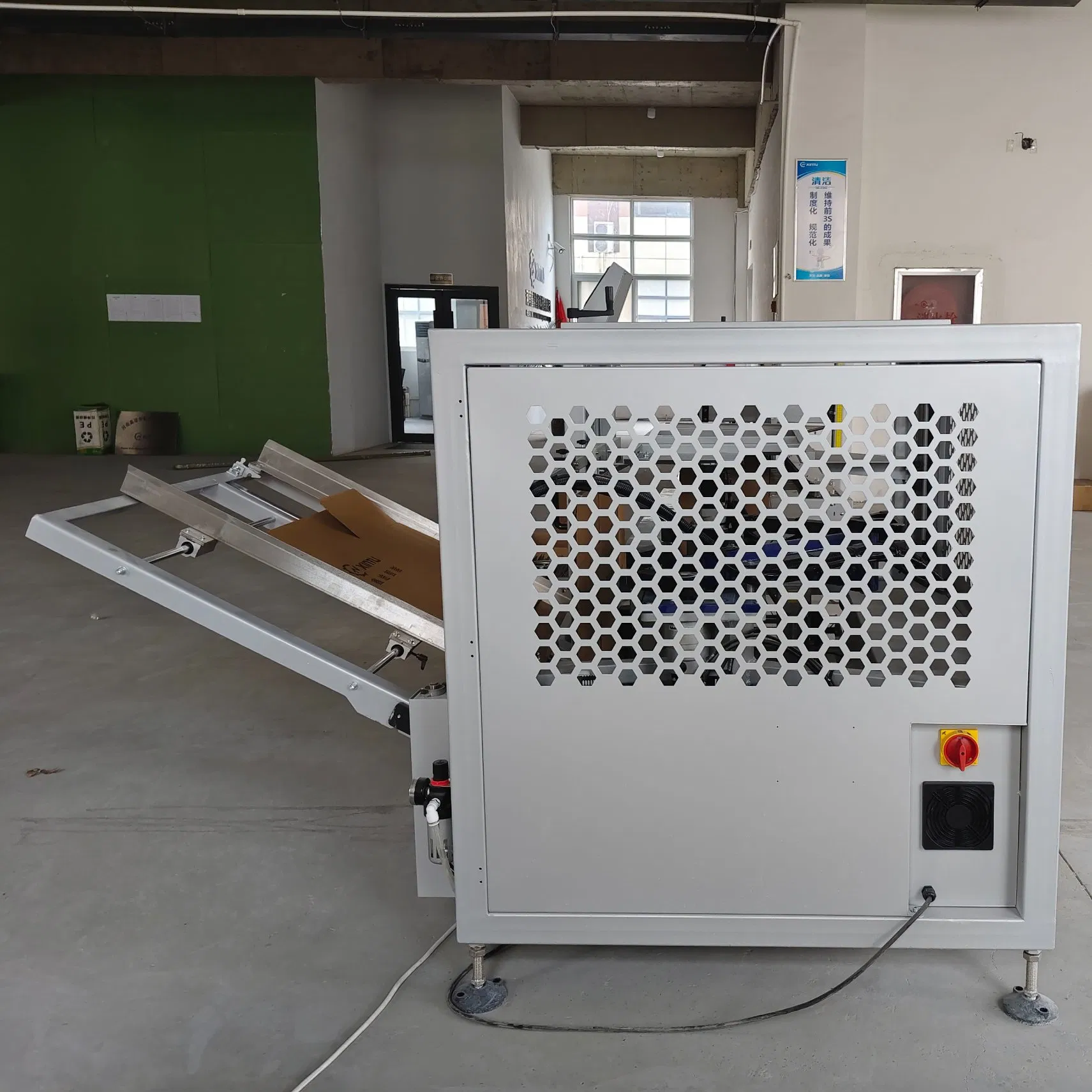

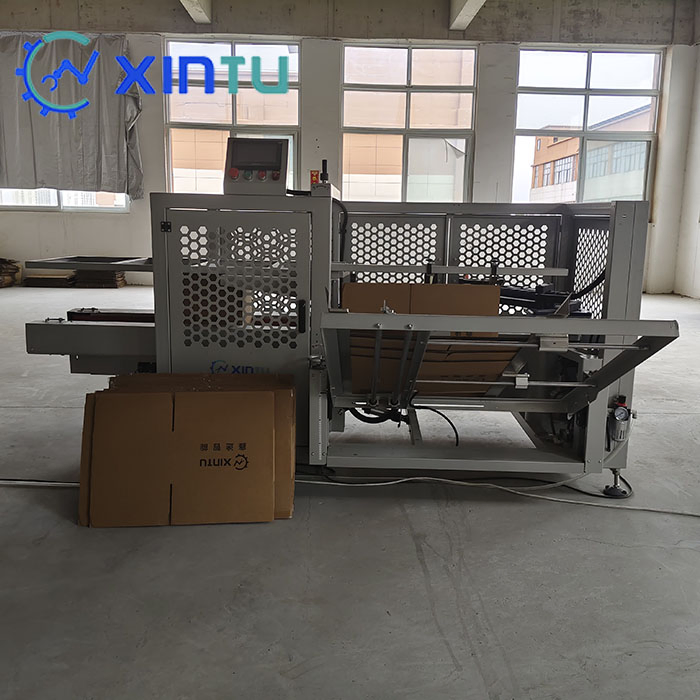

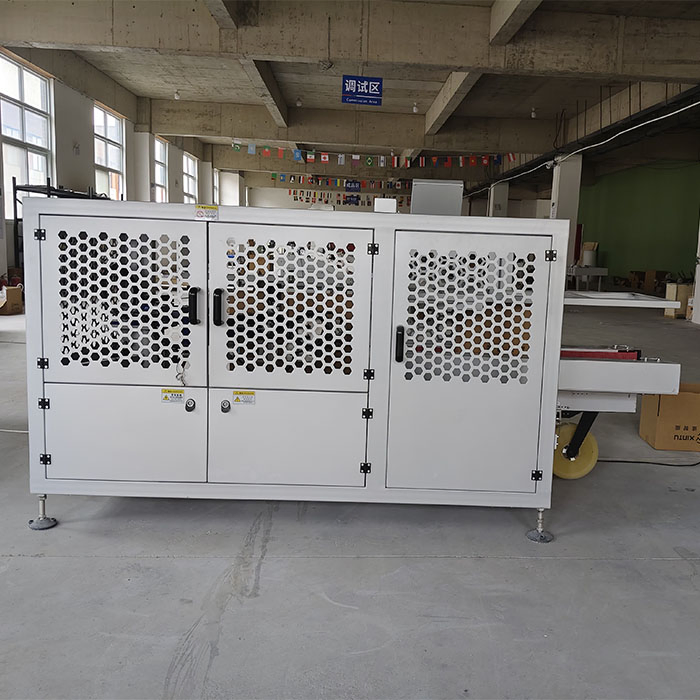

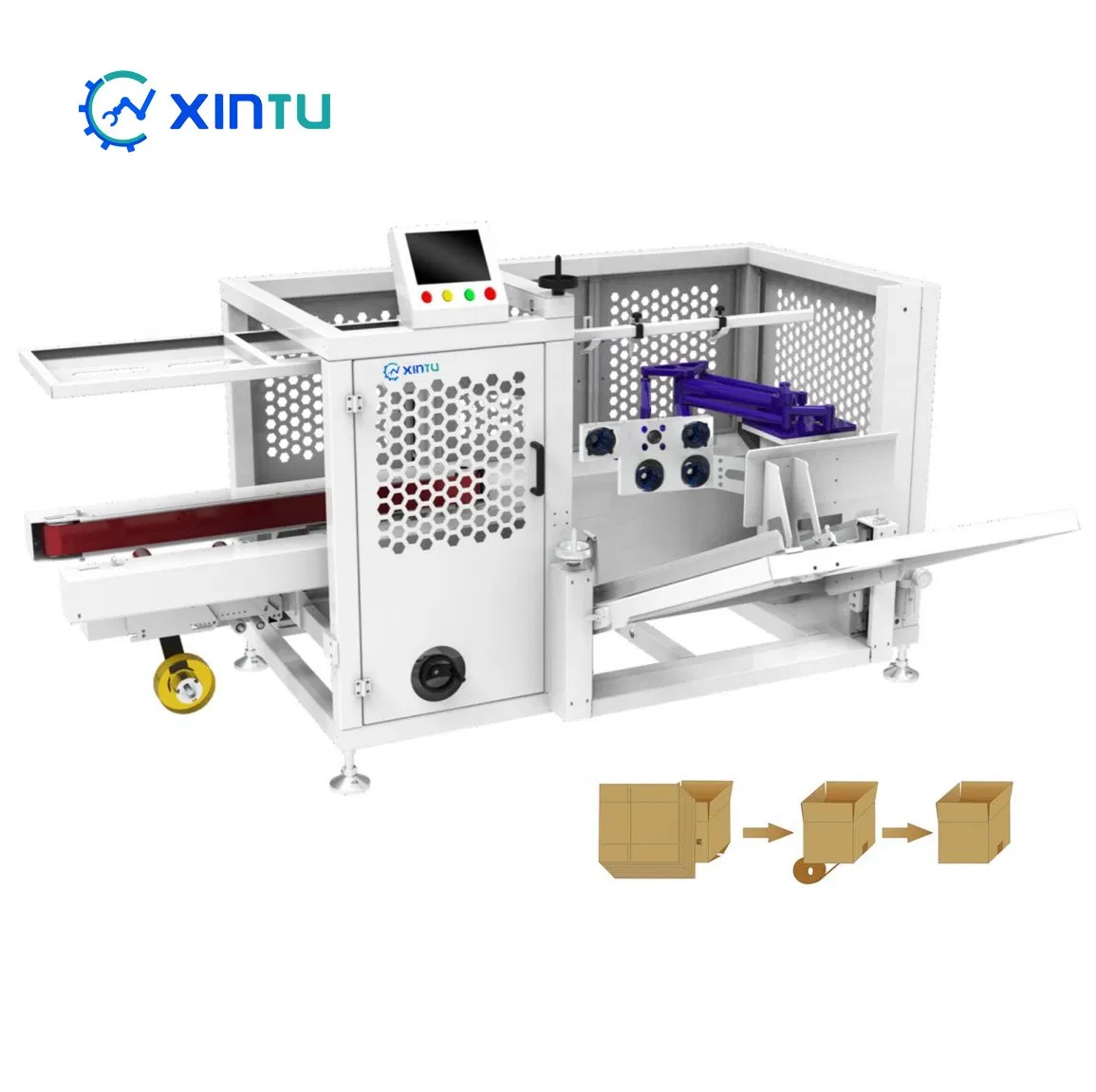

Servo-Driven Automatic Case Erector Tape Sealing & Box Forming Machine

Customization:	Available
After-sales Service:	on Line Video Technical Service
Warranty:	1 Year

📊

Basic Info

Product Name	Case Erector
Automatic Grade	Automatic
Type	Case Erector
Application	Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Packing Speed	5-25PCS/Min
Forming Species	Carton Forming
Forming Function	Forming, Seal
Driven Type	Pneumatic
Material Type	Cartons/Boxes/Cases
Packaging Material	Paper
Power	380V/50Hz 2kw
Machine Size	2.21.81.45m
Machine Weight	550kgs
Servo Motor Quantity	3PCS
Erecting Method	Robot Arm

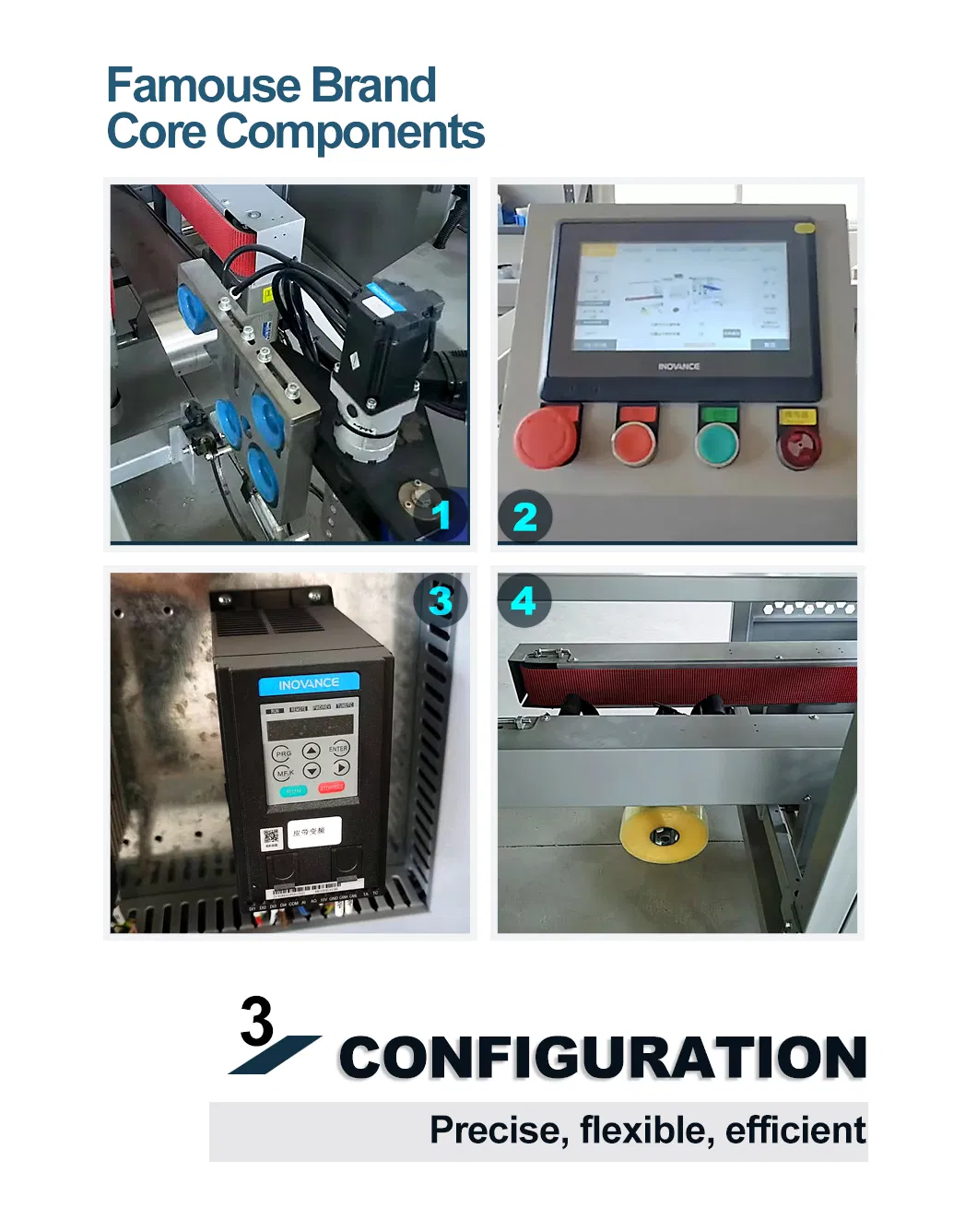

Core Components	Servo Motor, Robotic Arm, PLC
Transport Package	Plywood Case
Specification	TKXS400
Production Capacity	1000PCS/Year

⚙️

Product Description

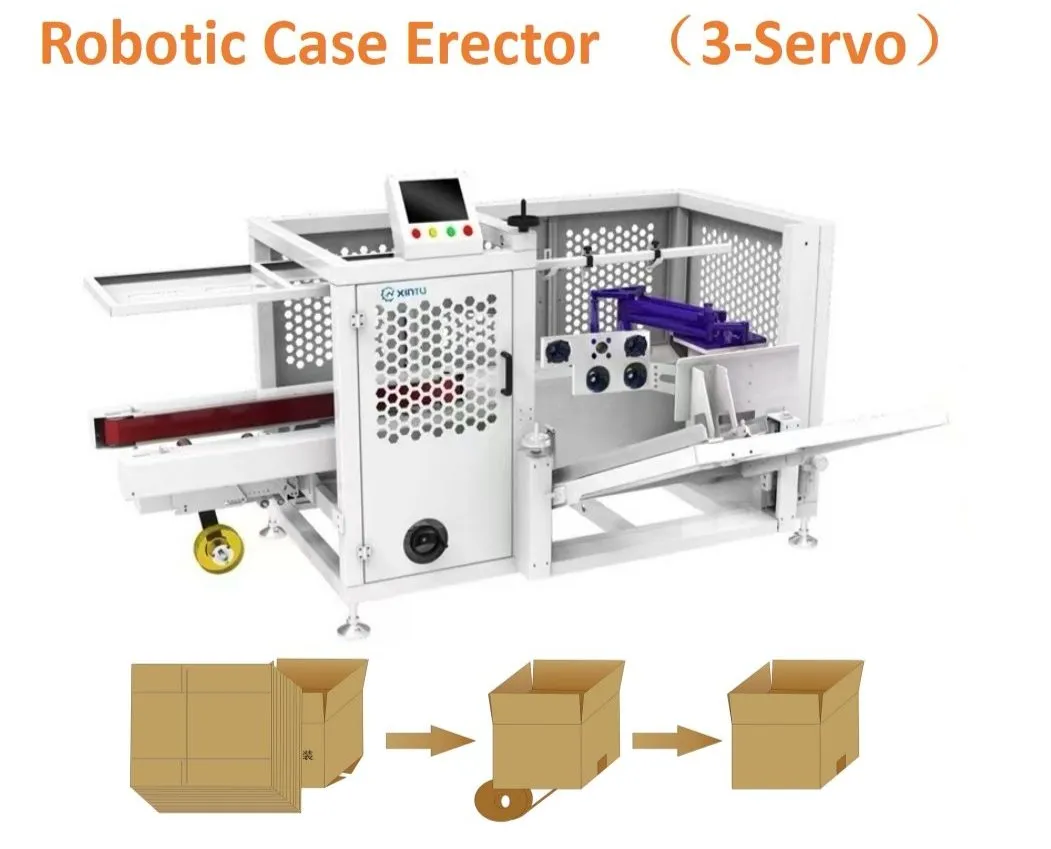

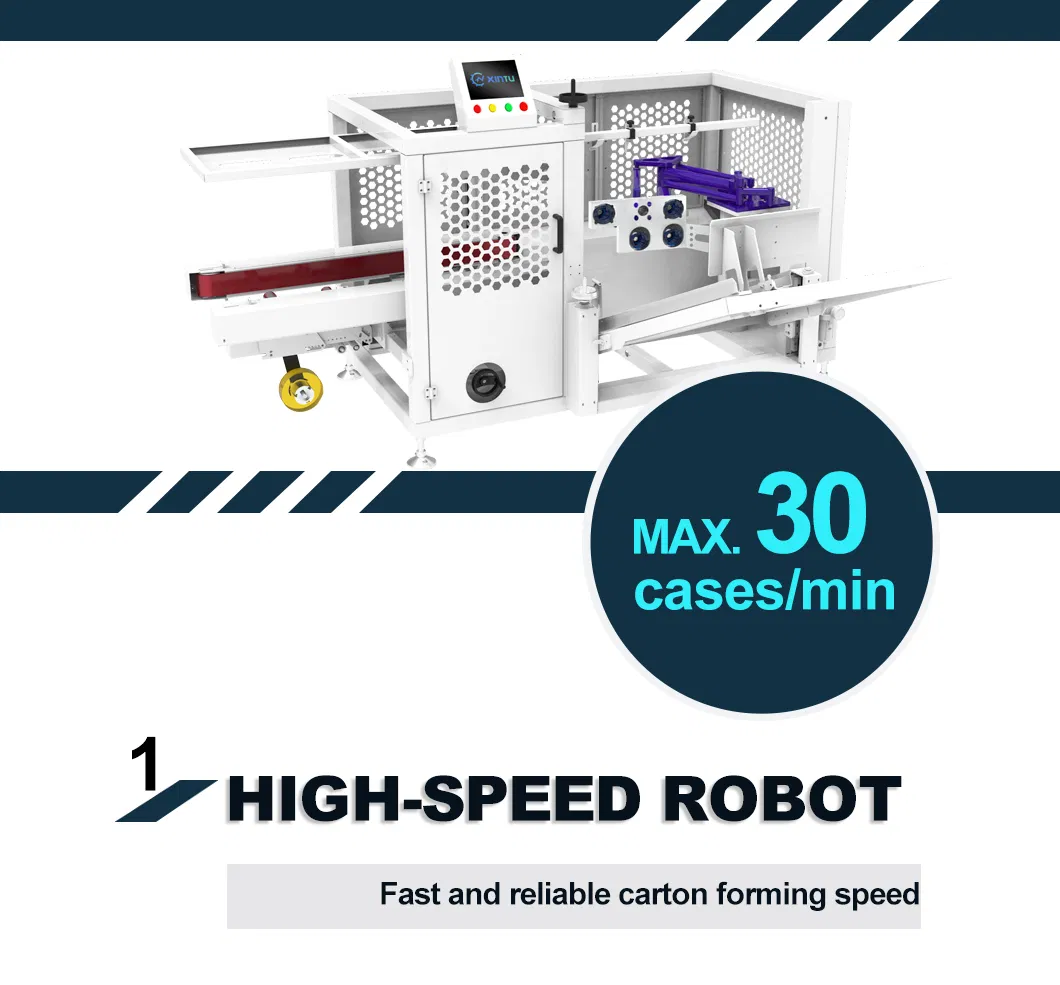

Compact Servo Case Erector: High-Automation, Low-Noise Carton Erecting Solution

✔ Integrated with a robotic arm for full automation—cuts labor costs drastically.

✔ Runs smoothly with low noise, protecting cartons and keeping your production floor quiet.

✔ Features an inclined unpowered carton silo for non-stop refilling (add cartons anytime).

✔ Servo motor drives dual-side belts for synchronous operation, ensuring square cartons every time.

✔ Compact footprint saves valuable factory space—ideal for efficient packaging lines.

📋

Specification

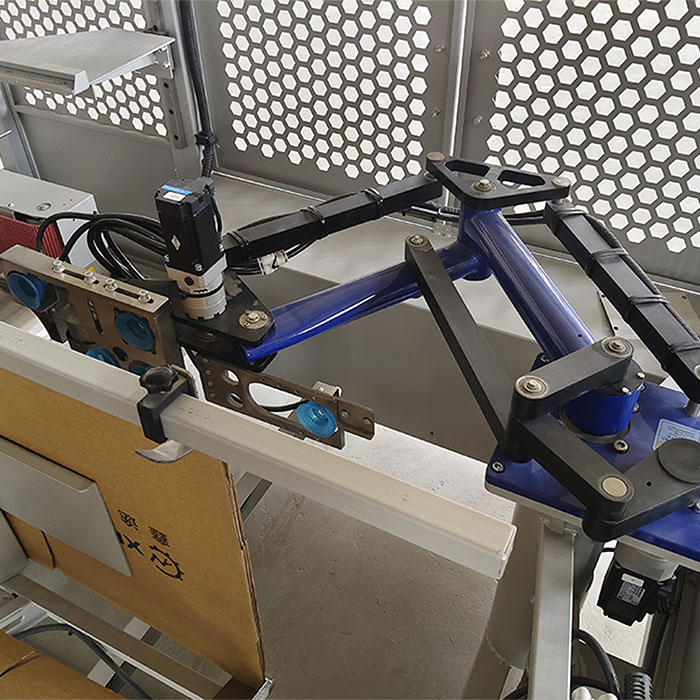

Robotic Arm Design

The robotic arm uses suction cups to adsorb cardboard boxes, making operation precise and fast.

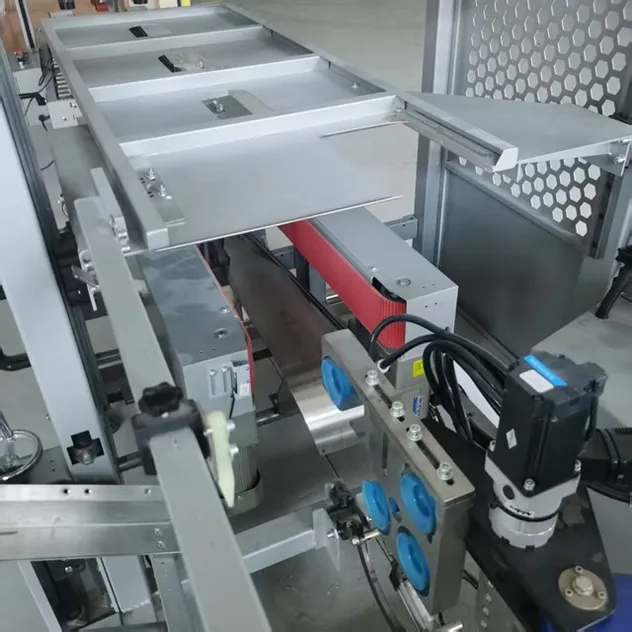

Servo Accuracy

Servo-driven robotic arm: 24/7 non-stop operation, stable performance & longer service life.

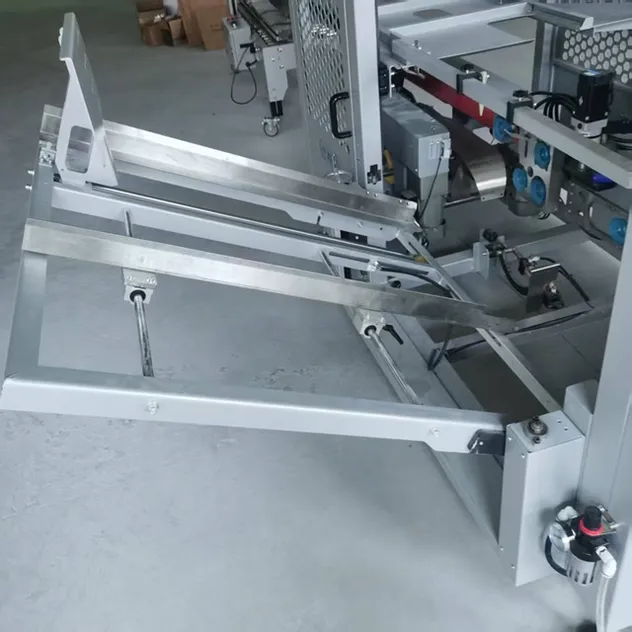

Gravity Storage Rack

Inclined gravity-fed design: cases feed automatically via their own weight—energy-saving!

Item No.	TKXS-400	TKXM-500	TKXL-650
Power	380V / 50HZ 2KW	380V / 50HZ 2KW	380V / 50HZ 5KW
Packing speed	15-25 pcs/min	15-20 pcs/min	15-20 pcs/min
Air consumption	0.6-0.8 mpa/min	0.6-0.8 mpa/min	0.6-0.8 mpa/min
Machine size	240190140cm	260190140cm	230168210cm
Carton Length	145-400mm	280-500mm	280-650mm
Carton Width	85-350mm	150-400mm	150-500mm

🏭

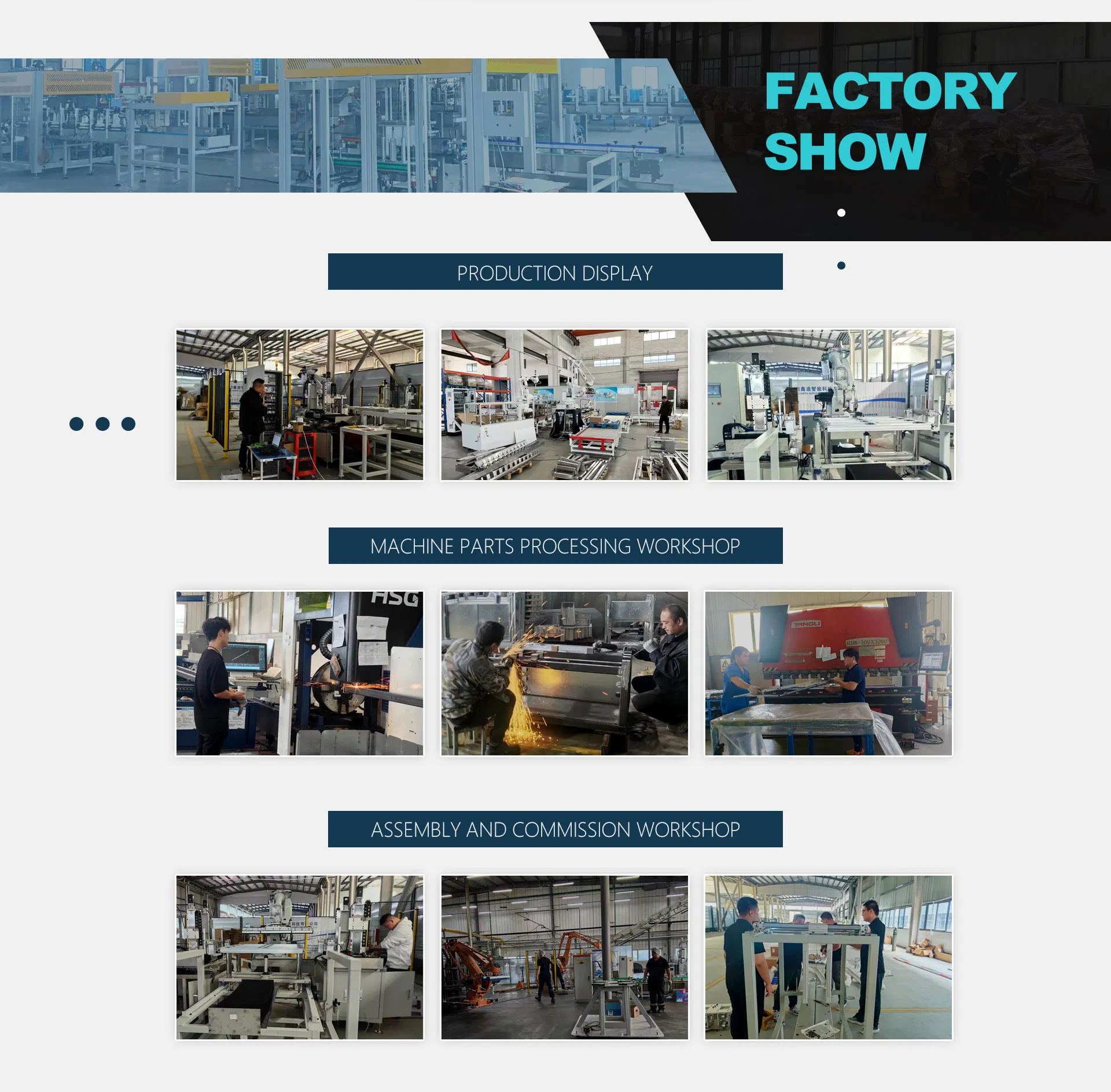

Production Environment

🛠️

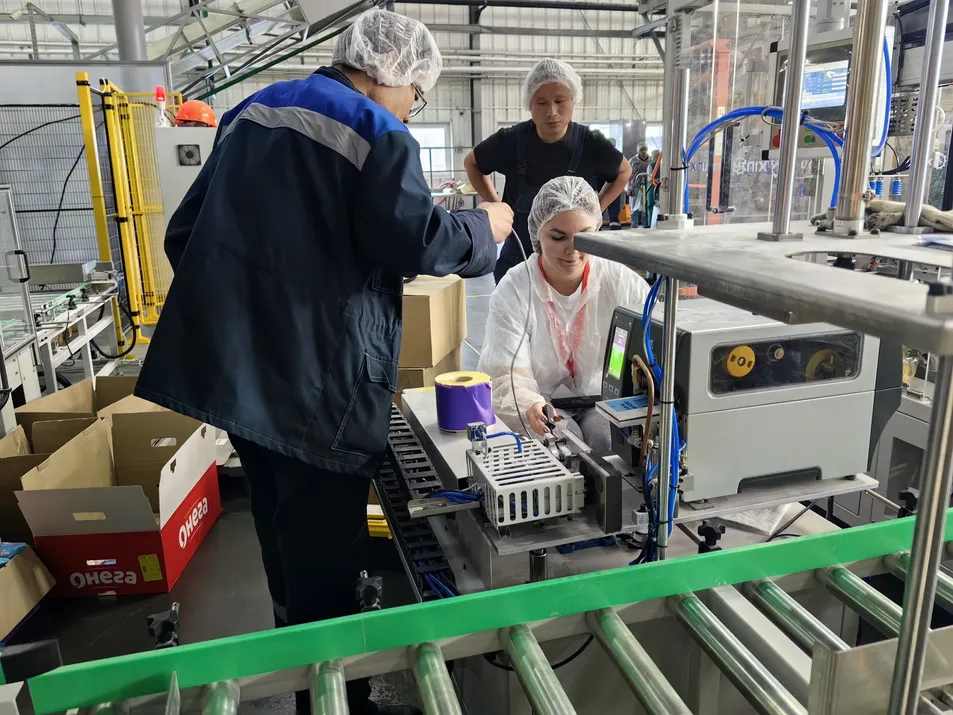

After Sales Service

After-Sale Policy

⭐ 1-year quality guarantee for peace of mind.
⭐ 24/7 online technical support whenever you need it.
⭐ On-site installation services: Available to ensure your line is up and running smoothly.
⭐ Remote Guidance: Free online technical guidance for overseas customers at no extra cost.

❓

Frequently Asked Questions

1. Will your gripper work well with my product?

Absolutely—we just need a little help to confirm! Send us your product, and we'll test it with our suction gripper to make sure it's a perfect match.

2. What's the maximum packaging speed?

This case packer is designed for speed! The gripper picks multiple products per cycle. If you need even faster throughput, we can boost performance by adding more gripper modules.

3. Is it hard to operate?

Not at all! It features a PLC touch screen with pre-programmed conditions. Select the right setting and it's ready to go. We also offer remote walk-throughs via our technical engineers.

4. How much maintenance does it need?

Very little. Thanks to high-quality core components, it runs stably. You only need to do simple routine checks on wear parts.

5. What's the production lead time?

Production time is usually 30–60 days, depending on your specific requirements. We'll give you a precise timeline once we confirm your customizations.

6. How do I place an order?

Reach out to our sales team via email or send us an online message. We'll respond promptly to share details and guide you through the whole process.
