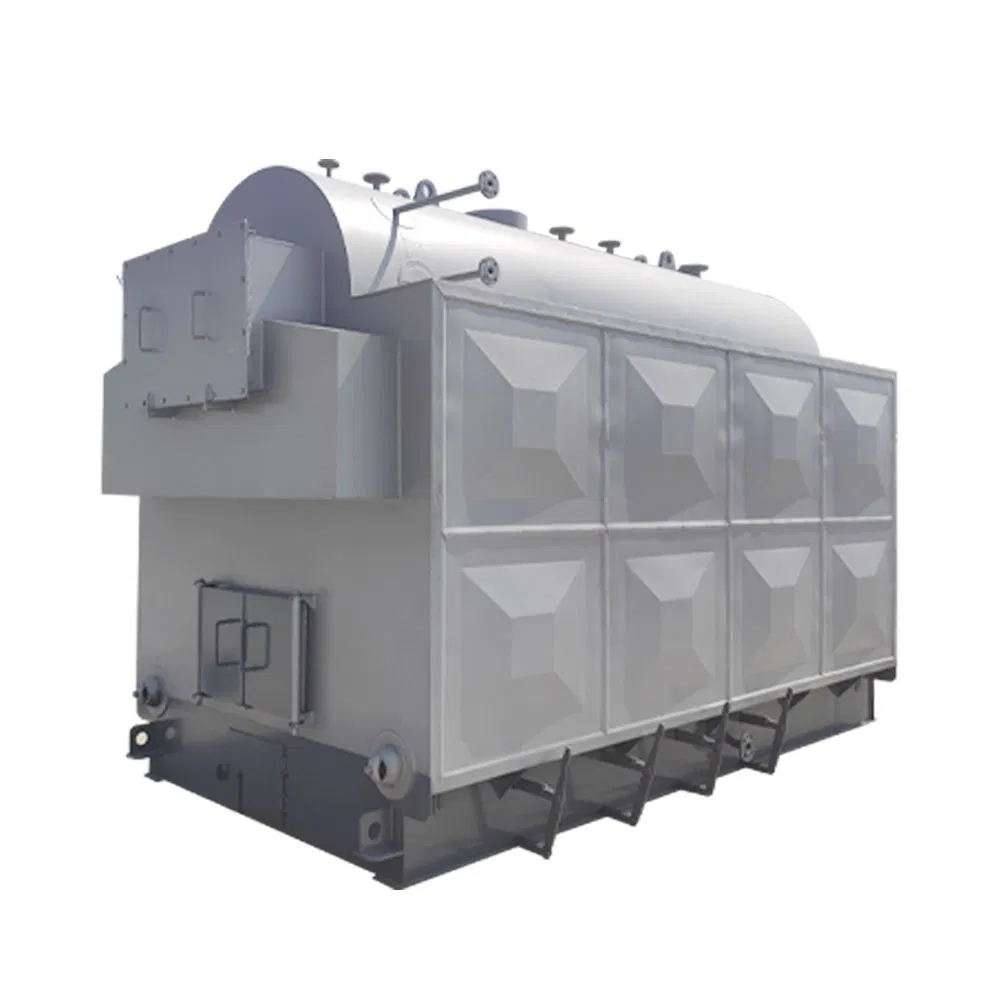

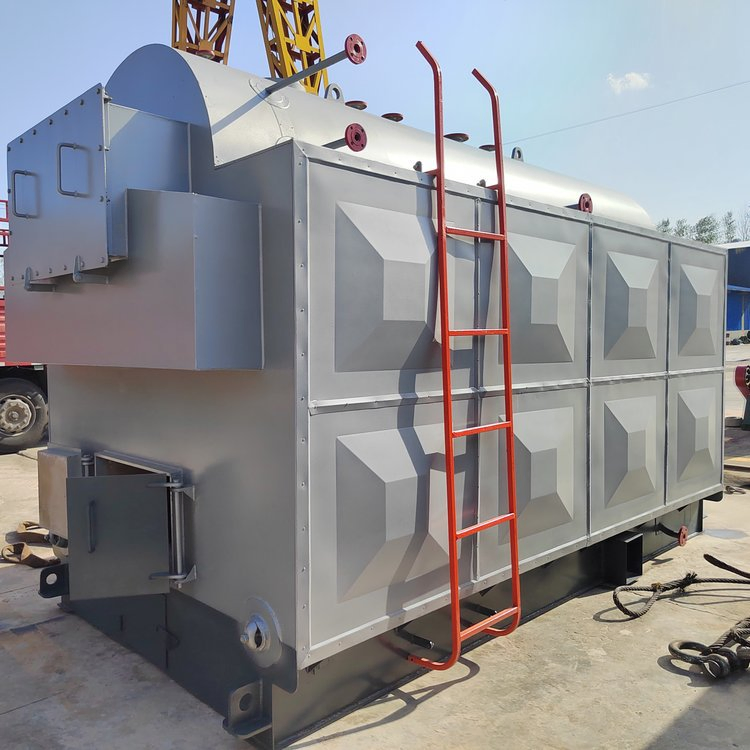

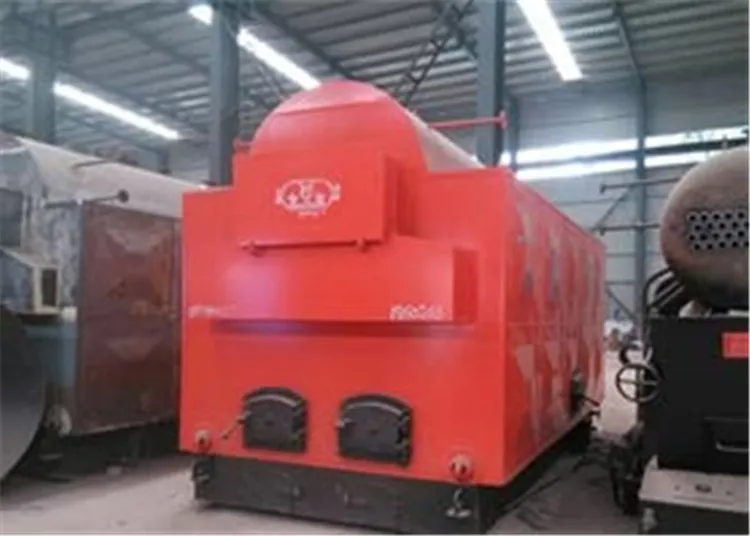

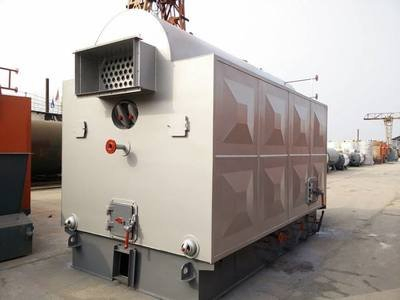

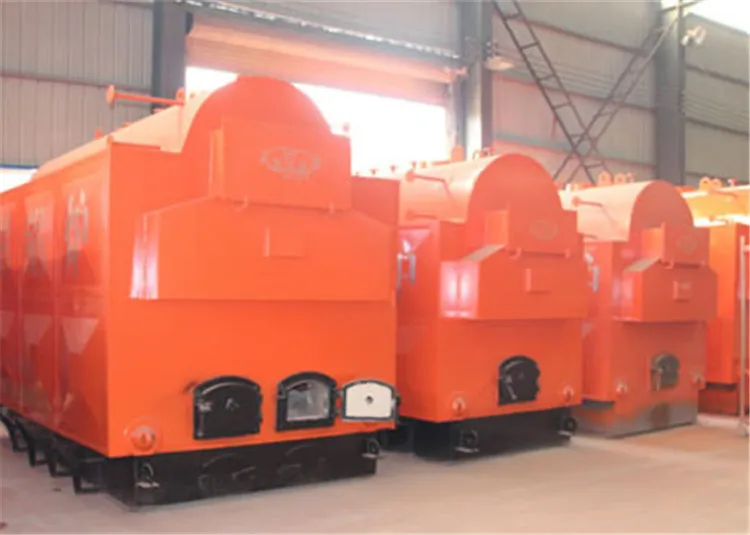

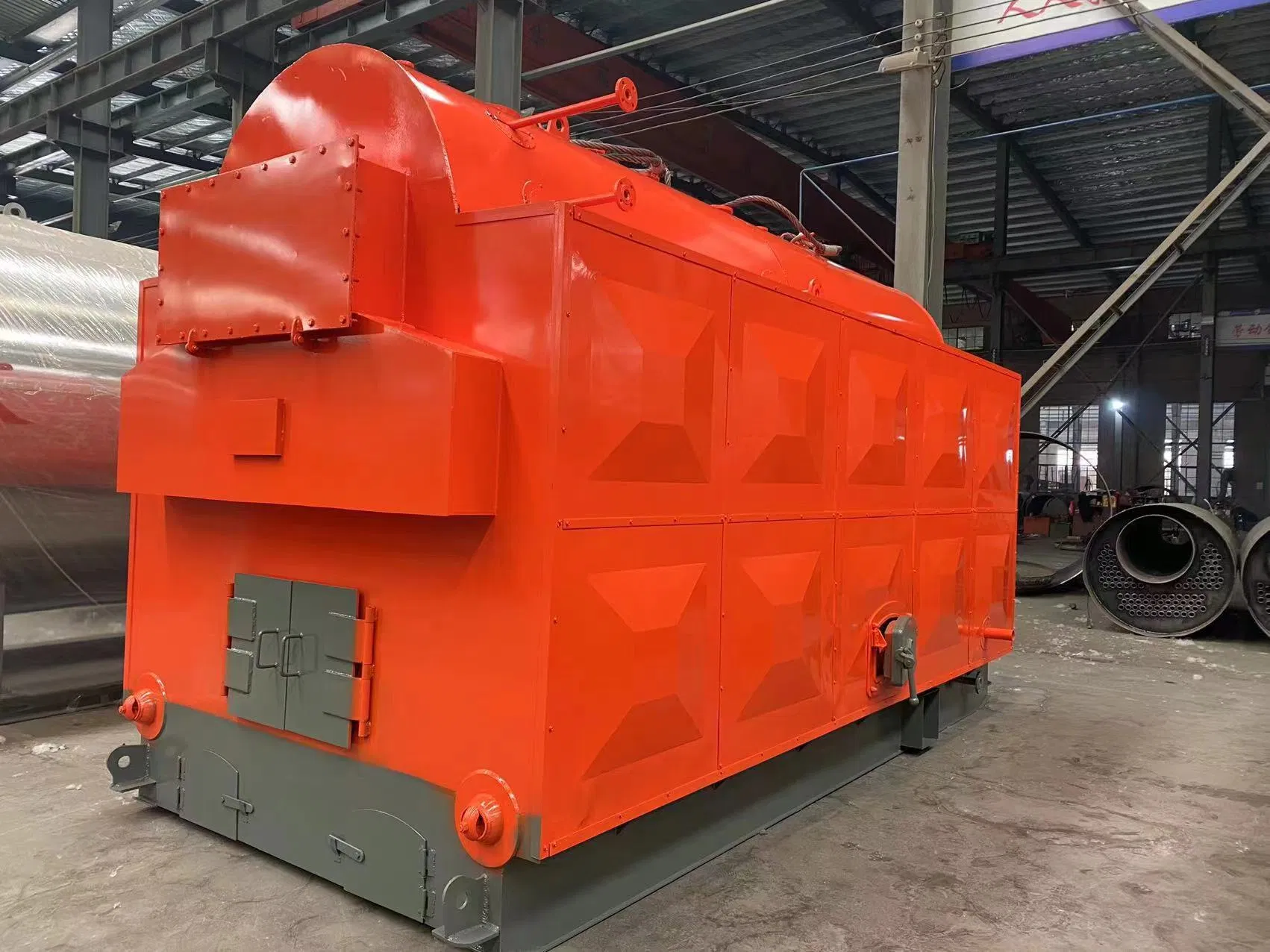

This manual operation type boiler belongs to the DZH series. Key features include a horizontal design and manual fuel feeding, which ensures fewer complications when operating with wood chips. As a highly cost-effective solution, this series has earned long-standing praise from global customers.
| Model | DZH0.5-0.7/1.0 | DZH1-0.7/1.0/1.25 | DZH2-0.7/1.0/1.25/1.6 | DZH4-1.25/1.6 |
| Rated Evaporation (t/h) | 0.5 | 1 | 2 | 4 |
| Working Pressure (Mpa) | 0.7/1.0 | 0.7/1.0/1.25 | 0.7/1.0/1.25/1.6 | 1.25/1.6 |
| Steam Temp (ºC) | 170/184 | 170-194 | 170-204 | 194/204 |
| Thermal Efficiency (%) | 80 | 80 | 80 | 80 |
| Fuel Consumption (Kg/h) | 76 | 150 | 301 | 602 |
| Weight (t) | 8 | 12 | 15 | 22 |

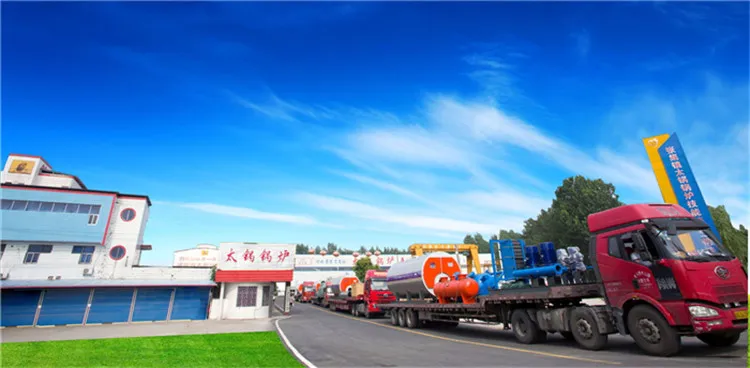

Founded in 1976, we are a professional manufacturer of Grade A industrial boilers. Our facility covers an area of 60,000 m², with a construction area of 45,000 m², and houses independent physical and chemical laboratories. We offer a wide range of products including Gas, Oil, Coal, and Biomass fired boilers, as well as Thermal Oil Boilers and Pressure Vessels.

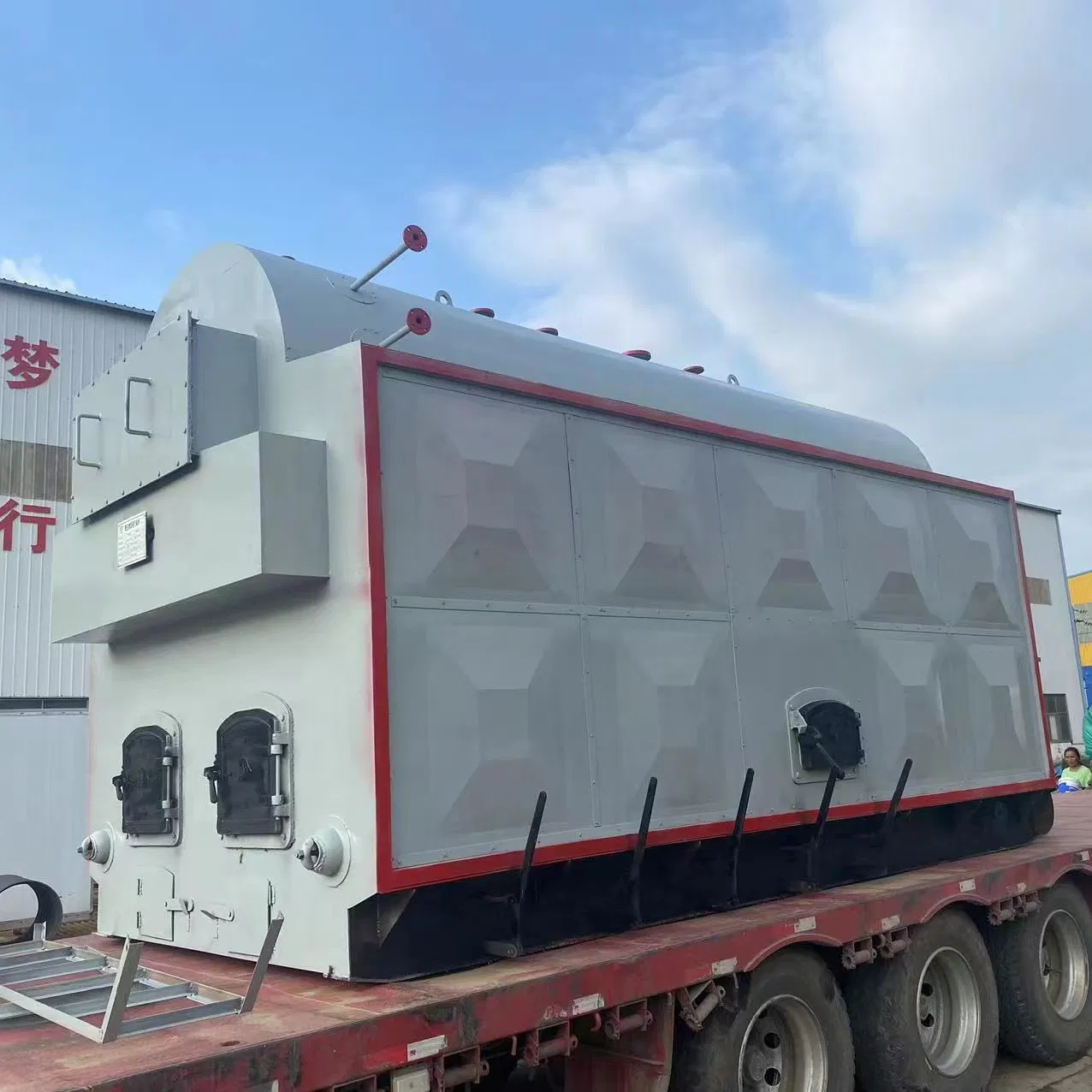

We provide safe packing and delivery methods tailored to requirements. Small boilers are typically shipped in standard containers, while larger units utilize Open-top containers or Flat Racks.
