Szg Double Conical Revolving Vacuum Dryer

Customization:	Available
After-sales Service:	After Sales Team Available
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

SZG

Movement Way

Rotation

Flow

Cross Flow

Heating Mode

Conduction

Material Status

Powder, Bulk, Heat Sensitive

Drying Medium

Inactive Gas, Effluent Gas

Operational Method

Intermittent

Type

Double Cone Rotating

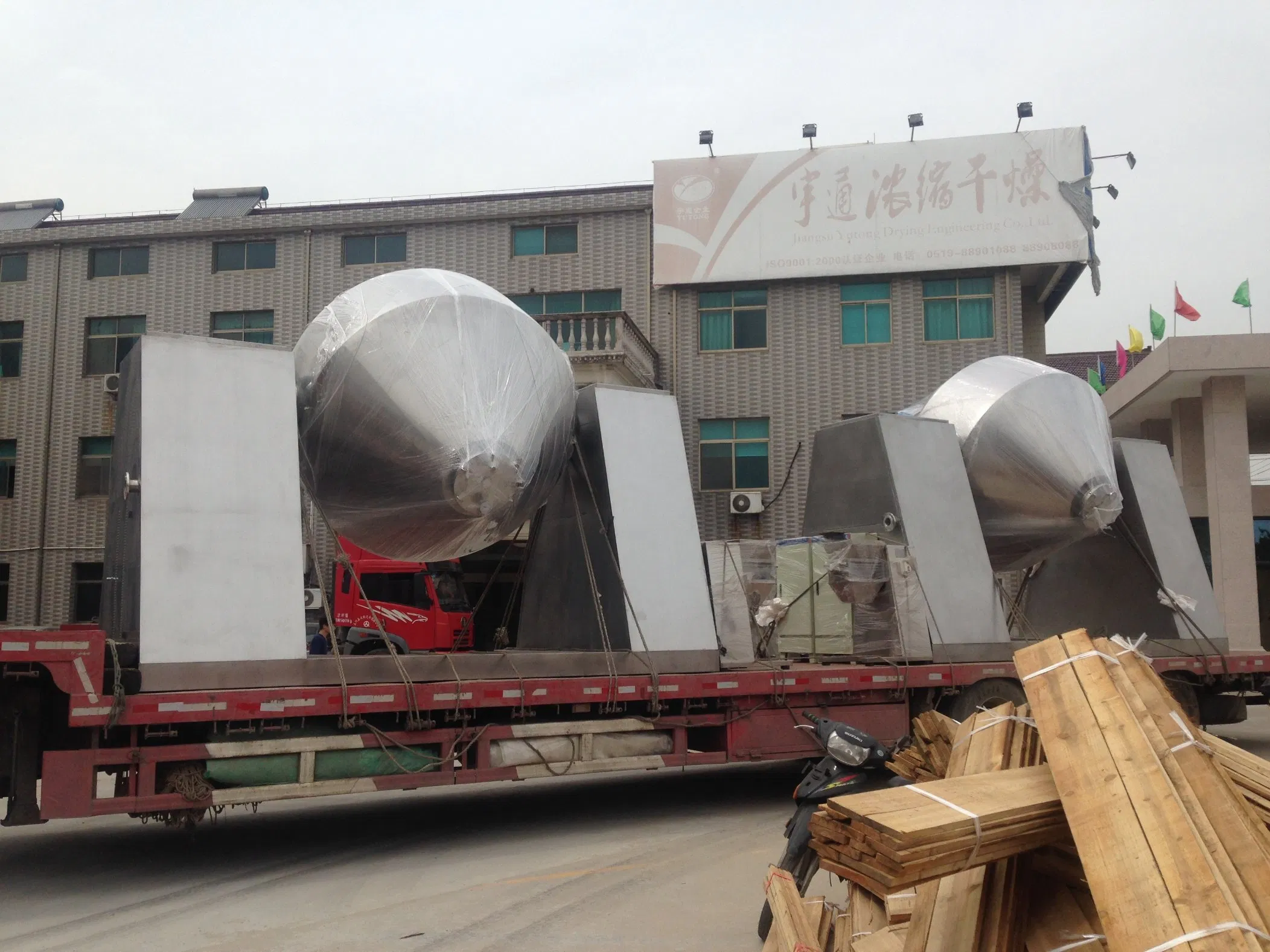

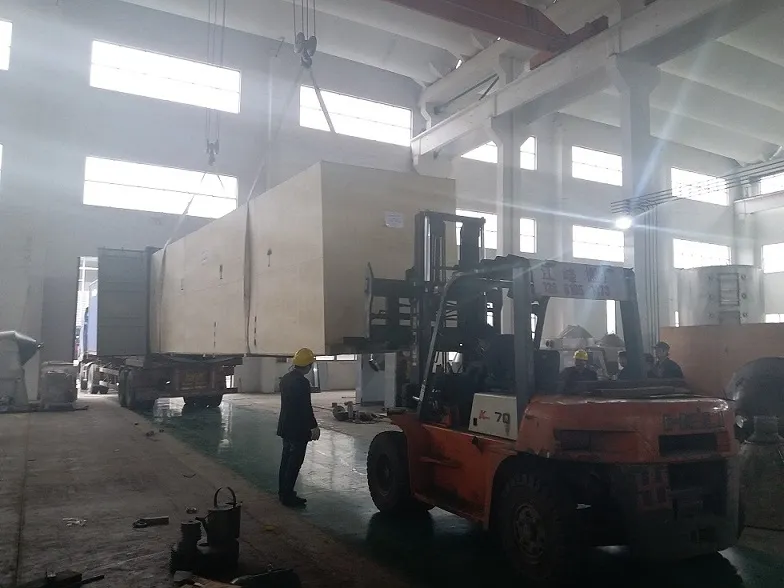

Package

Wooden Case

Payment

TT L/C

Delivery Time

30 Days

Structure

Rotary Type Drier

Operation Pressure

Vacuum Dryer

Guarantee Period

1 Year

Origin

China

HS Code

841939

Production Capacity

5---1000kg Per Batch

📝

Product Description

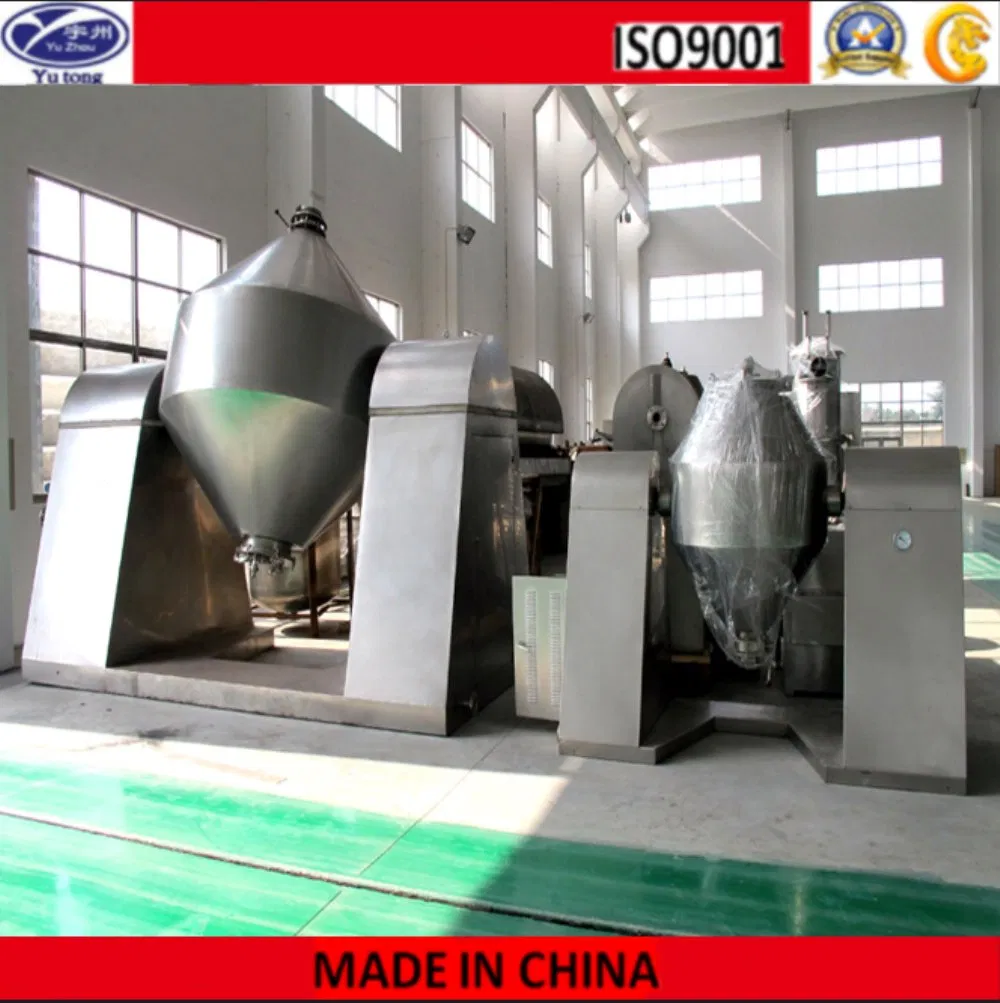

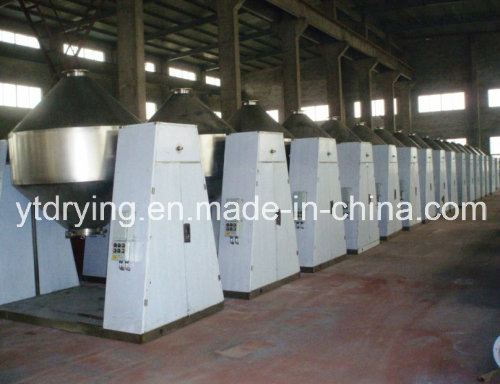

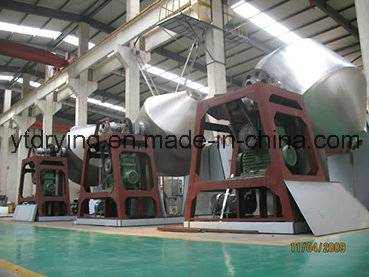

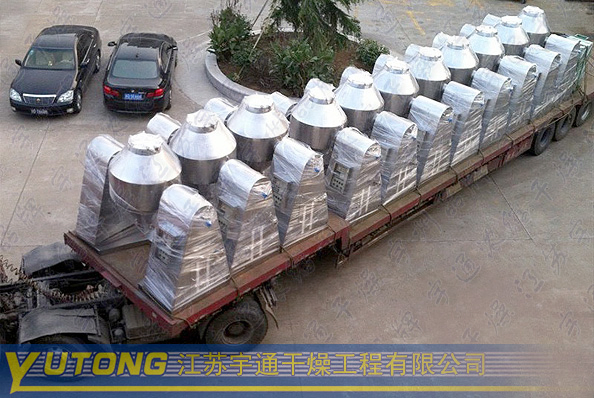

Szg Double Conical Revolving Vacuum Drum Dryer

SZG double cone vacuum dryer is a new type drying equipment which combines similar product technologies at both home and abroad. This rotary vacuum dryer possesses belt and chain two-stage elastic connection modes. With low center of gravity, this drying machine can operate smoothly. Heating medium and vacuum system adopt reliable mechanical seal or rotating joint, so as to avoid defects such as the regular packing seal is easy to leak. It not only embodies the humanized design concept but also meets the GMP standards.

🚀

Key Applications

Applicable for drying and mixing powdery and granular materials in the pharmaceutical, food, chemical, dye and other industries. Suitable for:

Thermosensitive materials that cannot withstand high temperature
Easily oxidized and dangerous materials
Materials whose solvent should be recovered and materials of poisonous gas
Materials required low residual volatile content
Materials with requirements on crystal shape

✨

Features of SZG Double Cone Vacuum Dryer

Advanced design, simple internal structure, convenient to clean and handle.
Built-in heating medium and vacuum system tubes to prevent damage and ease cleaning.
Mirror polishing treatment for inner container; polishing treatment for outer wall and rack.
Minimized material water content (≤0.5%) due to machine revolution and rotation.
Uniform drying without material sticking to the walls, ensuring energy saving.

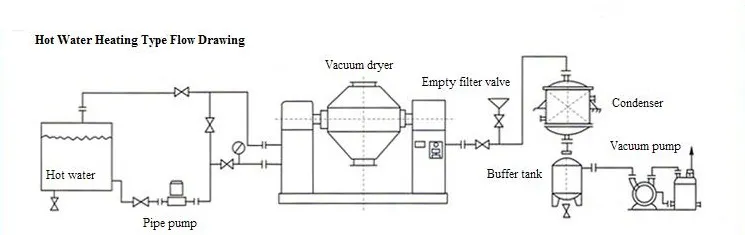

Equipped with condenser and recycling tank for organic solvent recovery.
Multiple heat sources supported: steam, hot water, and conduction oil.

⚙️

Technical Parameters

Model	100	350	500	750	1000	1500	2000	3500	4500	5000
Volume (L)	100	350	500	750	1000	15000	2000	3500	4500	5000
Max Loading Vol (L)	40	140	200	300	400	600	800	1400	1800	2000
Max Capacity (kg)	20	70	100	150	200	300	400	700	900	1000
Rotating Speed (rpm)	3~13					6	5	4	4	4
Motor Power (kW)	0.75	1.1	1.5	2.2	3	4	5.5	7.5	11	15
Rotation Height (mm)	1750	2100	2250	2490	2800	2940	2990	3490	4100	4200
Design Pressure (MPa)	-0.09 to 0.096
Interlayer Pressure	≤ 0.3 MPa
