Stable & Efficient Packaging High-Speed Carton Erector

Customization:	Available
After-sales Service:	on Line Video Technical Service
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Info.

Automatic Grade

Automatic

Type

Case Erector

Forming Species

Carton Forming

Driven Type

Pneumatic

Material Type

Cartons/Boxes/Cases

Packing Speed

5-25PCS/Min

Power

380V/50Hz 2kw

Machine Size

2.2*1.8*1.45m

Machine Weight

550kgs

Erecting Method

Robot Arm

⚙️ Product Description

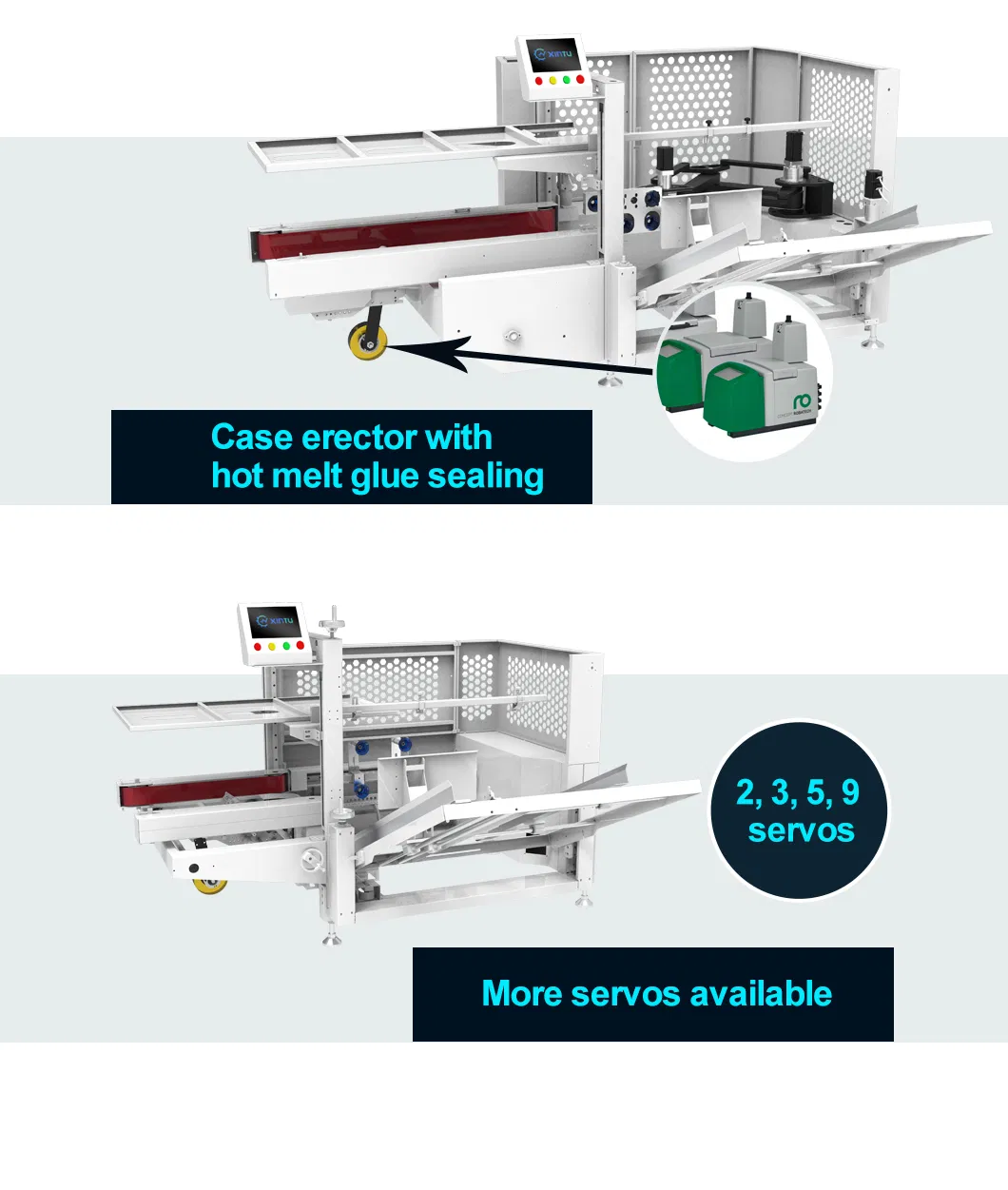

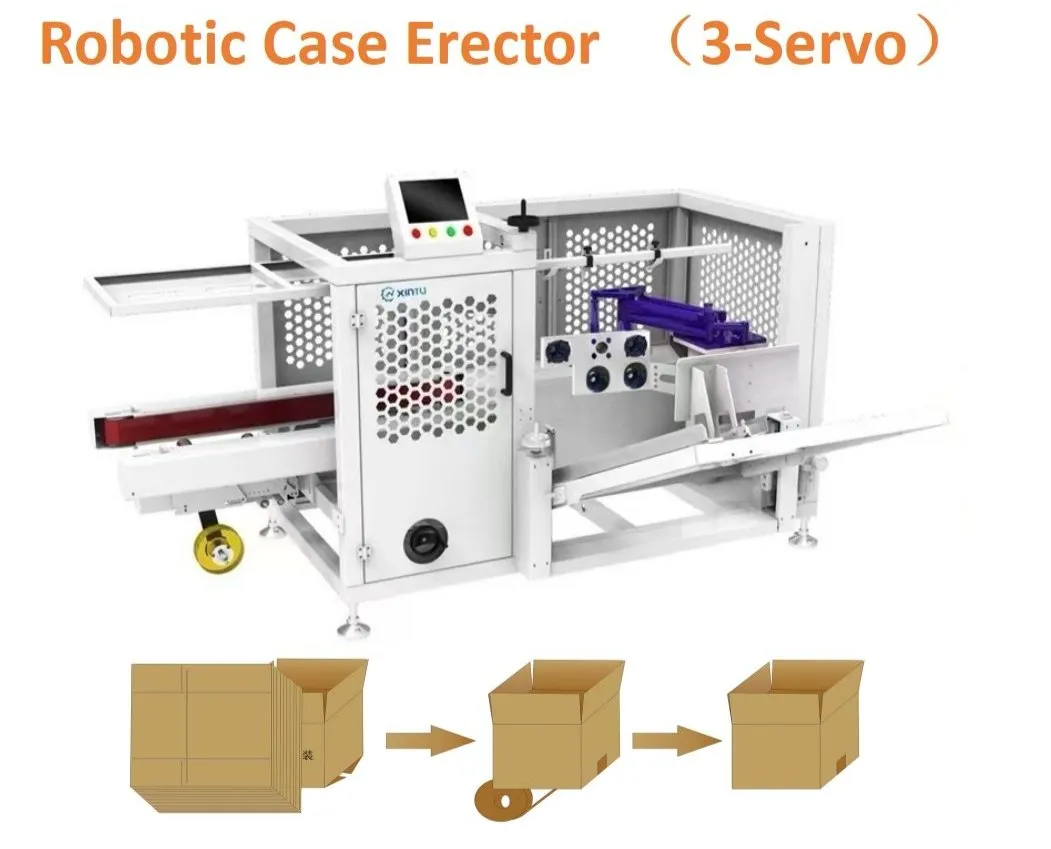

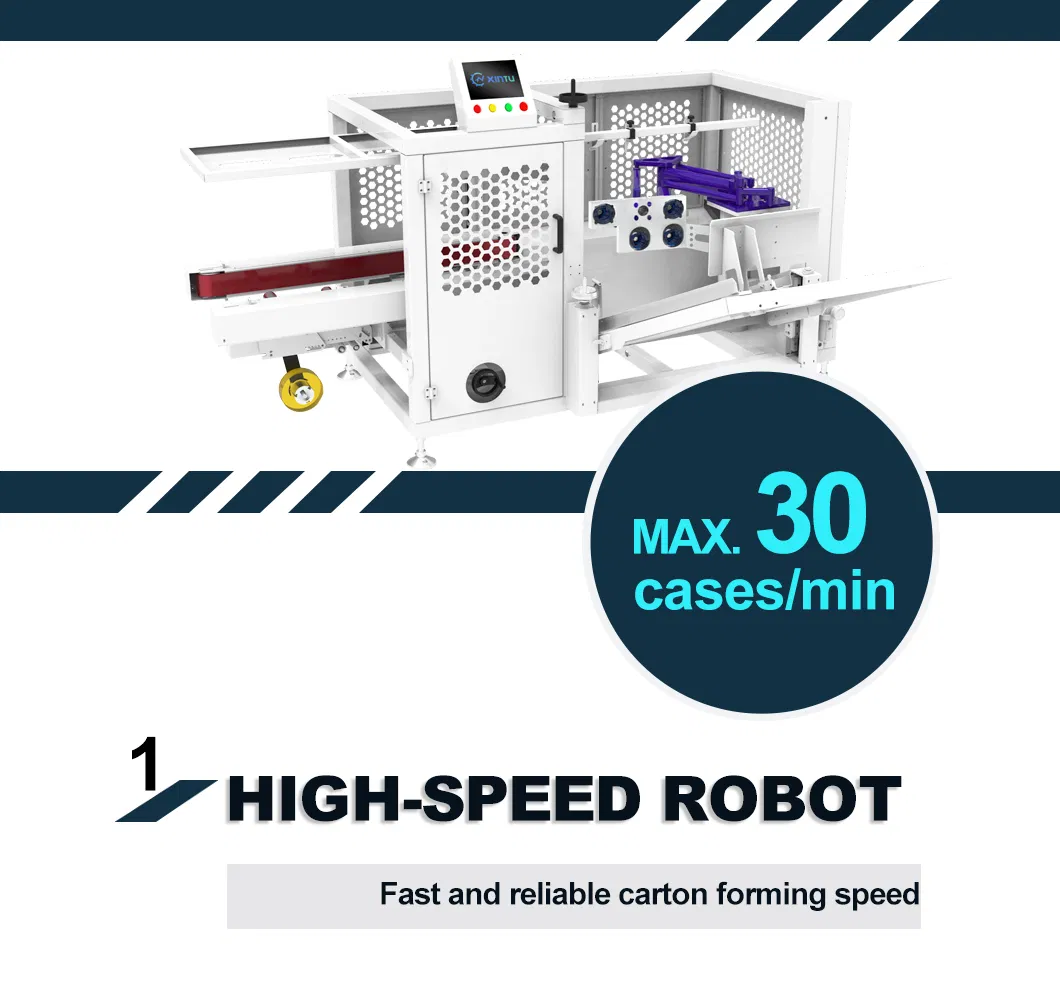

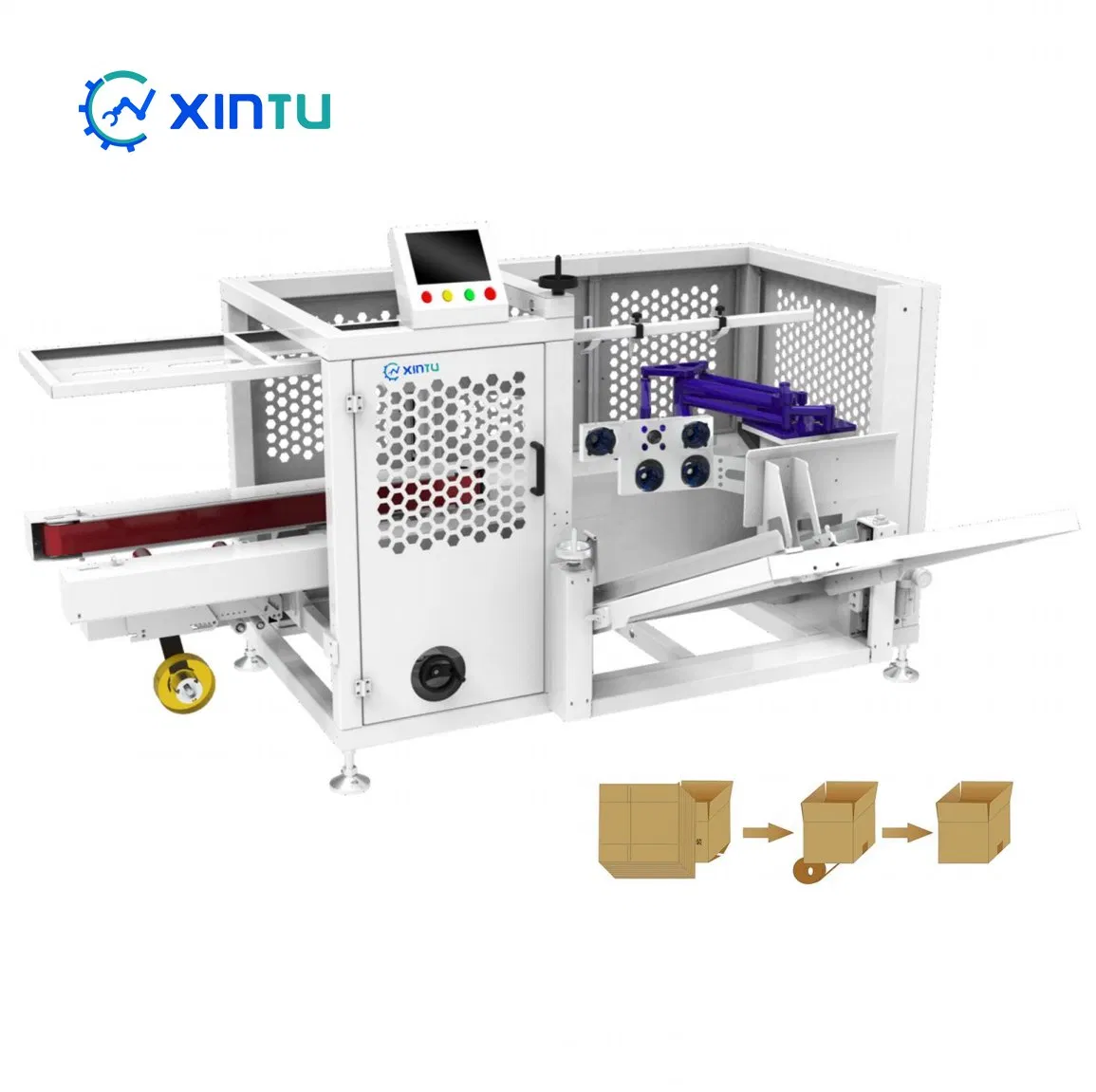

Compact Servo Case Erector: High-Automation Solution

Integrated with a robotic arm for full automation—cuts labor costs drastically. Runs smoothly with low noise, protecting cartons and keeping your production floor quiet. Features an inclined unpowered carton silo for non-stop refilling. Seamlessly integrates with upstream/downstream equipment to simplify line layout. Servo motor drives dual-side belts for synchronous operation, ensuring square cartons every time.

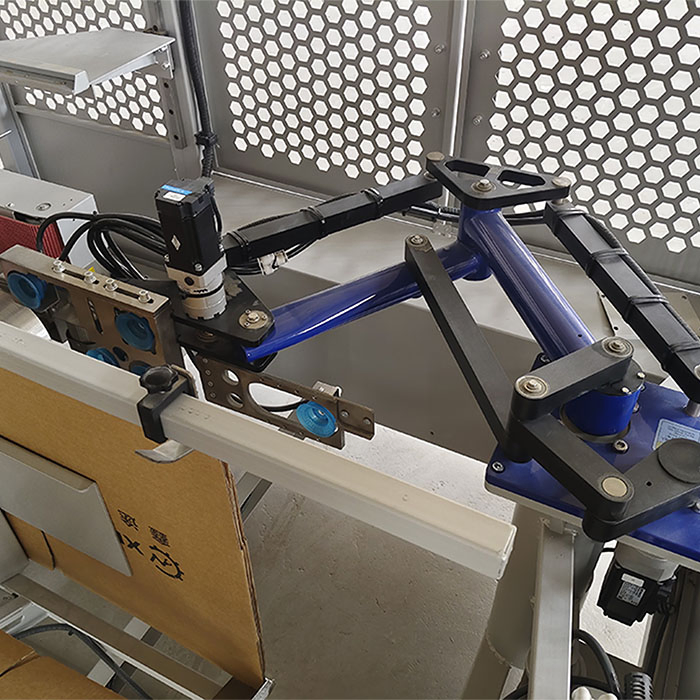

Robotic Arm Design: Precise, flexible, and fast unboxing using suction cup technology.

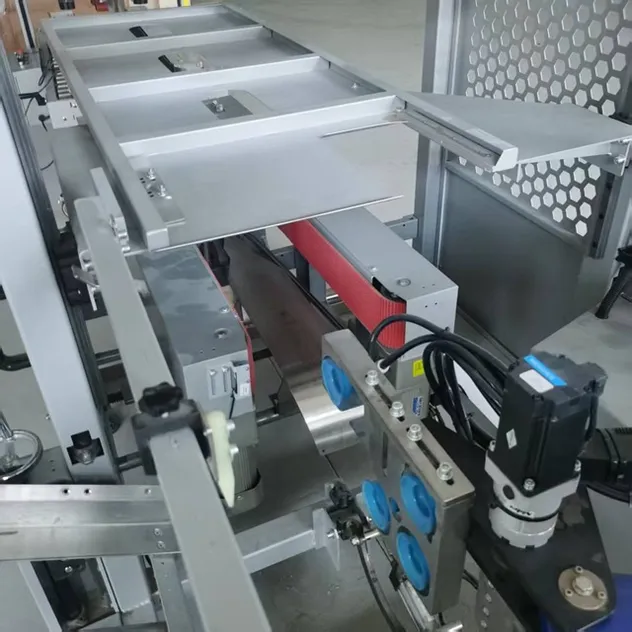

Servo Drive Accuracy: 24/7 non-stop operation with stable performance and long service life.

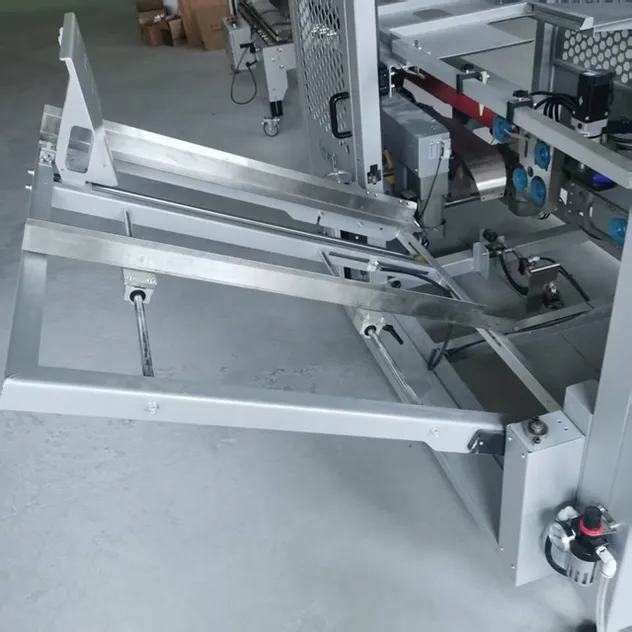

Inclined Storage Rack: Cases feed automatically via gravity—energy-saving and eco-friendly.
Compact Footprint: Saves valuable factory space—ideal for efficient packaging lines.

📏 Technical Specifications

Item No.	TKXS-400	TKXM-500	TKXL-650
Power	380V / 50HZ 2KW	380V / 50HZ 2KW	380V / 50HZ 5KW
Packing Speed	15-25 pcs/min	15-20 pcs/min	15-20 pcs/min
Compressed Air	0.6-0.8 mpa/min	0.6-0.8 mpa/min	0.6-0.8 mpa/min
Machine Size	240190140cm	260190140cm	230168210cm
Machine Weight	500kgs	600kgs	700kgs
Carton Length	145-400mm	280-500mm	280-650mm
Carton Width	85-350mm	150-400mm	150-500mm
Carton Height	150-350mm	150-400mm	150-500mm

🛠️ After Sales Service

Support & Installation Policy

• 1-Year Quality Guarantee: Complete peace of mind for your investment.

• 24/7 Technical Support: Online assistance whenever your production requires it.

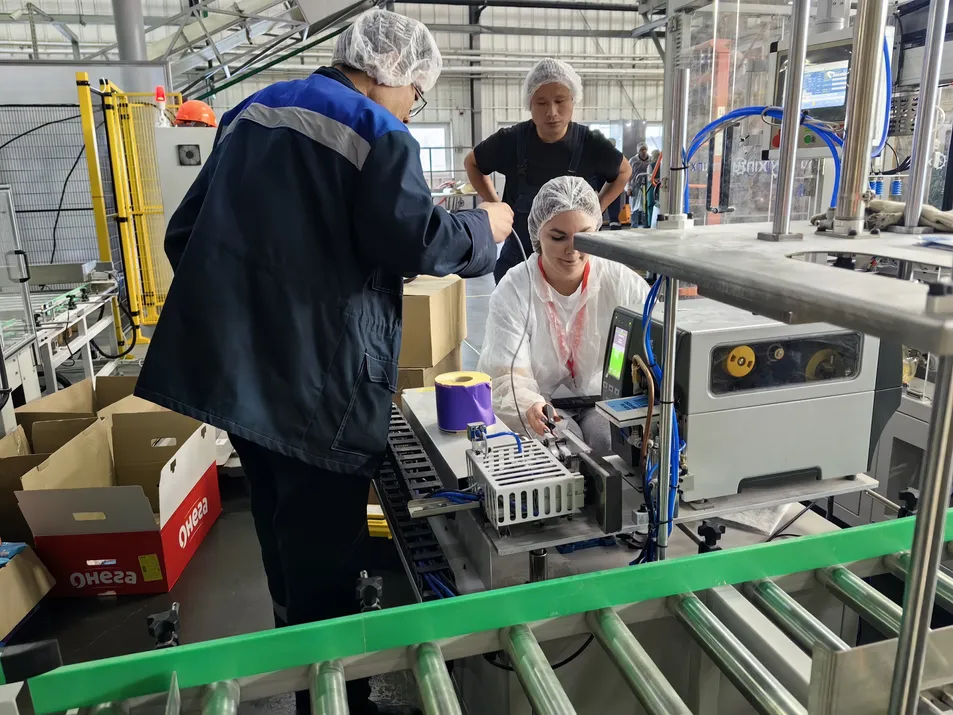

• Global Installation: We provide on-site installation services. For international customers, we offer free remote technical guidance. If on-site technicians are requested, travel expenses (airfare, accommodation) plus a daily service fee are covered by the client.

❓ Frequentely Asked Questions

Will the gripper work with my specific product?

Absolutely. You can send us your product samples, and we will perform testing with our suction grippers to ensure a perfect match and reliable operation.

What is the maximum packaging speed of this machine?

The standard speed is 15-25 cycles per minute. Since the gripper can pick multiple products or an entire layer per cycle, the throughput is highly efficient. For higher demands, extra modules can be added.

Is the machine difficult to operate?

No, it is designed for ease of use. It features a PLC touch screen with pre-programmed conditions. You simply select the required mode. Our engineers also provide remote training and walk-throughs.

How much maintenance is required?

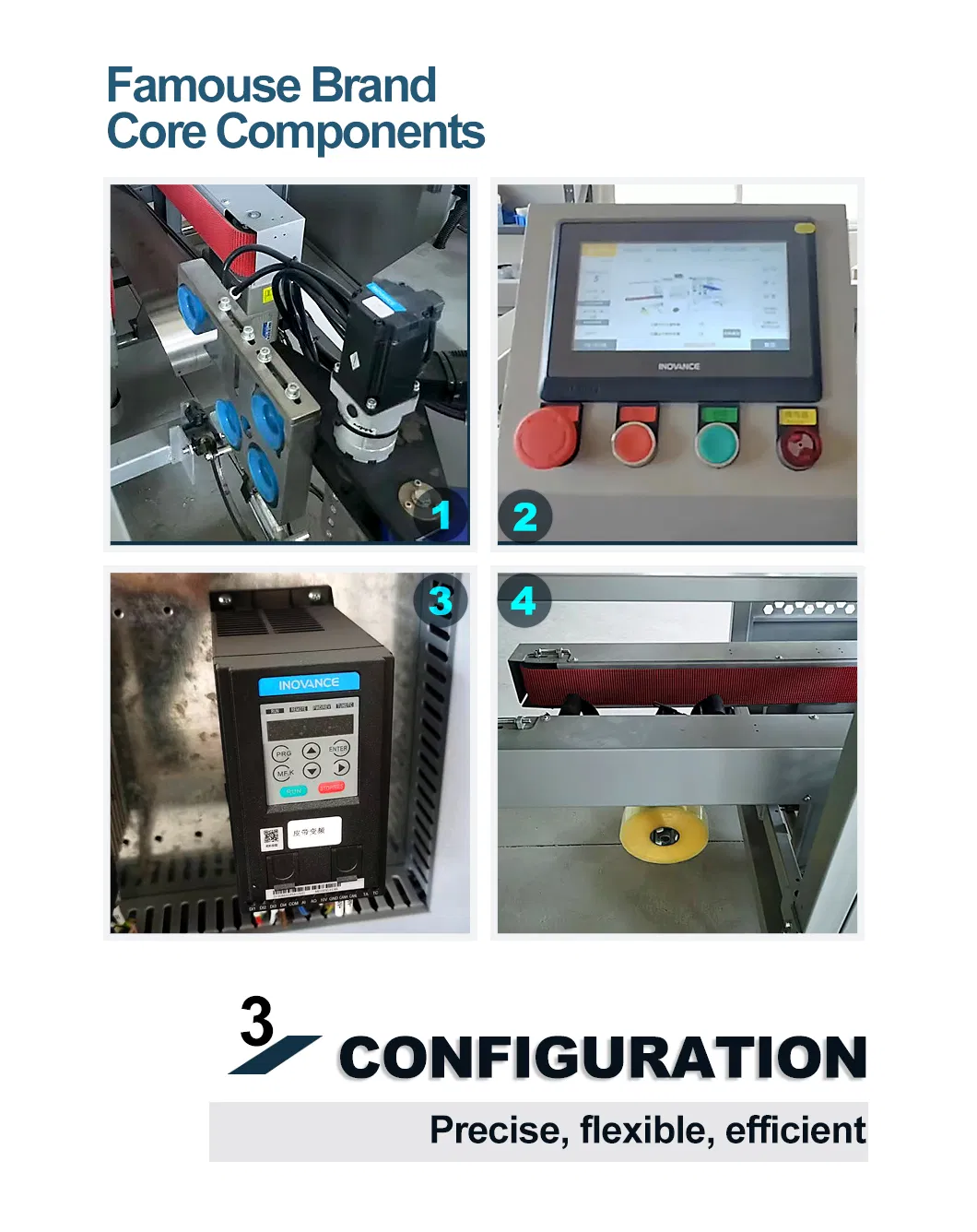

Maintenance is minimal. We use high-quality core components from trusted brands. Only routine checks and occasional replacement of standard wear parts are necessary to keep it running stably.

What is the typical production lead time?

Production usually takes between 30 and 60 days. This depends on your specific customization requirements and machine configuration. We provide a precise timeline upon order confirmation.

How do I integrate this into my existing production line?

Our case erector is designed for seamless integration with upstream and downstream equipment. Its compact footprint and flexible robotic arm make it easy to adapt to various floor layouts.
