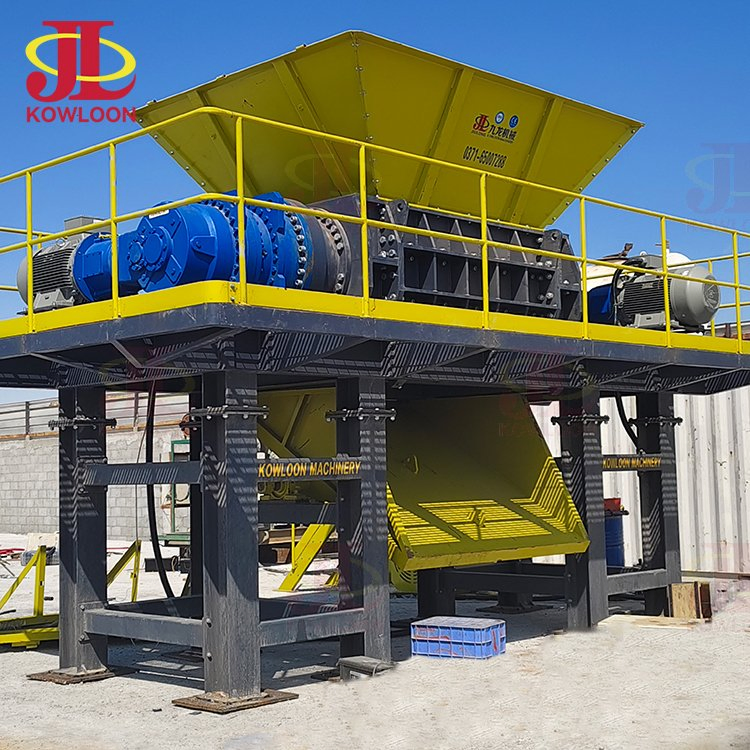

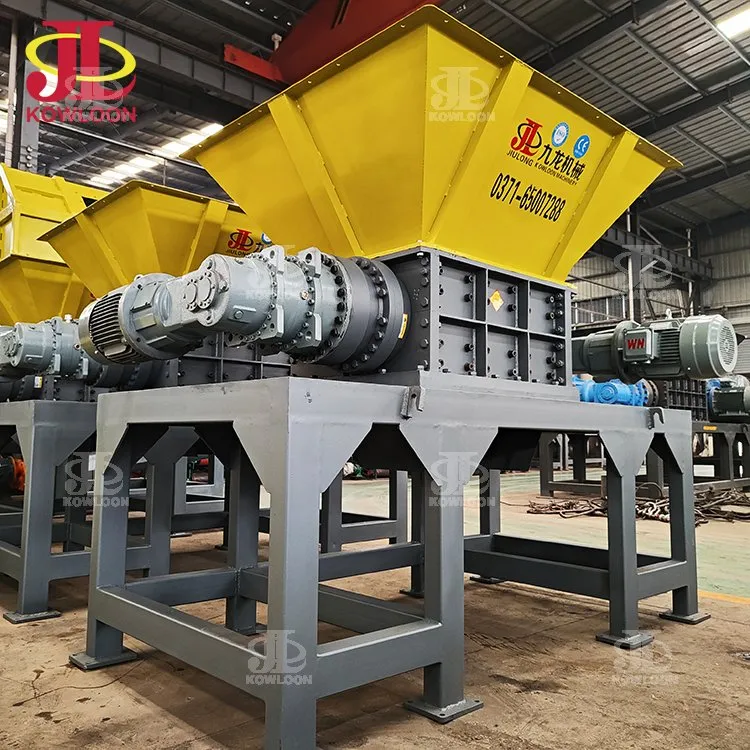

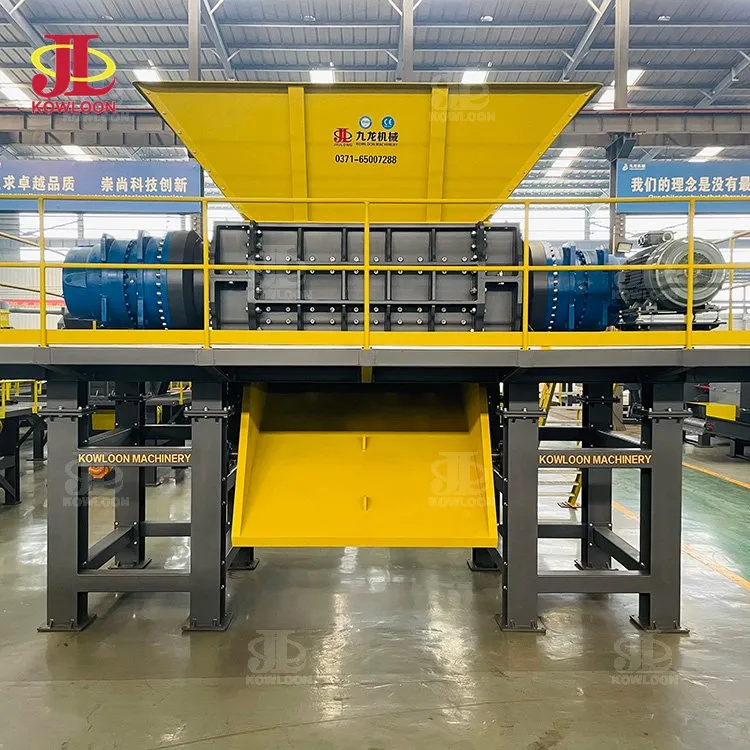

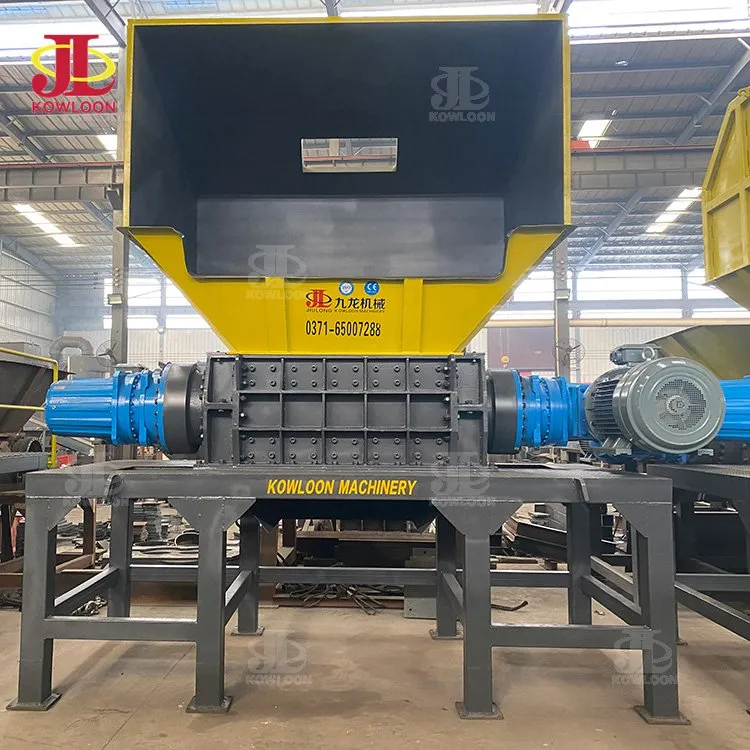

The double shaft shredder machine is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components depending on the material and final size requirements. These shredders are equipped with planetary reducers and brand motors for highly reliable performance and low maintenance cost.
| Model | JLSS1000 | JLSS1200 | JLSS1500 | JLSS2000 |
|---|---|---|---|---|
| Motor Power | 15kw+15kw | 22kw+22kw | 55kw+55kw | 90kw+90kw |
| Chamber Size | 940x725mm | 1120x1000mm | 1450x1100mm | 1920x1250mm |
| Rotary Speed | 8-18rpm | 8-18rpm | 8-18rpm | 8-18rpm |
| Blade Dia. | 360mm | 360mm | 530mm | 560mm |
| Weight | 6000kg | 12000kg | 18000kg | 29000kg |

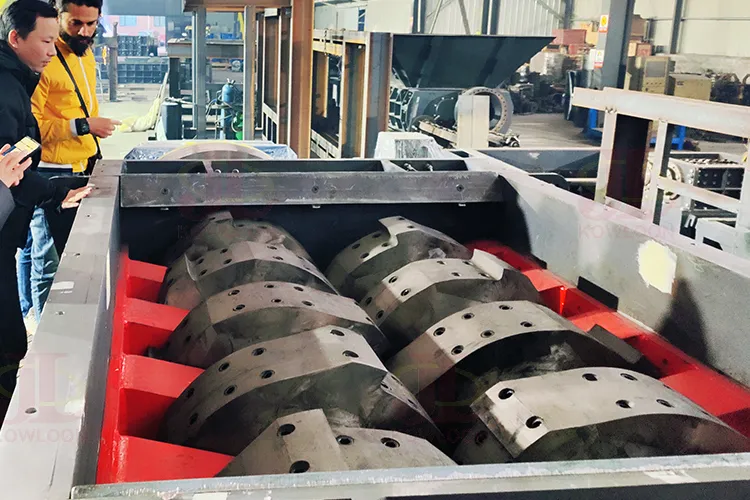

Options include 55Crsi, 9Crsi, and Cr12mov. Custom blade shapes and thicknesses are provided to optimize cutting for different materials.

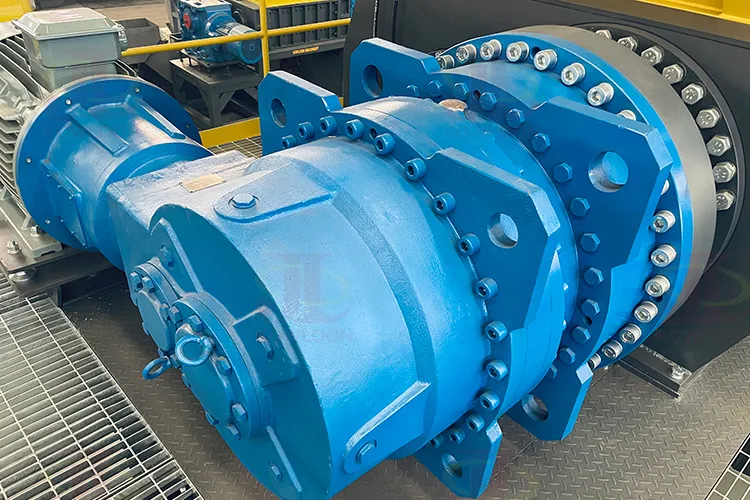

High torque, low noise, and steady performance. Compact design ensures efficient load distribution and enhanced life-span.

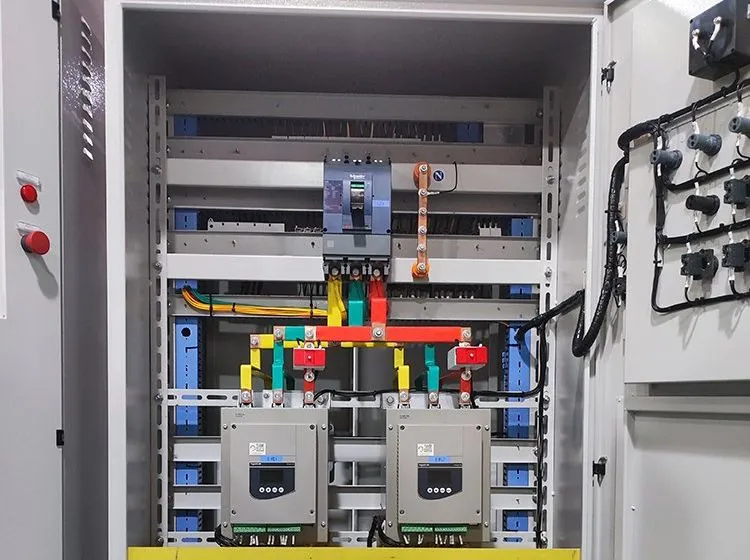

Adopts Siemens or Schneider electrical components with automatic reverse function when overloaded to protect the motor.

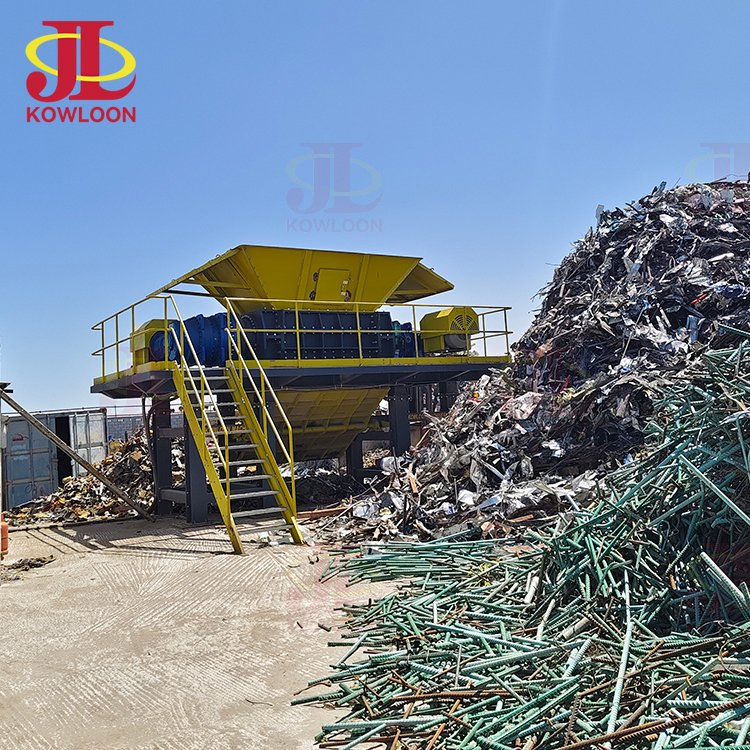

Our twin shaft shredders can easily process various raw materials including:
