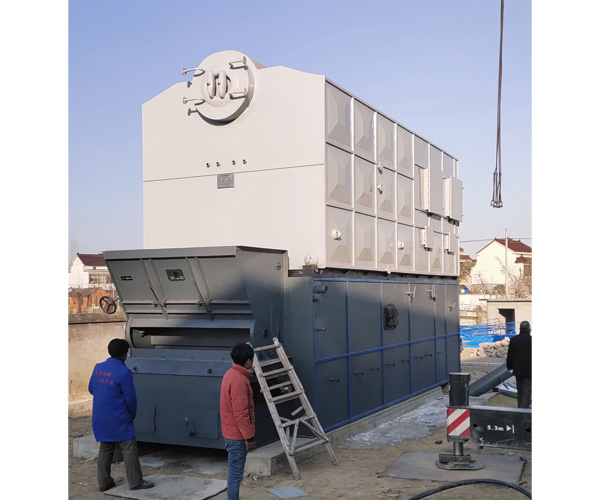

Industrial Biomass Boiler Wood Pellet Steam Boiler Price

Basic Information

Model NO.

DZH

Installation

Packaged Boiler

Structure

Water Tube

Media

Steam

Water Circulation

Natural Circulation

Drum Placement

Vertical Boiler

Pressure

Low Pressure

Manufacturing Level

A

Burning Style

Chamber Combustion Boiler

Usage

Industrial, Home, Vehicle, Power Station

Rated Evaporation

0.5-4t/H

Rated Pressure

1.0/1.25/1.6MPa

Fuel Type

Biomass Pellet, Wood Sawdust, Bamboo Chip, Wood Block

HS Code

8402120090

Product Description

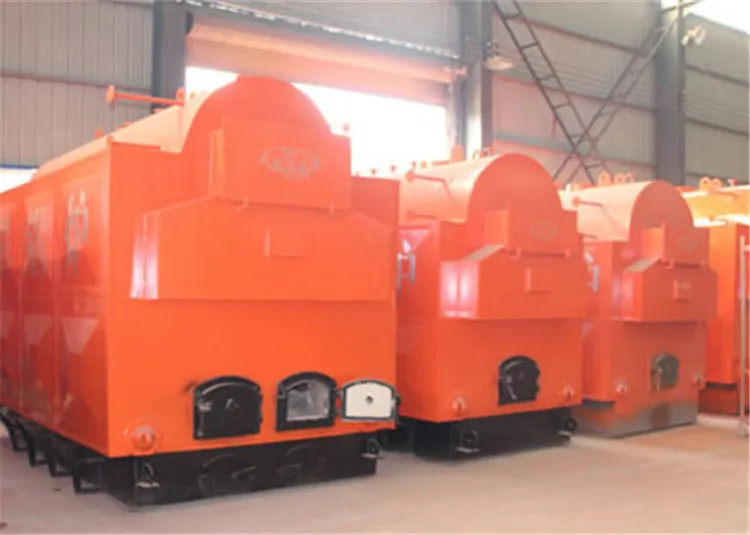

Industrial biomass boiler wood pellet steam boiler

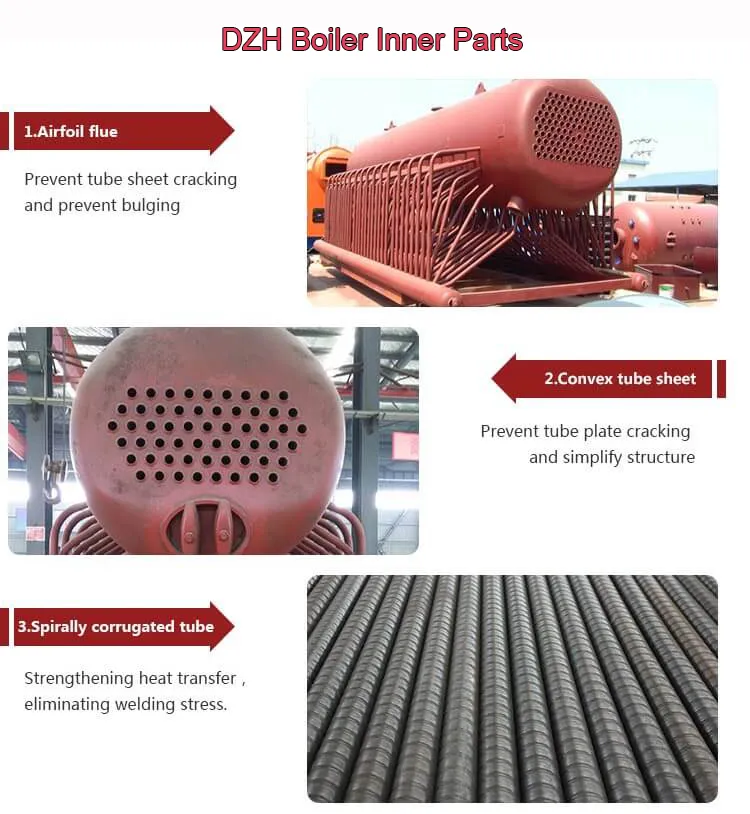

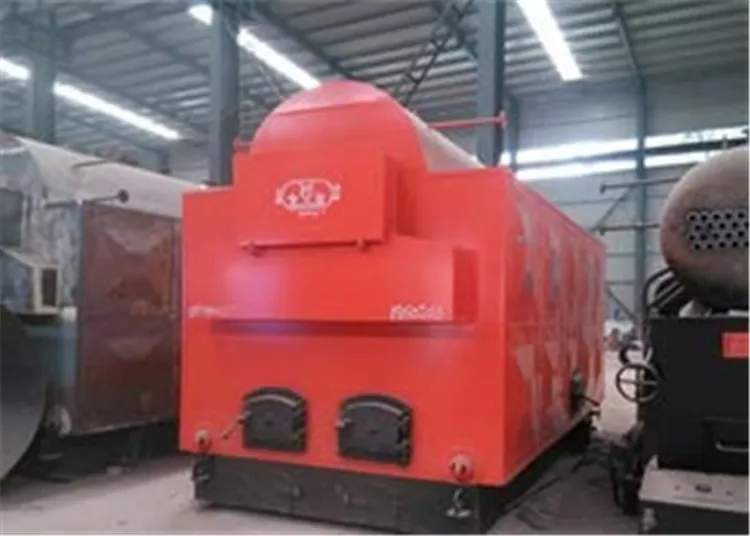

The manual operation type boiler belongs to the DZH series. It is a horizontal type, hand-fed fuel system designed for cost-effectiveness and reliability. Its main features include:

Efficient Spirally Corrugated Tube: Increases actual capacity by 10-15% compared to nameplate ratings.
Large Volume Hearth: Improves boiler efficiency and significantly reduces fuel consumption.
Advanced Arch Technology: Features a dust separation reversing chamber to lower original dust discharge concentration for environmental protection.
Optimized Steam Separator: Faciliates vapour gravity separation, keeping steam humidity lower than 1% (exceeding international standards).

Technical Specifications

Model	DZH0.5	DZH1	DZH2	DZH4
Rated evaporation capacity (t/h)	0.5	1	2	4
Working pressure (Mpa)	0.7/1.0	0.7/1.0/1.25	0.7/1.0/1.25/1.6	1.25/1.6
Rated steam temperature (ºC)	170/184	170/184/194	170/184/194/204	194/204
Feed water temperature (ºC)	20	20	20	20
Thermal Efficiency (%)	80	80	80	80
Fuel consumption (Kg/h)	76	150	301	602
Weight (t)	8	12	15	22

Manufacturing Excellence

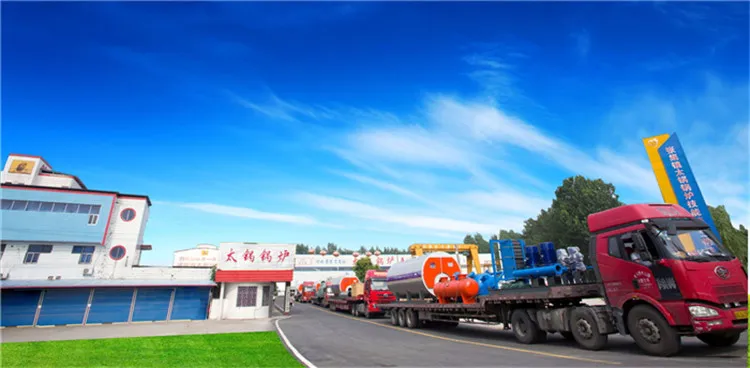

Founded in 1976, this Grade A industrial boiler manufacturer covers an area of 60,000 m², with a construction area of 45,000 m². Equipped with independent physical and chemical laboratories, the facility produces various industrial boilers including Gas & Oil Fired, Coal Fired, Biomass Fired, Thermal Oil Boilers, and Steam Generators.

Packing & Service

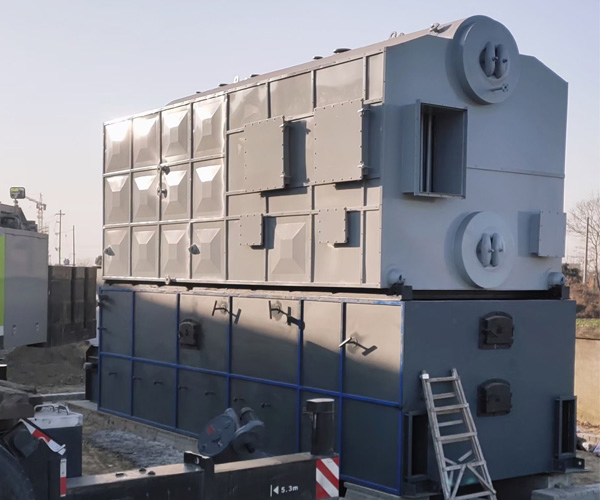

Small boilers are transported in standard containers, while larger units utilize Open-top or Flat Rack containers to ensure safe delivery.

Service Commitment:

Pre-Sales: Professional inquiry support and factory visit arrangements.
After-Sales: Overseas engineering service available, including installation training and operational guidance.

Frequently Asked Questions

How to choose a reliable boiler?

Select a Grade A manufacturer with clear specifications for capacity, fuel, and pressure. Quality and after-sales service are as vital as the price.

What are your primary boiler products?

Our range includes steam boilers, hot water boilers, thermal oil boilers, and pressure autoclaves, powered by gas, oil, diesel, coal, or biomass.

Which industries use these biomass boilers?

They are widely used in paper mills, sugar mills, printing, food processing, textile mills, garment industries, and power plants.

What kind of fuels can the DZH series burn?

It is highly versatile, capable of burning biomass pellets, wood sawdust, bamboo chips, and wood blocks.

How is the steam quality ensured?

Through optimally designed steam-water separating equipment, we keep steam humidity lower than 1%, ensuring high-purity steam for industrial use.

What maintenance is required for manual boilers?

The DZH series is designed for "less trouble" operation. Regular cleaning of the hand-fed hearth and inspection of the fire tubes ensure long-term efficiency.
