Automatic Grade
Automatic
Forming Species
Carton Forming
Packing Speed
5-25PCS/Min
Machine Size
2.2*1.8*1.45m
Erecting Method
Robot Arm

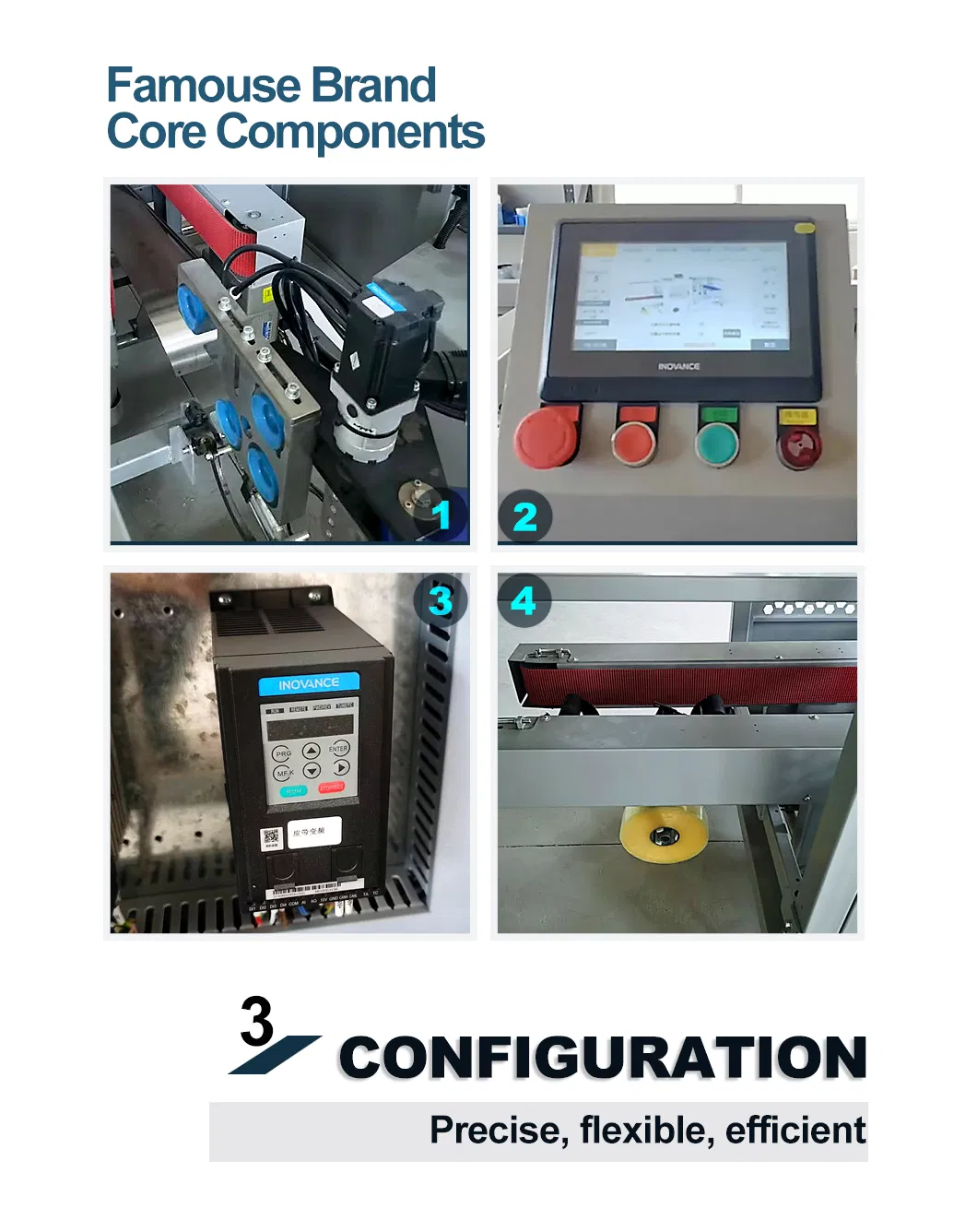

Core Components
Servo Motor, Robotic Arm, PLC

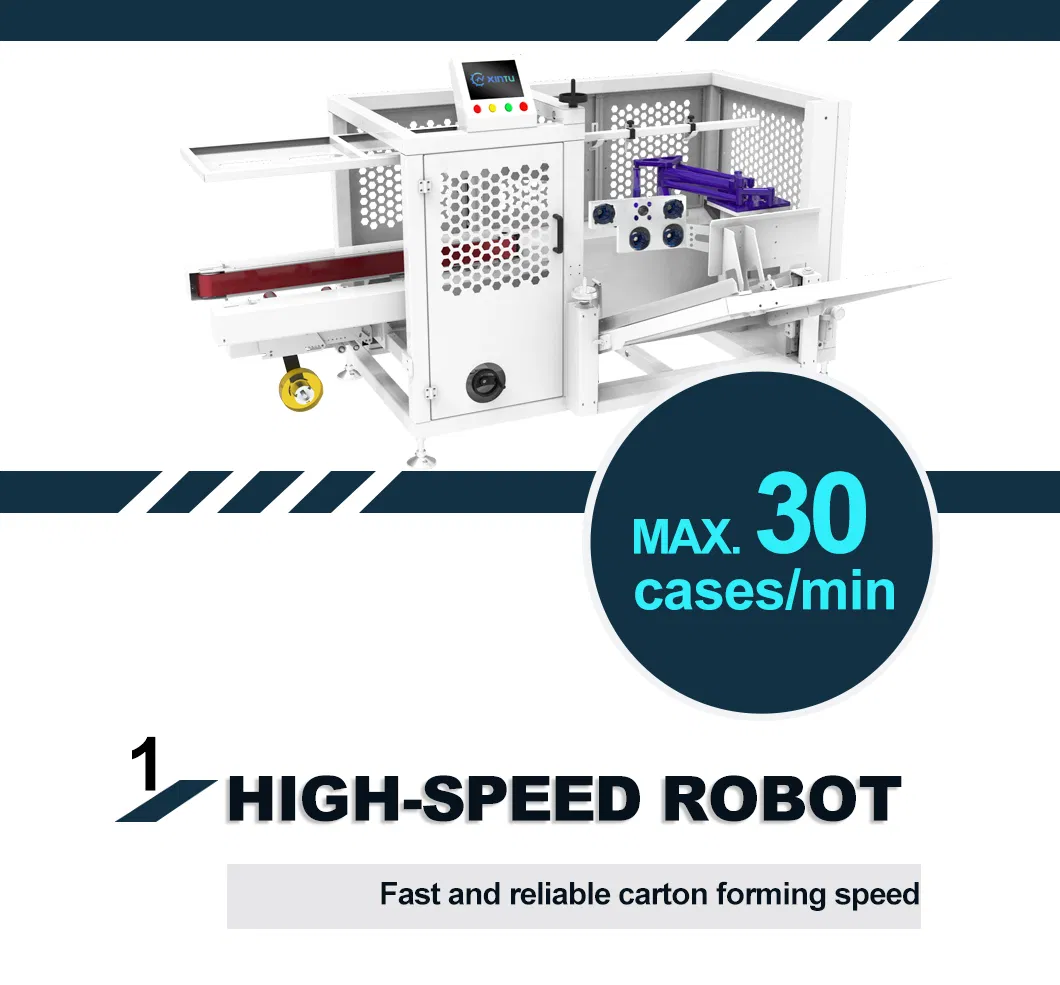

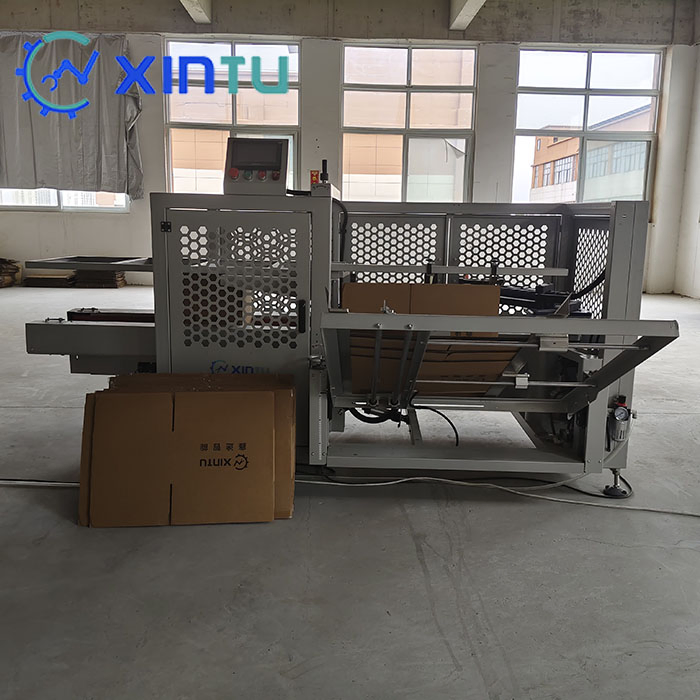

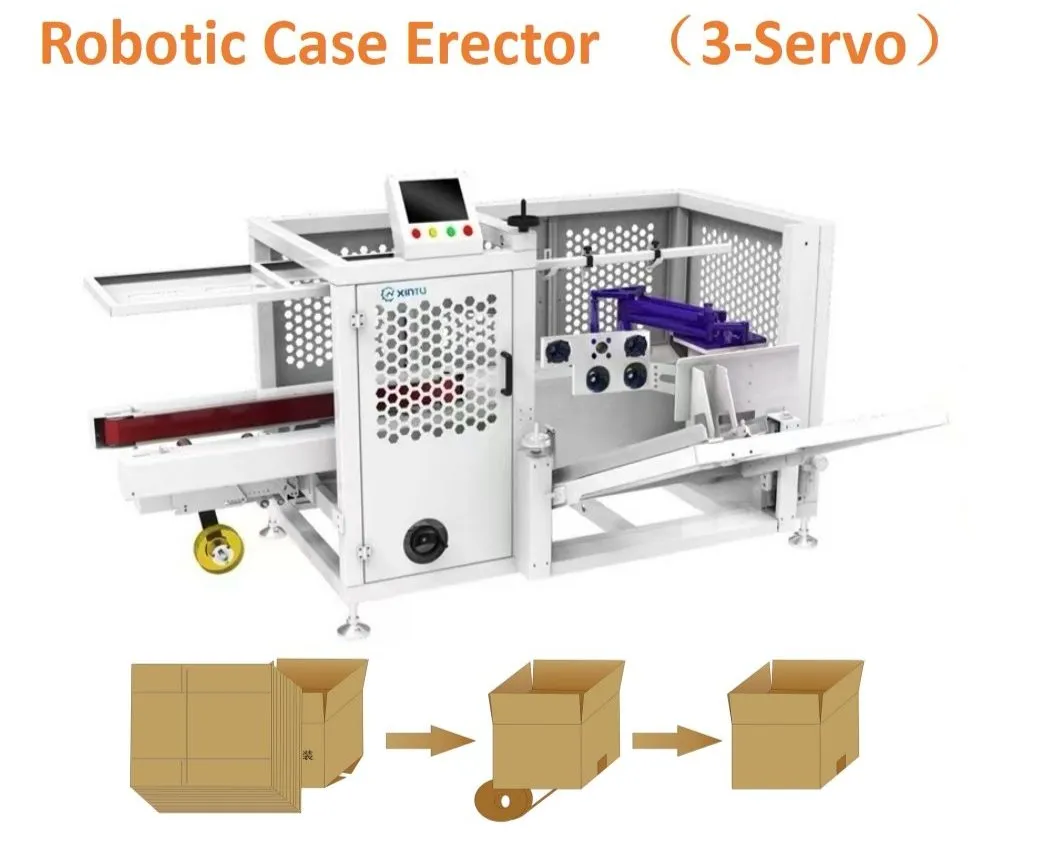

Compact Servo Case Erector: High-Automation, Low-Noise Solution

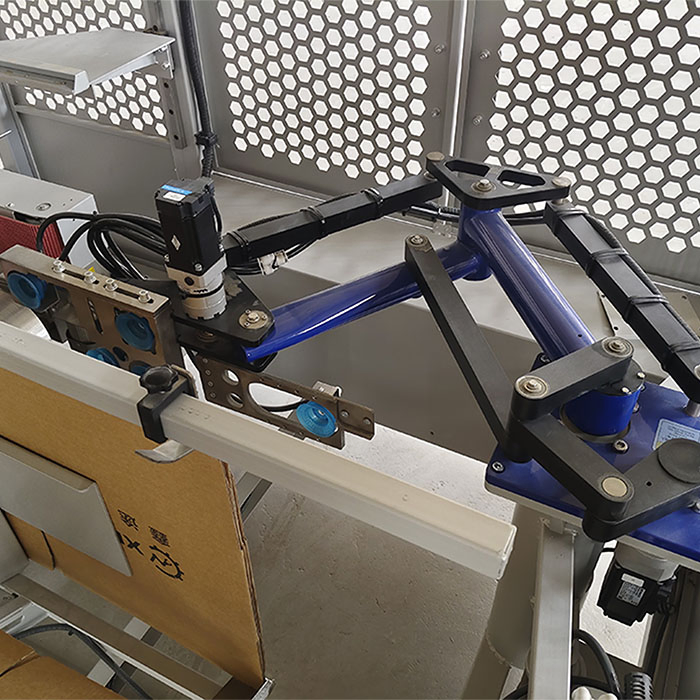

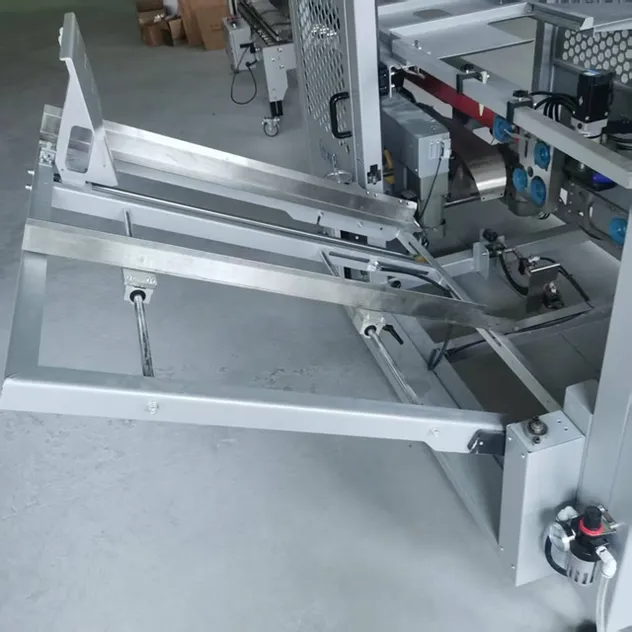

Integrated with a robotic arm for full automation—cuts labor costs drastically. Runs smoothly with low noise, protecting cartons and keeping your production floor quiet. Features an inclined unpowered carton silo for non-stop refilling.

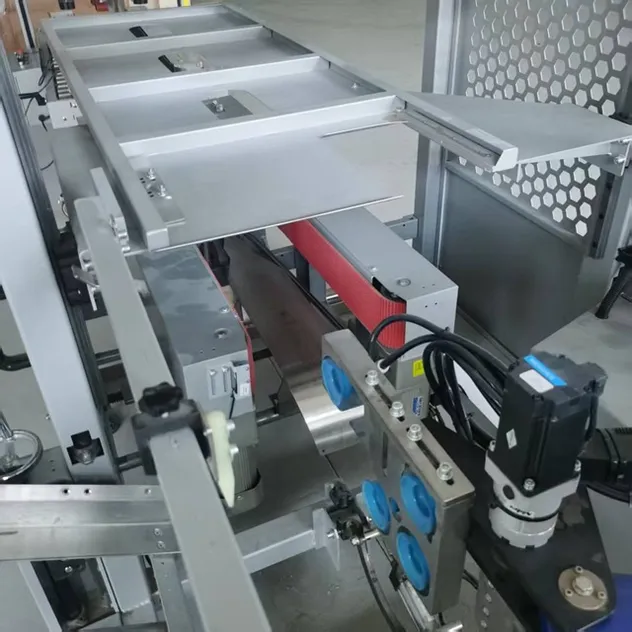

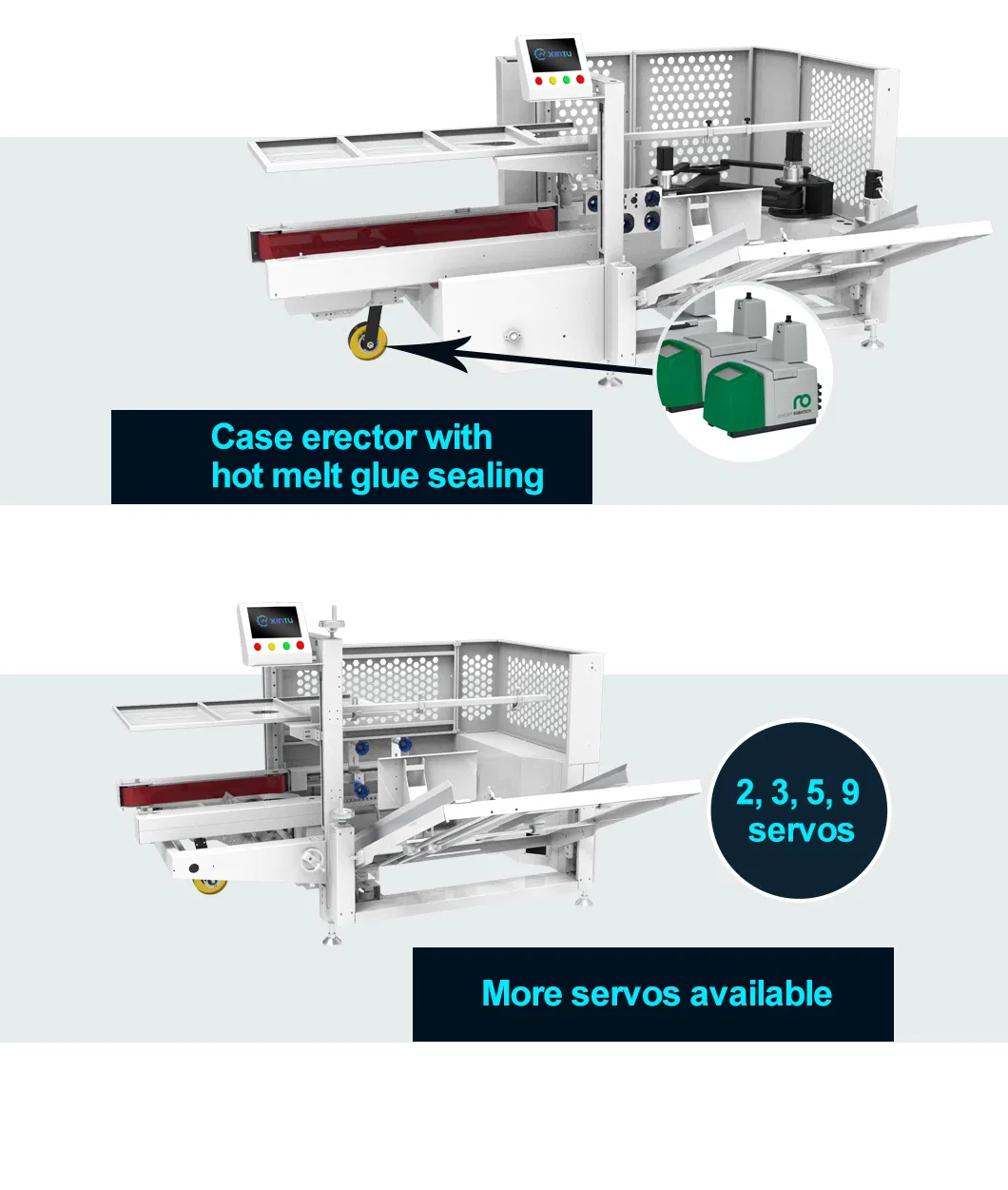

Servo motor drives dual-side belts for synchronous operation, ensuring square cartons every time. Compact footprint saves valuable factory space—ideal for efficient packaging lines.
| Item No. |
TKXS-400 |
TKXM-500 |
TKXL-650 |
| Power |
380V / 50HZ 2KW |
380V / 50HZ 2KW |
380V / 50HZ 5KW |
| Packing speed |
15-25 pcs/min |
15-20 pcs/min |
15-20 pcs/min |
| Machine size |
240*190*140cm |
260*190*140cm |
230*168*210cm |
| Carton Length |
145-400mm |
280-500mm |
280-650mm |
| Carton Width |
85-350mm |
150-400mm |
150-500mm |
| Carton Height |
150-350mm |
150-400mm |
150-500mm |
After-Sale Policy
1-year quality guarantee for peace of mind.
24/7 online technical support whenever you need it.

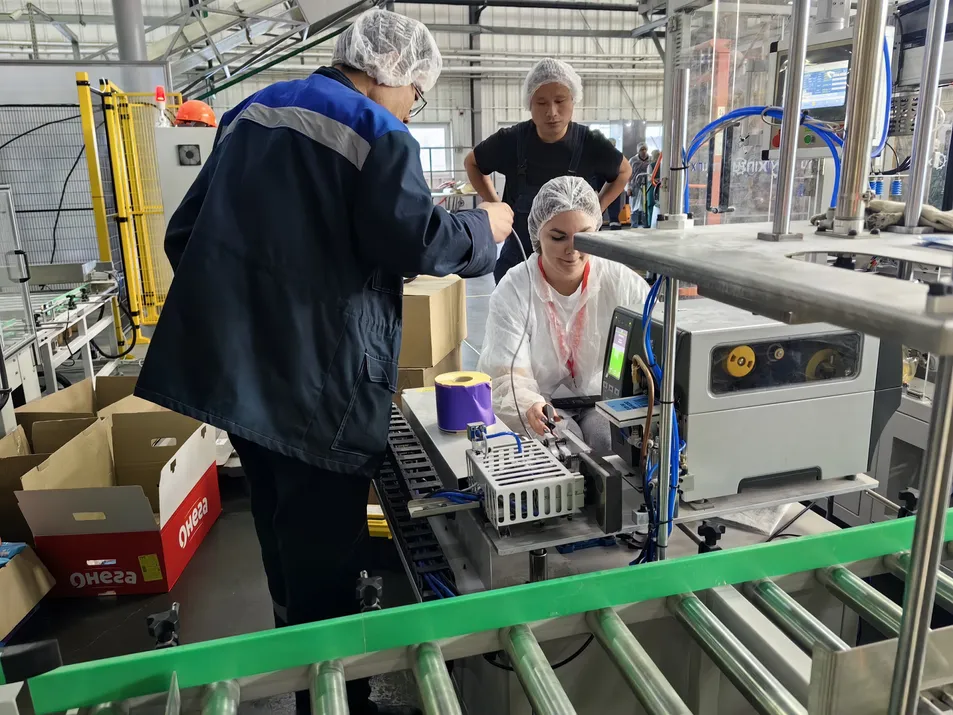

We provide on-site installation services to make things smooth. For overseas customers, we offer free online technical guidance at no extra cost. On-site technicians are available upon covering basic travel expenses and a daily fee.
?
Frequently Asked Questions
Will your gripper work well with my product?
Absolutely—we just need a little help to confirm! Send us your product, and we'll test it with our suction gripper to make sure it's a perfect match.
What's the maximum packaging speed?
The gripper picks multiple products per cycle—usually a full layer of cartons. Performance can be boosted by adding more gripper modules if required.
Is it hard to operate?
Not at all! It features a PLC touch screen with pre-programmed working conditions. Our team can also walk you through any setup remotely via online control.
How much maintenance does it need?
Very little! Using high-quality core components from trusted brands ensures stability. You only need simple routine checks on wear parts.
How do I place an order?
Reach out via email or online message. We'll respond promptly to answer questions, share details, and guide you through the process.
What's the production lead time?
Production time is usually 30–60 days, depending on specific requirements and customizations.
