Product Description

Basic Specifications

Model NO.

DZH

Installation

Packaged Boiler

Structure

Water Tube

Media

Steam

Water Circulation

Natural Circulation

Pressure

Low Pressure

Manufacturing Level

Usage

Industrial, Home, Vehicle, Power Station

Rated Evaporation

0.5-4t/H

Fuel Type

Biomass Pellet, Wood, Bamboo, Wood Block

Thermal Efficiency

80%

HS Code

8402120090

Product Description

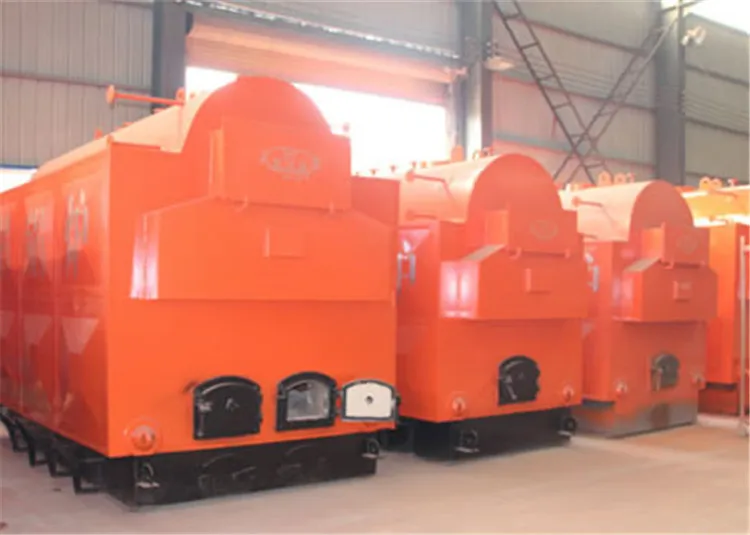

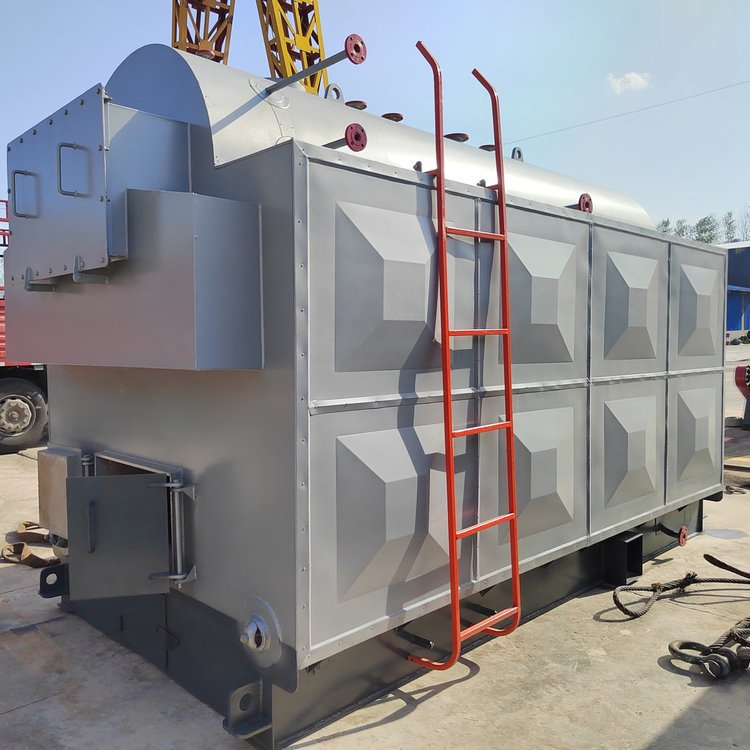

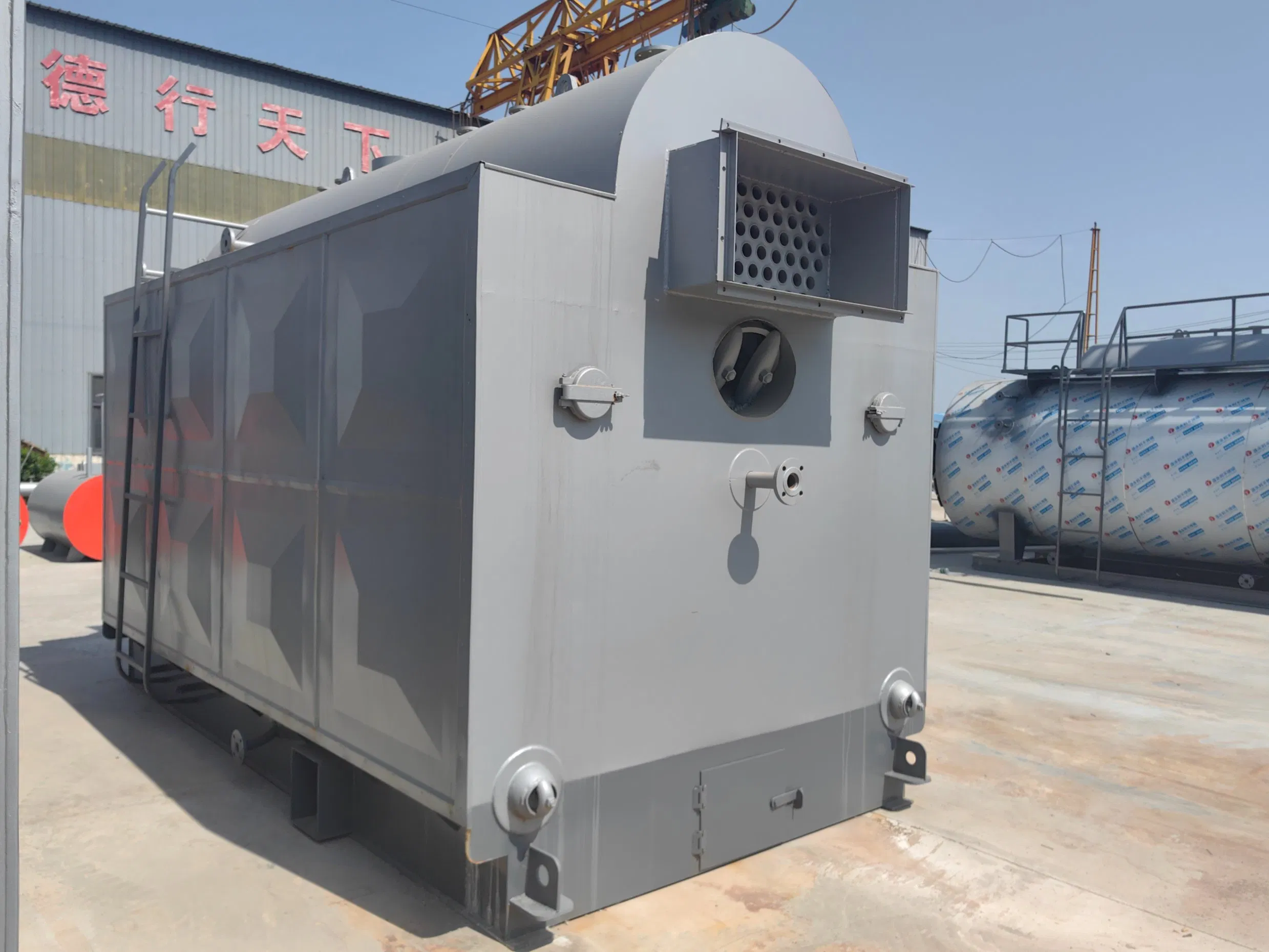

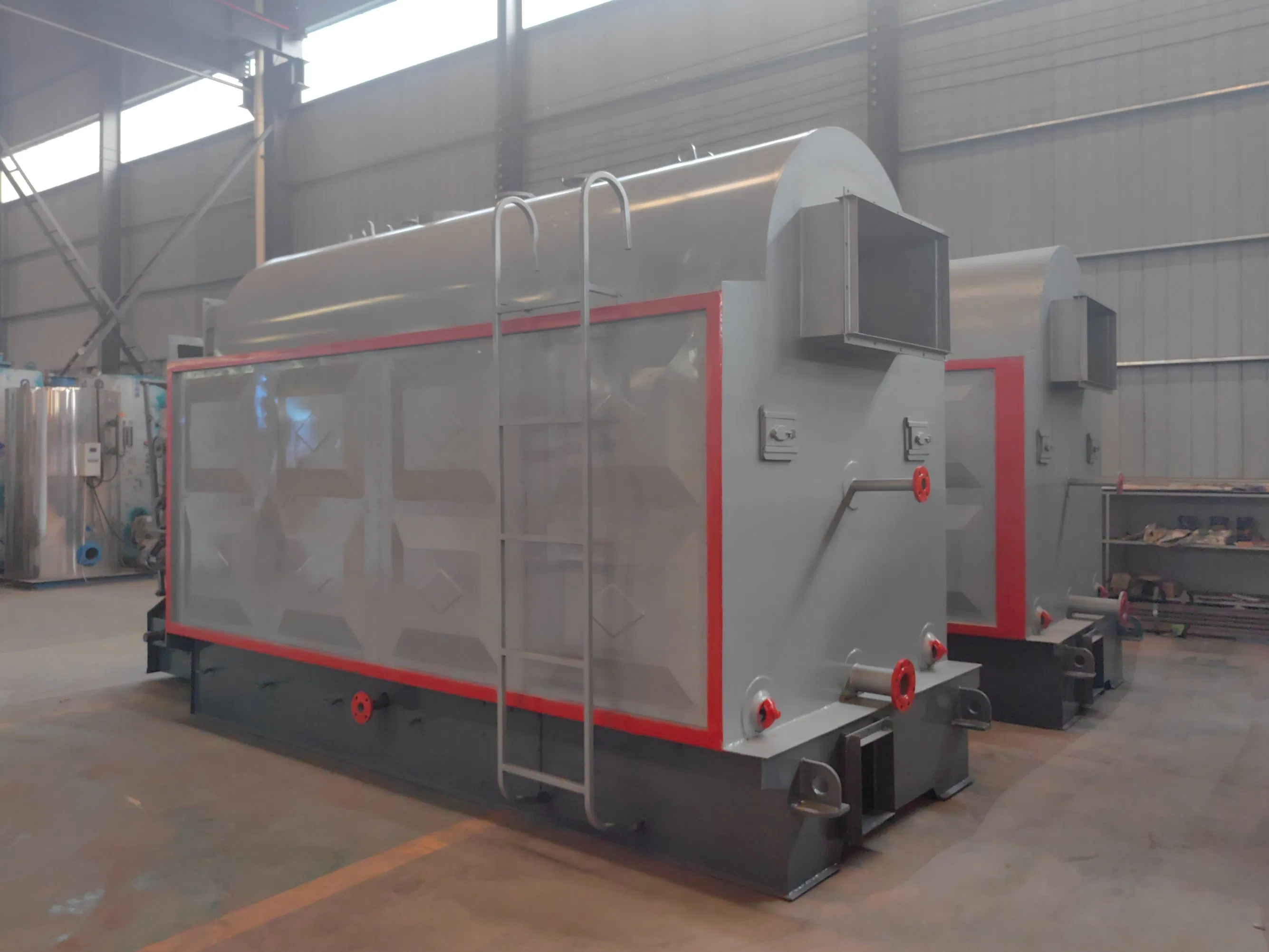

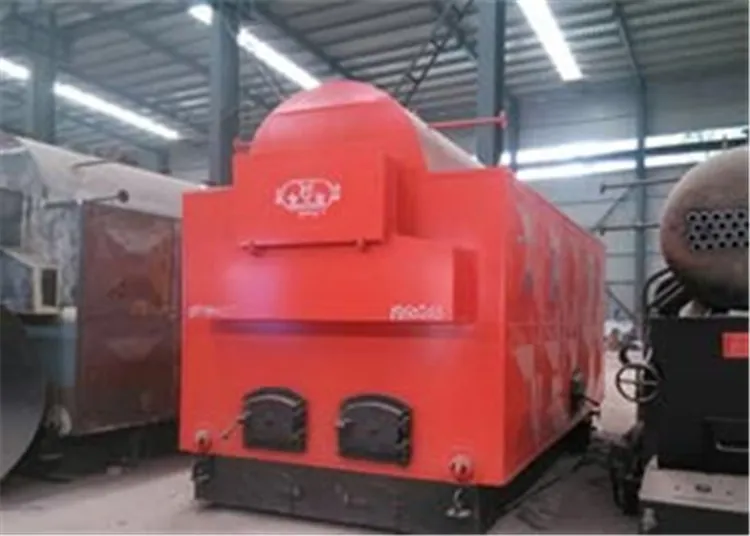

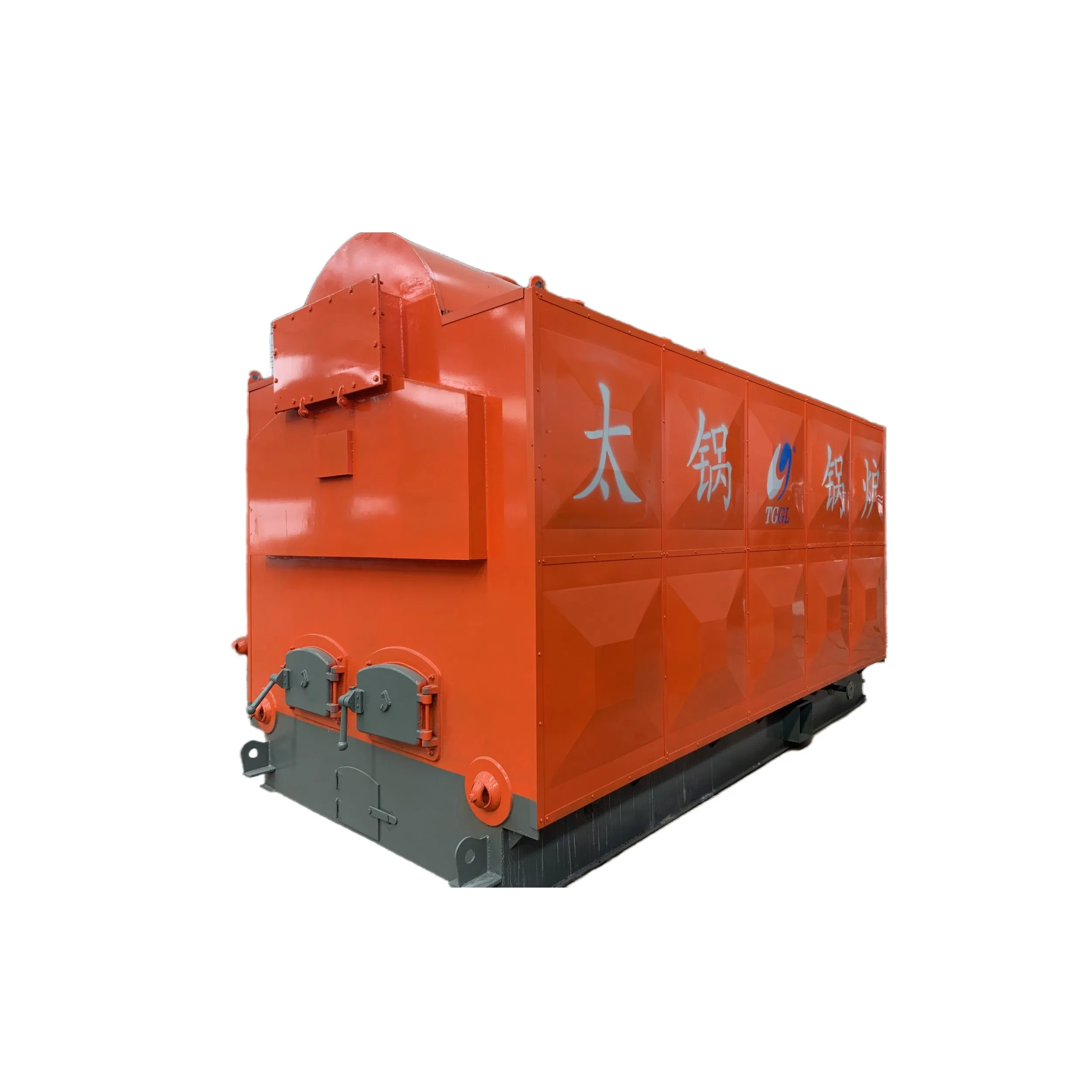

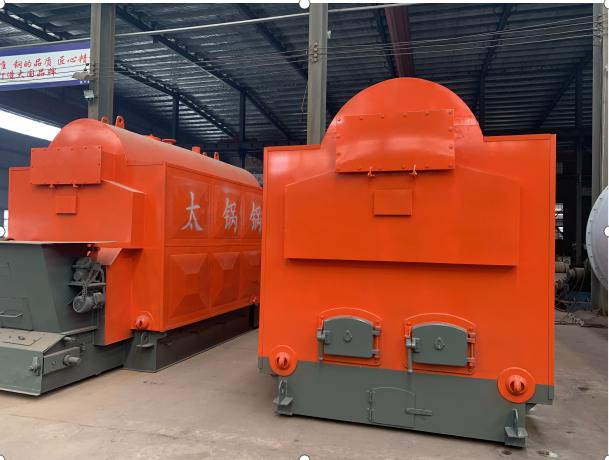

Manual operation type boiler belong to DZH series boiler. Its main features include: horizontal type, manual fuel feeding with high reliability for wood chips. This DZH series boiler is highly cost-effective and has been praised by customers for many years.

Efficient Spirally Corrugated Tube: Increases actual capacity by 10-15% compared to nameplate ratings.
Large Volume Hearth: Improves efficiency and significantly reduces fuel consumption.
Advanced Arch Technology: Features a dust separation reversing chamber to ensure lower original dust discharge and environmental protection.
Optimized Steam Separator: Facilitates vapour gravity separation, keeping steam humidity lower than 1% (International standard is 4%).

Main Technical Features

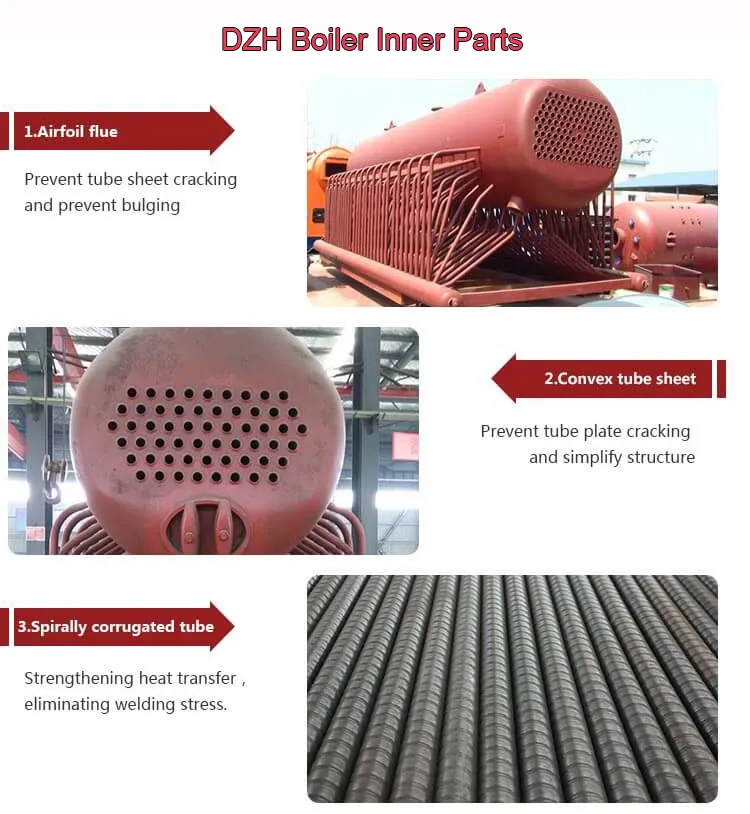

Spirally corrugated fire tubes
Inertia gas-dust separation
New furnace arch with upside down "α" flue gas flow
Wing-shape flue
Steam-Water separating equipment
Unique backwater ejection technology for hot water models

Technical Parameters

Model	DZH0.5-0.7/1.0	DZH1-0.7/1.0/1.25	DZH2-0.7/1.0/1.25/1.6	DZH4-1.25/1.6
Rated Evaporation (t/h)	0.5	1	2	4
Working Pressure (Mpa)	0.7/1.0	0.7/1.0/1.25	0.7/1.0/1.25/1.6	1.25/1.6
Steam Temperature (ºC)	170/184	170/184/194	170/184/194/204	194/204
Grate Area (m2)	1.28	2.1	3.36	5.2
Fuel Consumption (Kg/h)	76	150	301	602
Size (m)	3.2x 2.0x 2.6	4.1x 2.2x 2.9	4.7x 2.3x 3.2	5.6x 2.5x 3.5
Weight (t)	8	12	15	22

Quality & Service

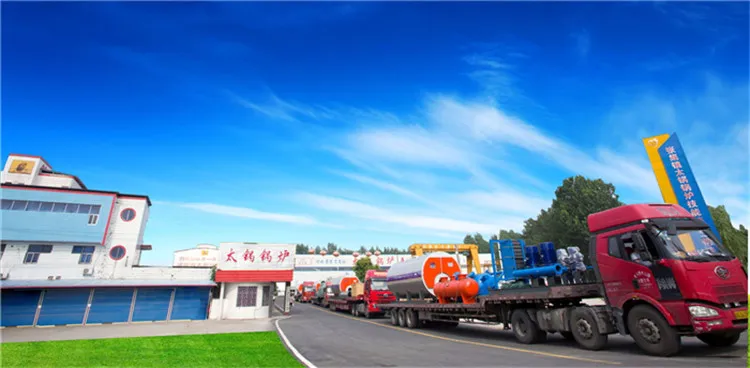

Founded in 1976, we are a professional manufacturer of Grade A industrial boilers. Our facility covers 60,000 m², with independent physical and chemical laboratories to ensure the highest quality standards.

Pre-Sales Service

Inquiry and consulting support
Factory visit opportunities

After-Sales Service

Engineers available for overseas service
Installation and operation training

Frequently Asked Questions

How to buy a good boiler?

Choose a Grade A boiler manufacturer. Ensure specifications like capacity, fuel, and pressure are clear. Remember that quality and service are as important as price.

What are your main products?

We offer Steam boilers, hot water boilers, thermal oil boilers, and pressure autoclaves. Our fuel options include gas, oil, diesel, coal, and biomass.

What fuels can the DZH series use?

The DZH series is designed for biomass pellets, wood sawdust, bamboo chips, and wood blocks, offering high flexibility for various solid fuels.

Why is the steam quality better in this model?

The optimally designed steam separator facilitates gravity separation, achieving steam humidity lower than 1%, which is significantly better than the 4% international standard.

What makes the spirally corrugated tubes special?

The specially designed spirally corrugated tubes increase the boiler's heat transfer efficiency, making the actual capacity 10-15% higher than the rated capacity.

Is the boiler environmentally friendly?

Yes, the furnace arch includes a dust separation reversing chamber, ensuring that the original dust discharge concentration is low to protect the environment.
