Basic Information
Model NO.
Wood Heating Systems
Installation
Packaged Boiler
Water Circulation
Natural Circulation
Drum Placement
Vertical Boiler
Burning Style
Chamber Combustion Boiler
Usage
Industrial, Home, Vehicle, Power Station
Transport Package
Full Container
Product Description

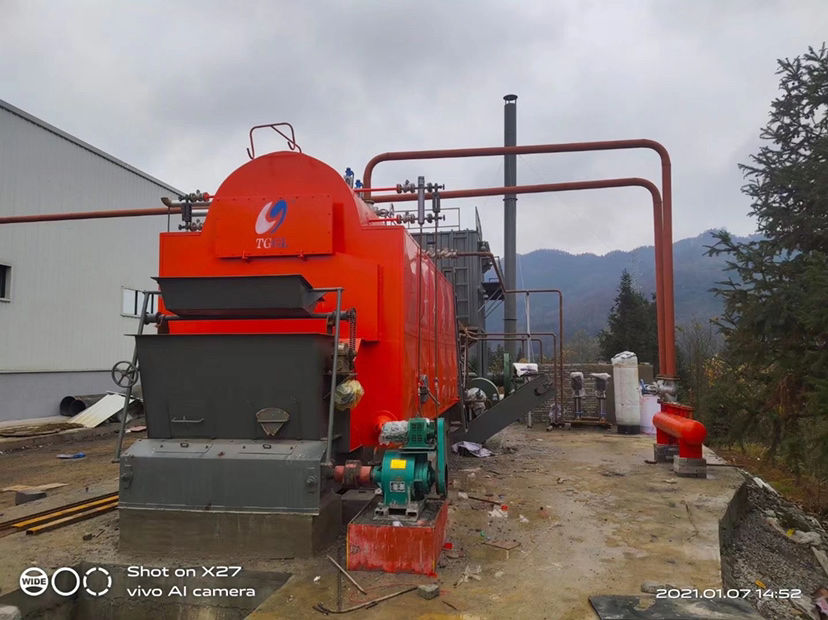

Modern Wood Heating Systems provide effective, cost-efficient commercial heating solutions. By switching from oil heat to systems powered by local wood pellets, you can significantly reduce your carbon footprint. Our systems are designed to be easy to operate, reliable, and use renewable energy sources.

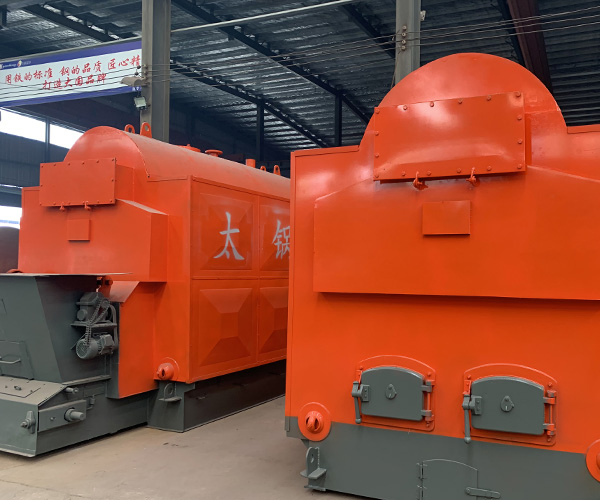

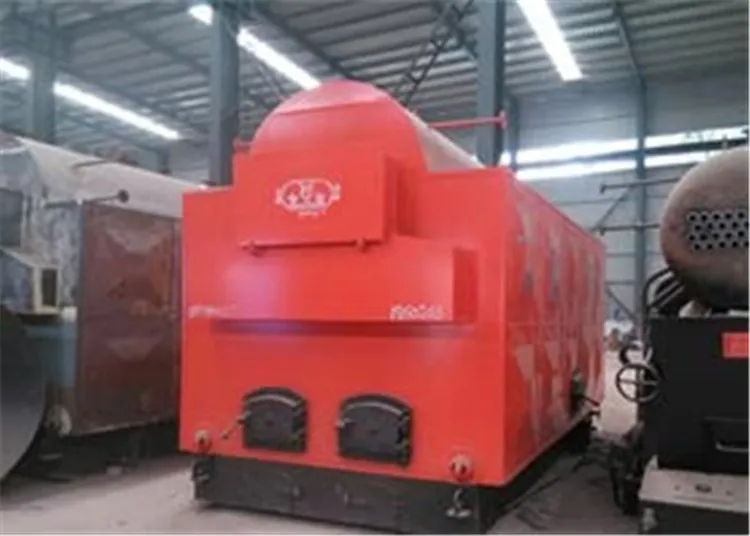

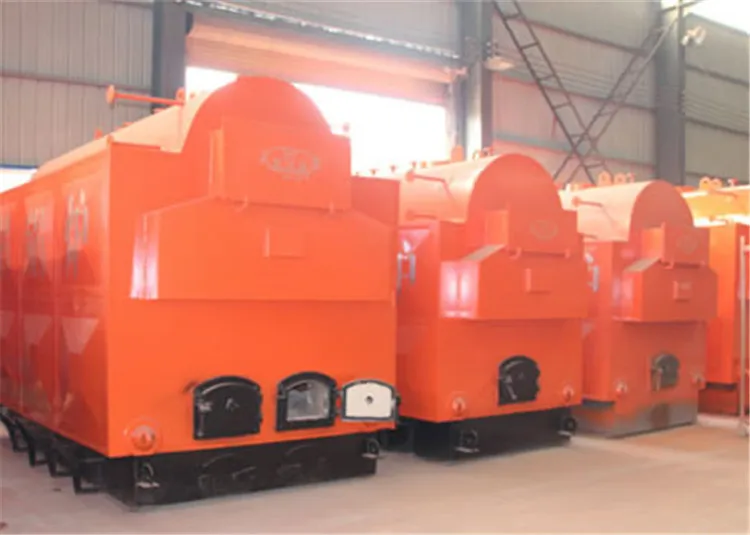

The DZH series manual operation boiler is a horizontal type, hand-fed system praised for its cost-effectiveness and durability over many years of service.
Key Advantages
High Efficiency: Spirally corrugated tubes increase actual capacity by 10-15% over standard ratings.
Fuel Saving: Large volume hearth design improves combustion efficiency and reduces fuel consumption.
Environmental Protection: Advanced arch technology with a dust separation chamber ensures lower emission concentrations.
Superior Steam Quality: Optimized steam separator keeps humidity lower than 1%, exceeding international standards.
Technical Main Features

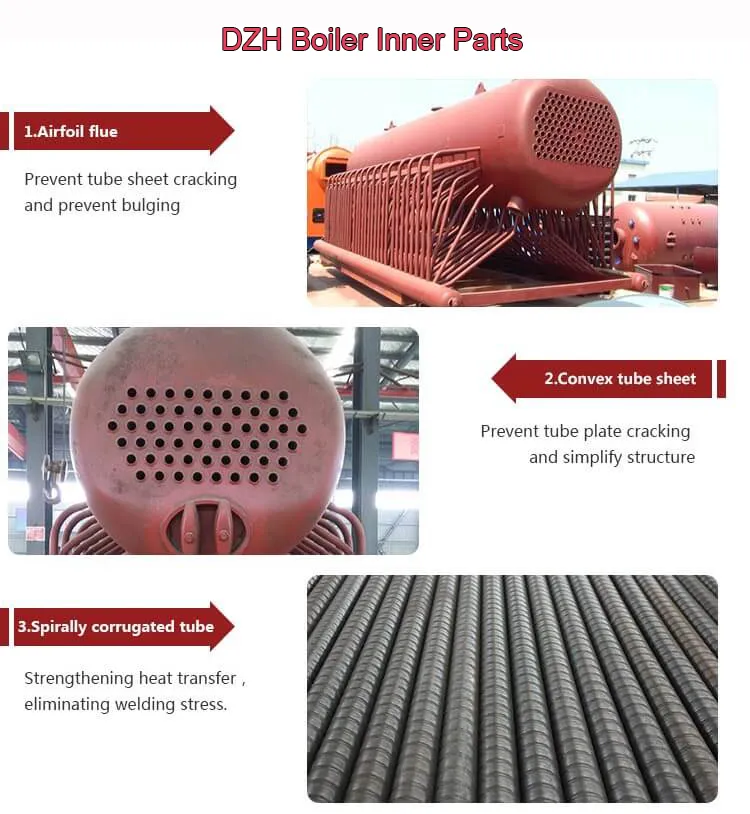

1. Spirally corrugated fire tubes
2. Inertia gas-dust separation
3. New furnace arch with upside down "α" flue gas flow
4. Wing-shape flue design
5. Advanced Steam-Water separating equipment
6. Backwater ejection technology for hot water boilers
Technical Specifications
| Model |
DZH0.5 |
DZH1 |
DZH2 |
DZH4 |
| Rated Evaporation (t/h) |
0.5 |
1 |
2 |
4 |
| Working Pressure (Mpa) |
0.7/1.0 |
0.7/1.0/1.25 |
0.7/1.0/1.25/1.6 |
1.25/1.6 |
| Steam Temp (ºC) |
170/184 |
170/184/194 |
170/184/194/204 |
194/204 |
| Thermal Efficiency (%) |
80 |
80 |
80 |
80 |
| Fuel Consumption (Kg/h) |
76 |
150 |
301 |
602 |
| Weight (t) |
8 |
12 |
15 |
22 |
Manufacturing Excellence

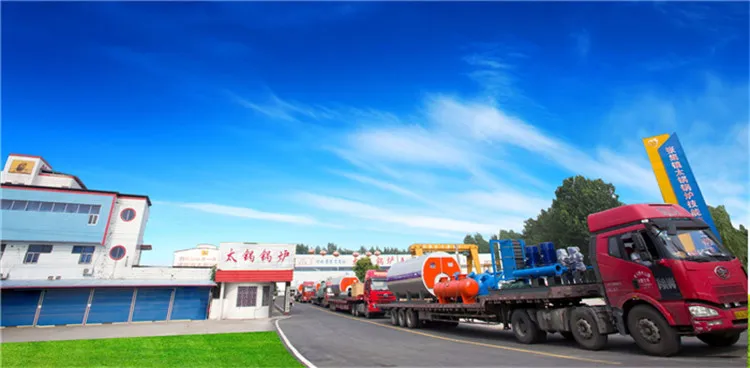

Founded in 1976, we are a professional Grade A industrial boiler manufacturer. Our facility covers 60,000 m², featuring independent physical and chemical laboratories. We offer a wide range of products including Gas, Oil, Coal, and Biomass Fired Boilers, alongside Steam Generators and Pressure Vessels.

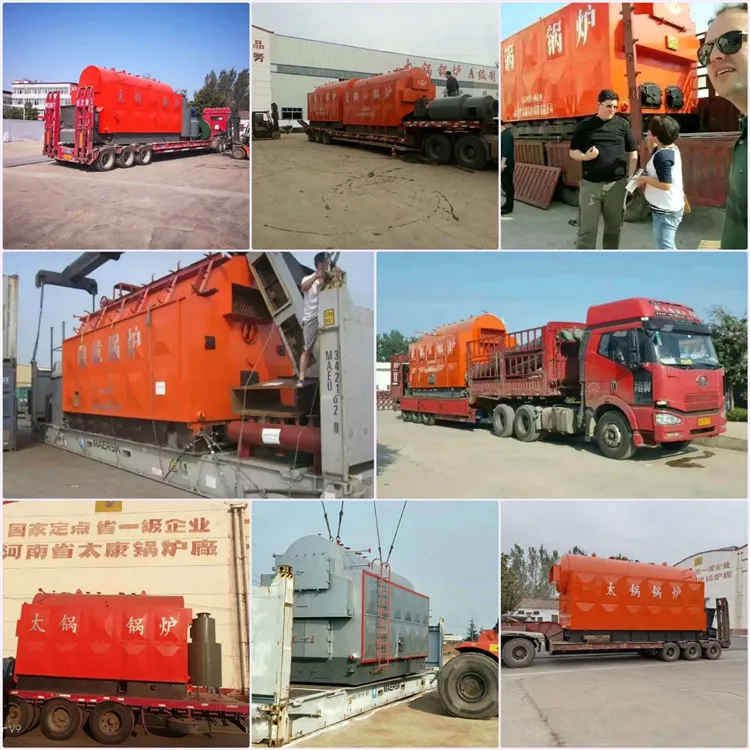

Packing and Delivery

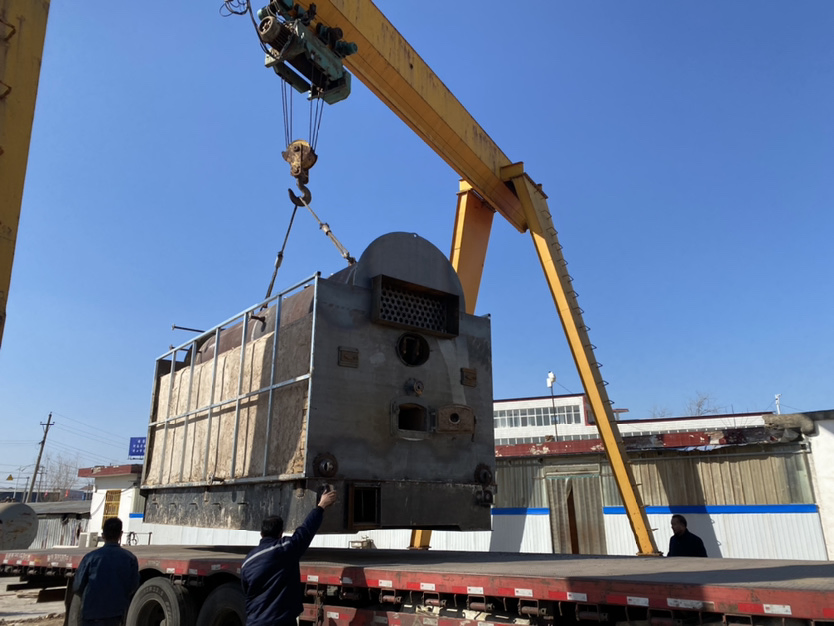

We ensure safety through customized packing and delivery methods. Small boilers are shipped in standard containers, while larger units utilize Open-top or Flat Rack containers to maintain integrity during transit.
Our Professional Service
Pre-Sales
- Inquiry and consulting support
- Factory visit arrangements
After-Sales
- Engineers available for overseas service
- Installation and operational training
Frequently Asked Questions
How do I select the right boiler for my needs?
Choose a Grade A manufacturer with a proven history. Clearly define your requirements for capacity, fuel type (wood, coal, biomass), and required steam pressure.
What are the main products available?
We specialize in steam boilers, hot water boilers, thermal oil boilers, and pressure autoclaves across various industries like paper, food, textile, and power plants.
What makes the DZH series cost-effective?
The DZH series uses manual feeding which reduces complex mechanical failures. Its spiral tube design and large hearth also significantly lower fuel consumption.
Is the steam quality guaranteed?
Yes, our optimally designed steam separators ensure steam humidity is lower than 1%, which is far better than the international standard of 4%.
Do you provide installation training?
Absolutely. Our after-sales service includes training on how to install and operate the boiler efficiently, with engineers available for overseas support.
Are your boilers environmentally friendly?
Yes, our boilers feature dust separation reversing chambers and advanced furnace arches to ensure low emission concentrations and environmental compliance.
