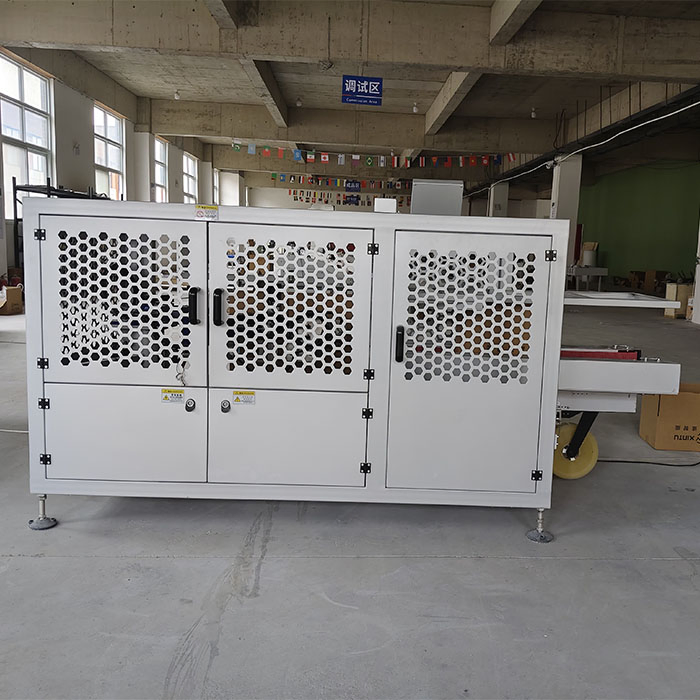

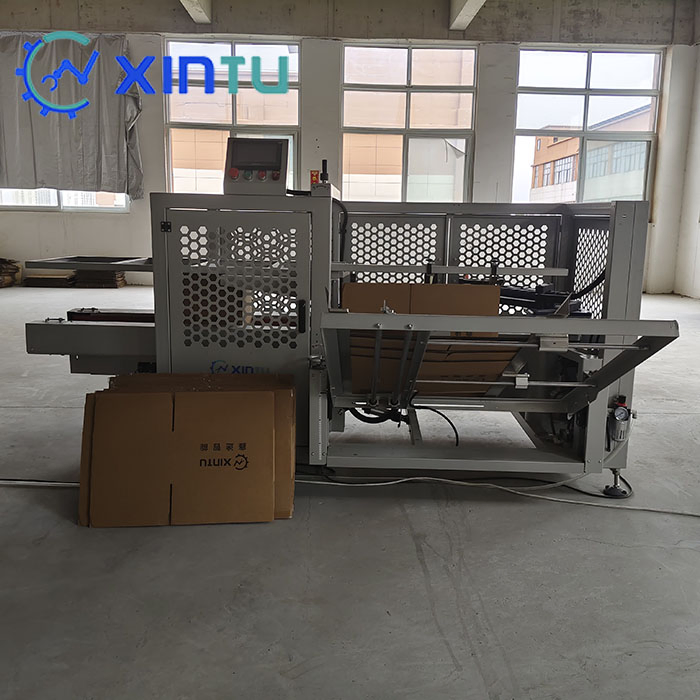

Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
1 / 5
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging
Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging

Automatic Case Cardboard Erector with Tape Bottom Feature for Efficient Packaging

Customization: Available
After-sales Service: on Line Video Technical Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Automatic Grade
Automatic
Type
Case Erector
Forming Species
Carton Forming
Driven Type
Pneumatic
Material Type
Cartons/Boxes/Cases
Packing Speed
5-25PCS/Min
Power
380V/50Hz 2kw
Machine Size
2.2*1.8*1.45m
Machine Weight
550kgs
Servo Motor
3PCS
Erecting Method
Robot Arm
Core Components
Servo Motor, Robotic Arm, PLC
Product Description
Compact Servo Case Erector: High-Automation Solution
✔
Full Automation: Integrated with a robotic arm to cut labor costs drastically and improve precision.
✔
Synchronous Operation: Servo motor drives dual-side belts ensuring square cartons every time.
✔
Compact Footprint: Space-saving design ideal for efficient and modern factory packaging lines.

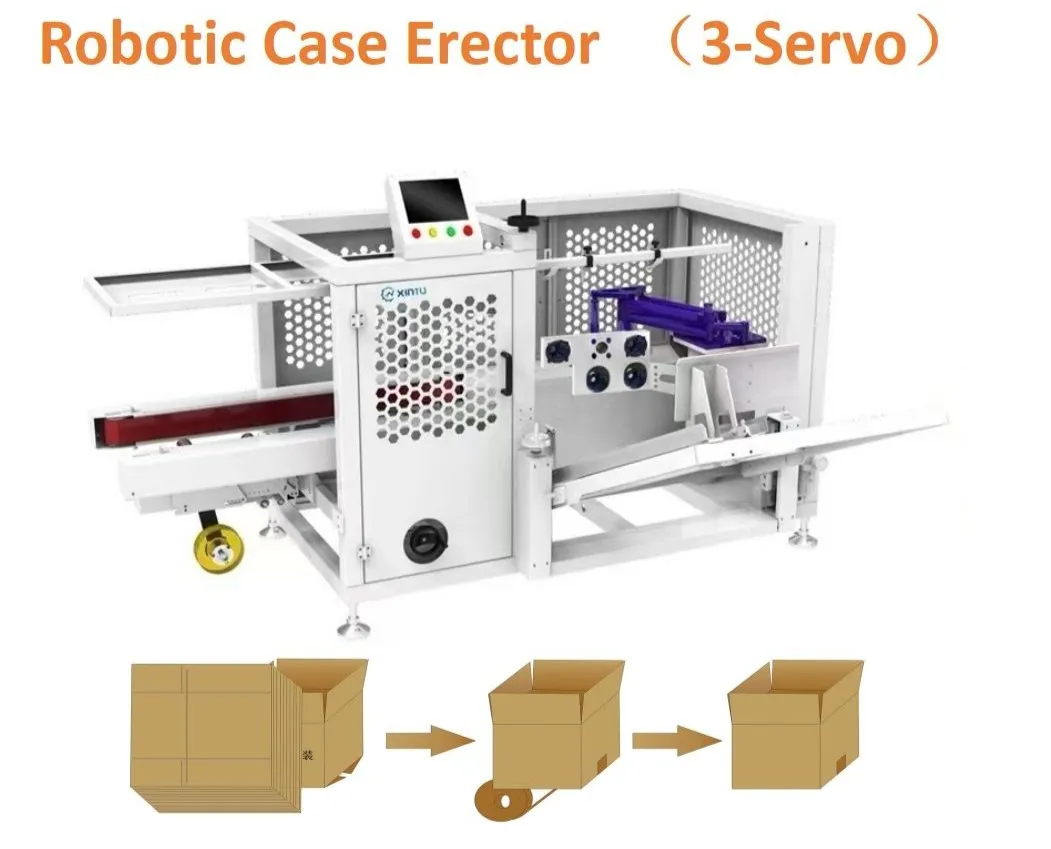

Case Erector Operation

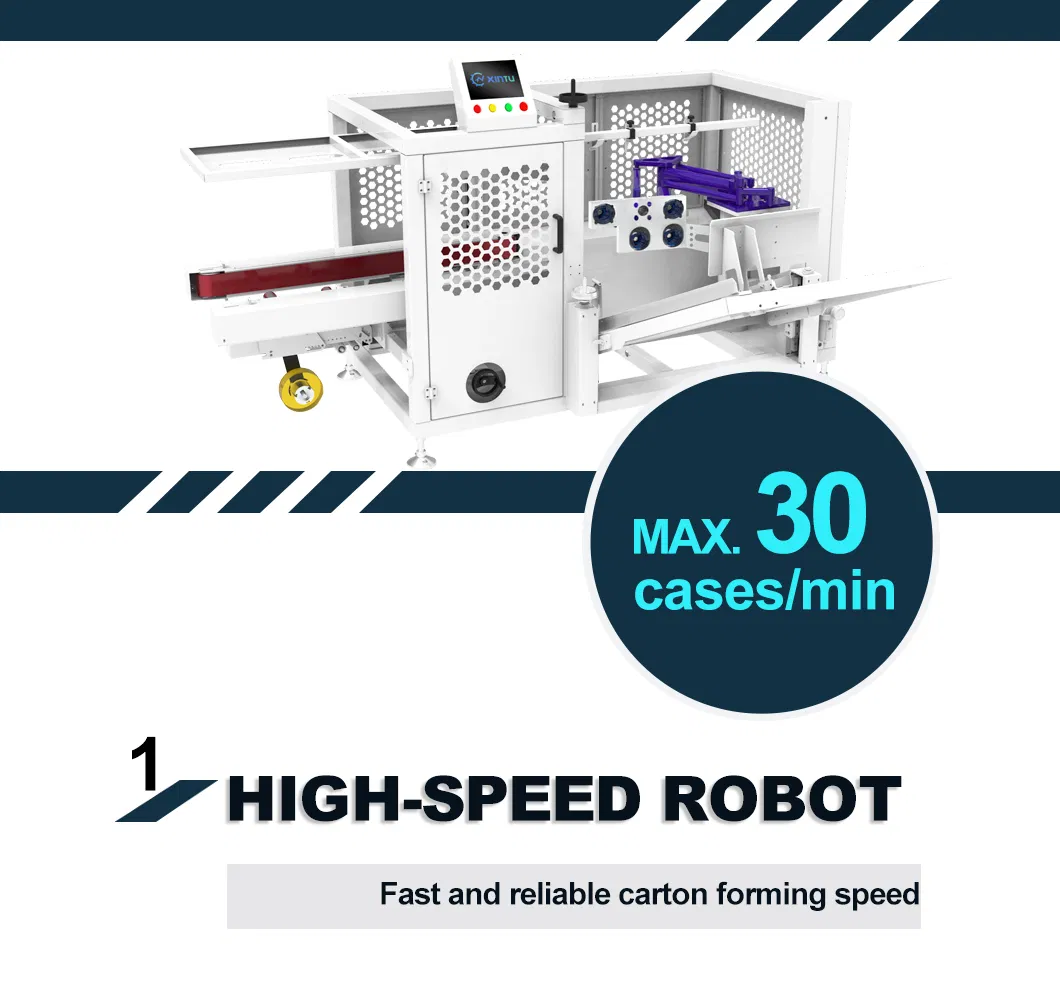

Automatic Case Erector Feature 1
Automatic Case Erector Feature 2

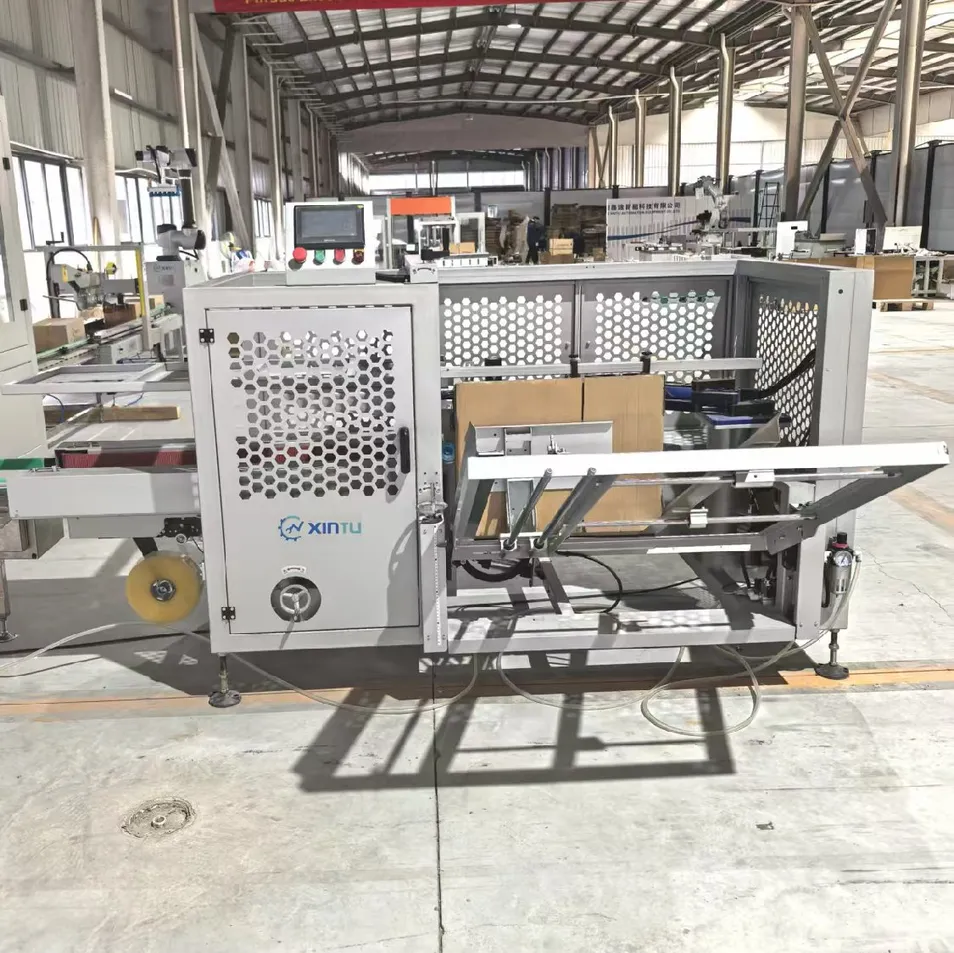

Packaging Detail 1

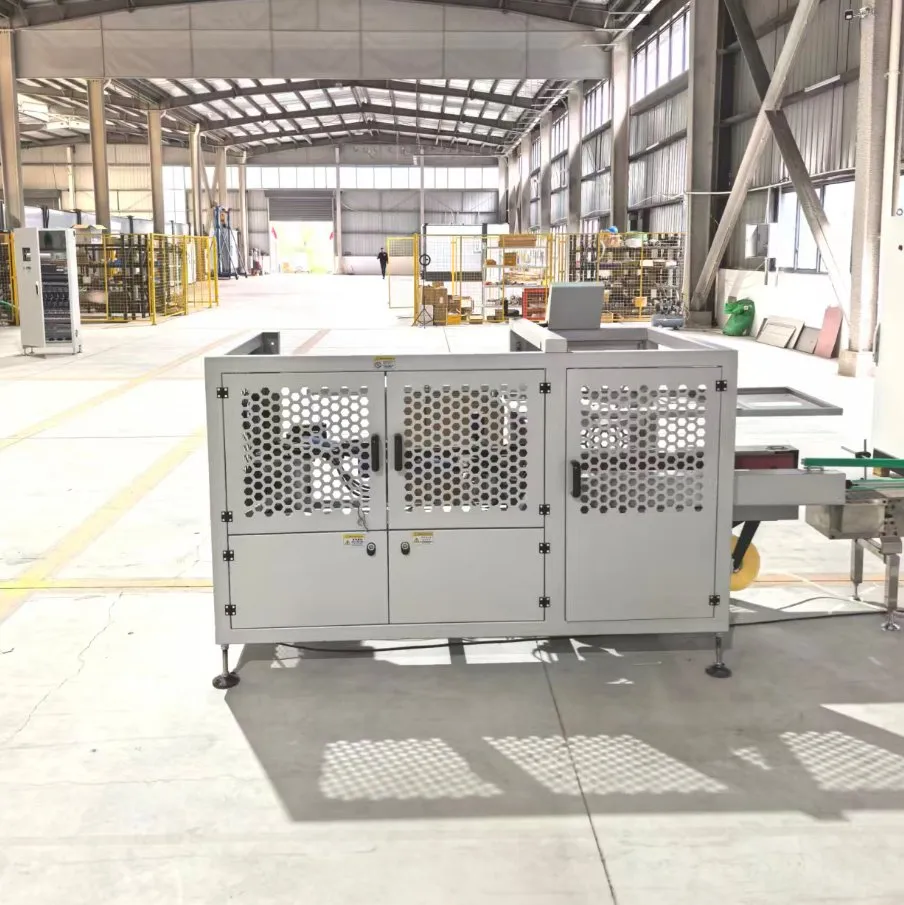

Packaging Detail 2

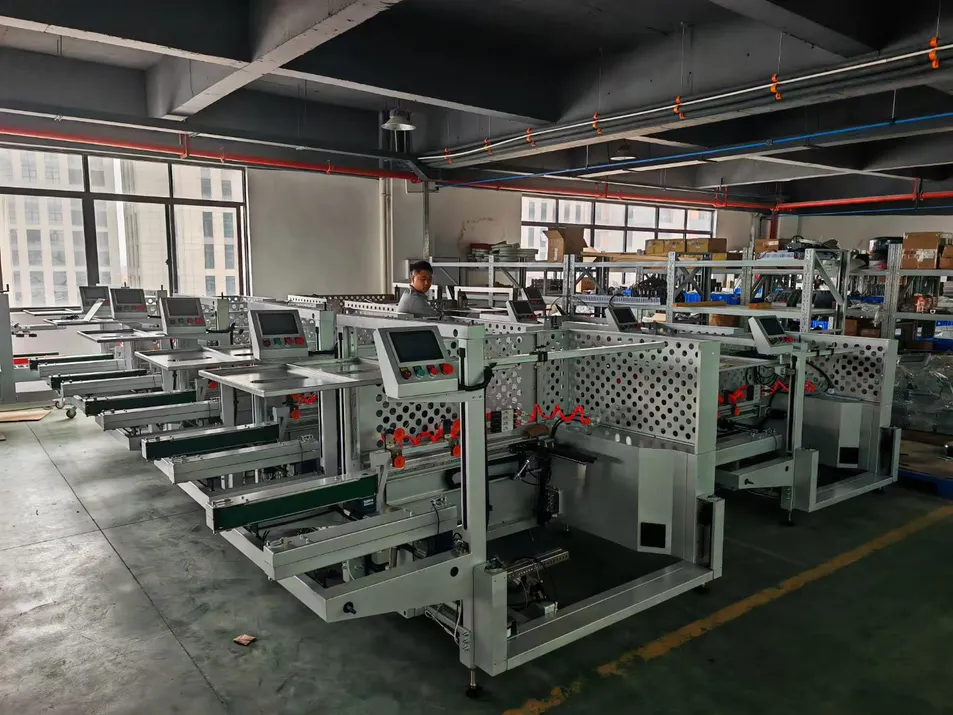

Packaging Detail 3
Technical Specifications

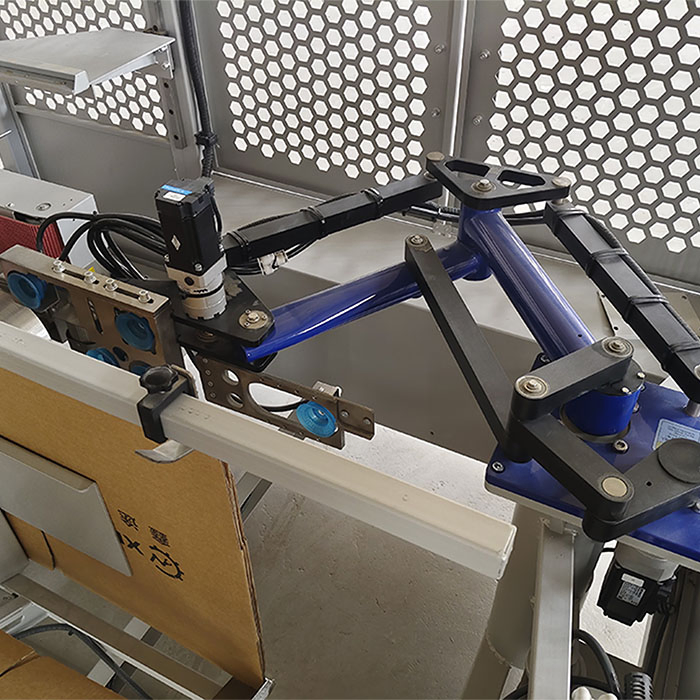

Robotic Arm Design

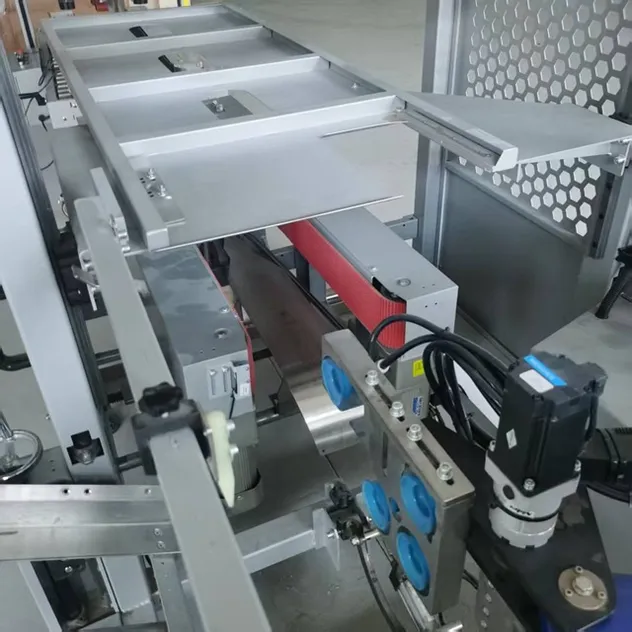

Servo Motor Accuracy

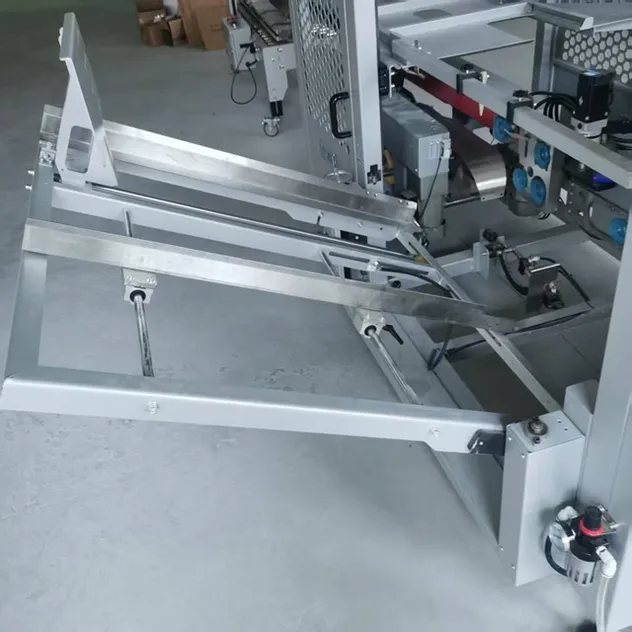

Carton Storage
Item No. TKXS-400 TKXM-500 TKXL-650
Power380V / 50HZ 2KW380V / 50HZ 2KW380V / 50HZ 5KW
Packing Speed15-25 pcs/min15-20 pcs/min15-20 pcs/min
Compressed Air0.6-0.8 mpa/min0.6-0.8 mpa/min0.6-0.8 mpa/min
Machine Size240*190*140cm260*190*140cm230*168*210cm
Machine Weight500kgs600kgs700kgs
Carton Length145-400mm280-500mm280-650mm
Carton Width85-350mm150-400mm150-500mm
Carton Height150-350mm150-400mm150-500mm
Machine Structure Detail
Operational View 1
Operational View 2
Service & Support

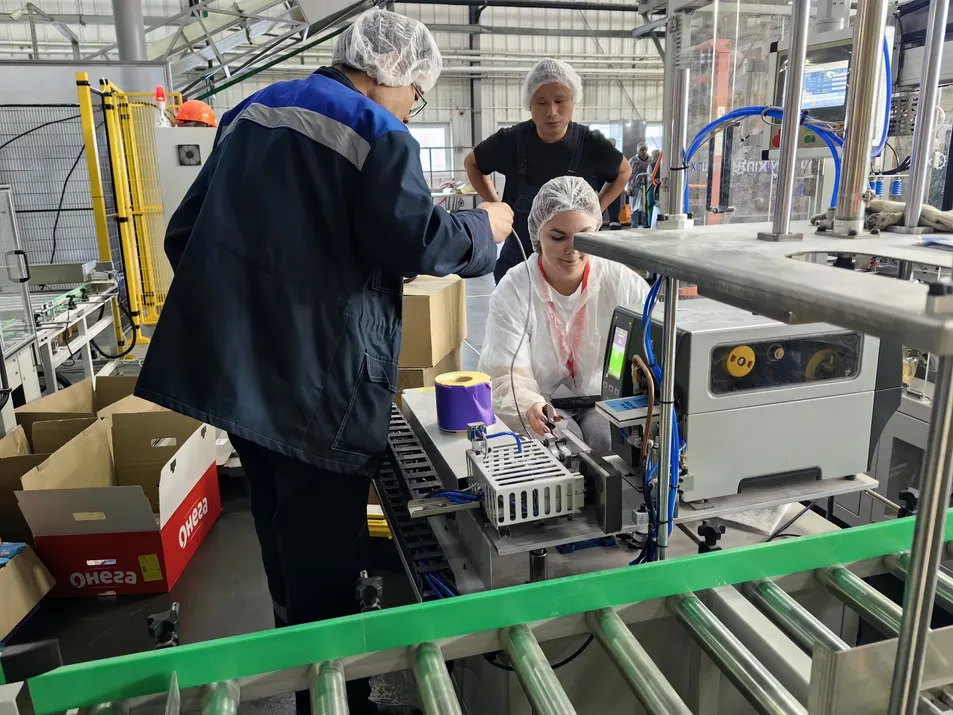

Technical Support
After-Sale Policy

1-year quality guarantee for total peace of mind.

24/7 online technical support whenever you need it. We provide on-site installation services for integrated lines including sorting and packing machines. For overseas customers, we offer comprehensive free online guidance and can dispatch technicians upon request.

Frequently Asked Questions
1. Will your gripper work well with my product?
Absolutely. Send us your product, and we'll test it with our suction gripper to ensure a perfect match. We always find the right solution for our customers' specific needs.
2. What's the maximum packaging speed?
The gripper picks multiple products per cycle. If you need higher throughput, we can boost performance by adding more gripper modules or extra working positions tailored to your requirements.
3. Is it hard to operate?
Not at all. It features a PLC touch screen with pre-programmed working conditions. For new setups, our engineers can access the control system online and walk you through every step remotely.
4. How much maintenance does it need?
Very little. Built with high-quality core components, it only requires simple routine checks of wear parts. It is designed for long-term stable operation.
5. What's the production lead time?
Production typically takes 30–60 days, depending on specific customization requirements. We provide a precise timeline once the order details are confirmed.
6. How do I place an order?
Reach out to our sales team via email or online message. We will respond promptly to answer questions and guide you through the entire ordering process.
