Fully Automatic Carton Box Packing Machine with High Efficiency

1 / 5

Fully Automatic Carton Box Packing Machine with High Efficiency

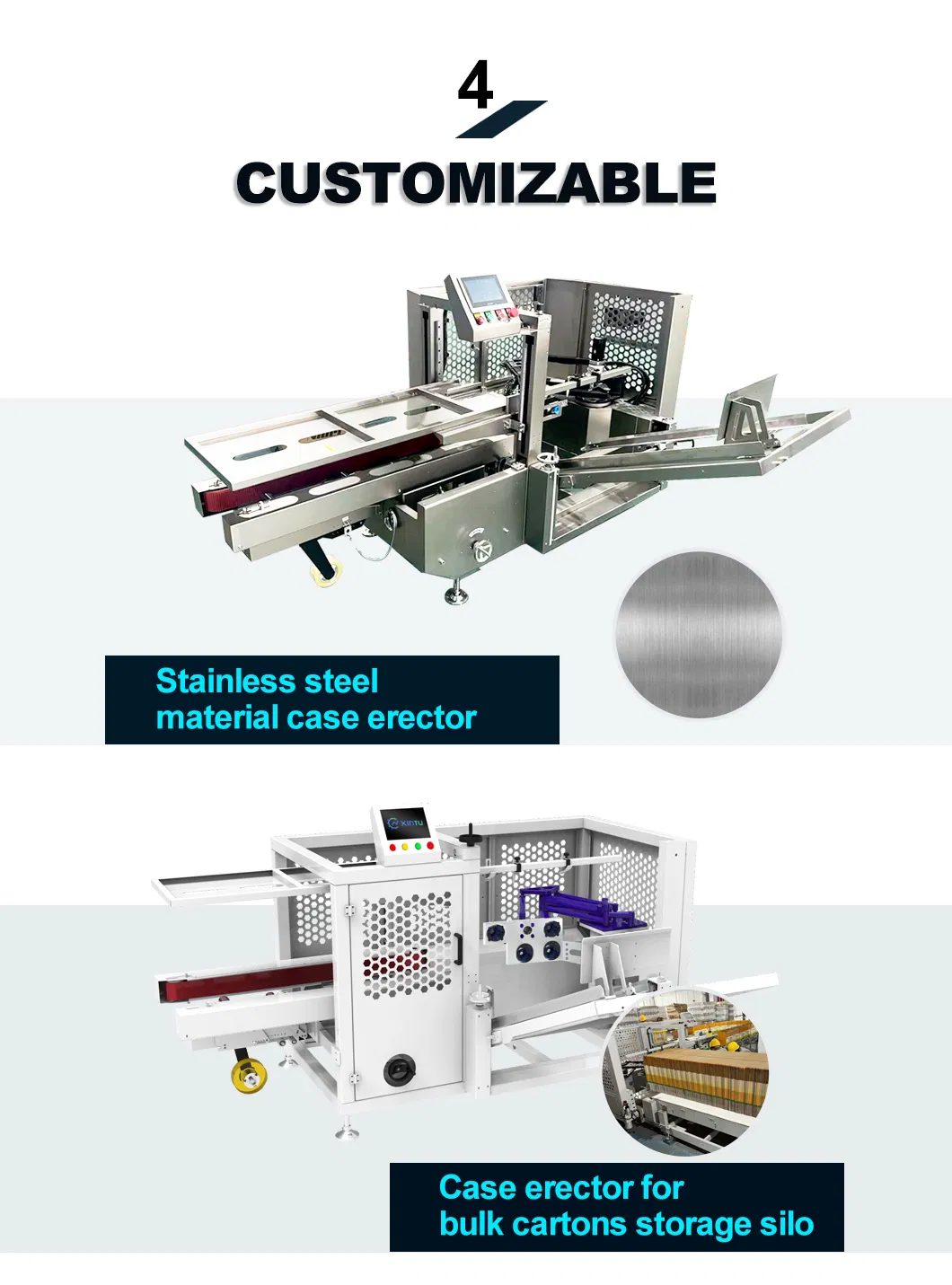

Customization:	Available
After-sales Service:	on Line Video Technical Service
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Automatic Grade

Automatic

Type

Case Erector

Forming Species

Carton Forming

Forming Function

Forming, Seal

Driven Type

Pneumatic

Material Type

Cartons/Boxes/Cases

Packing Speed

5-25PCS/Min

Power

380V/50Hz 2kw

Machine Size

2.2*1.8*1.45m

Machine Weight

550kgs

Erecting Method

Robot Arm

Core Components

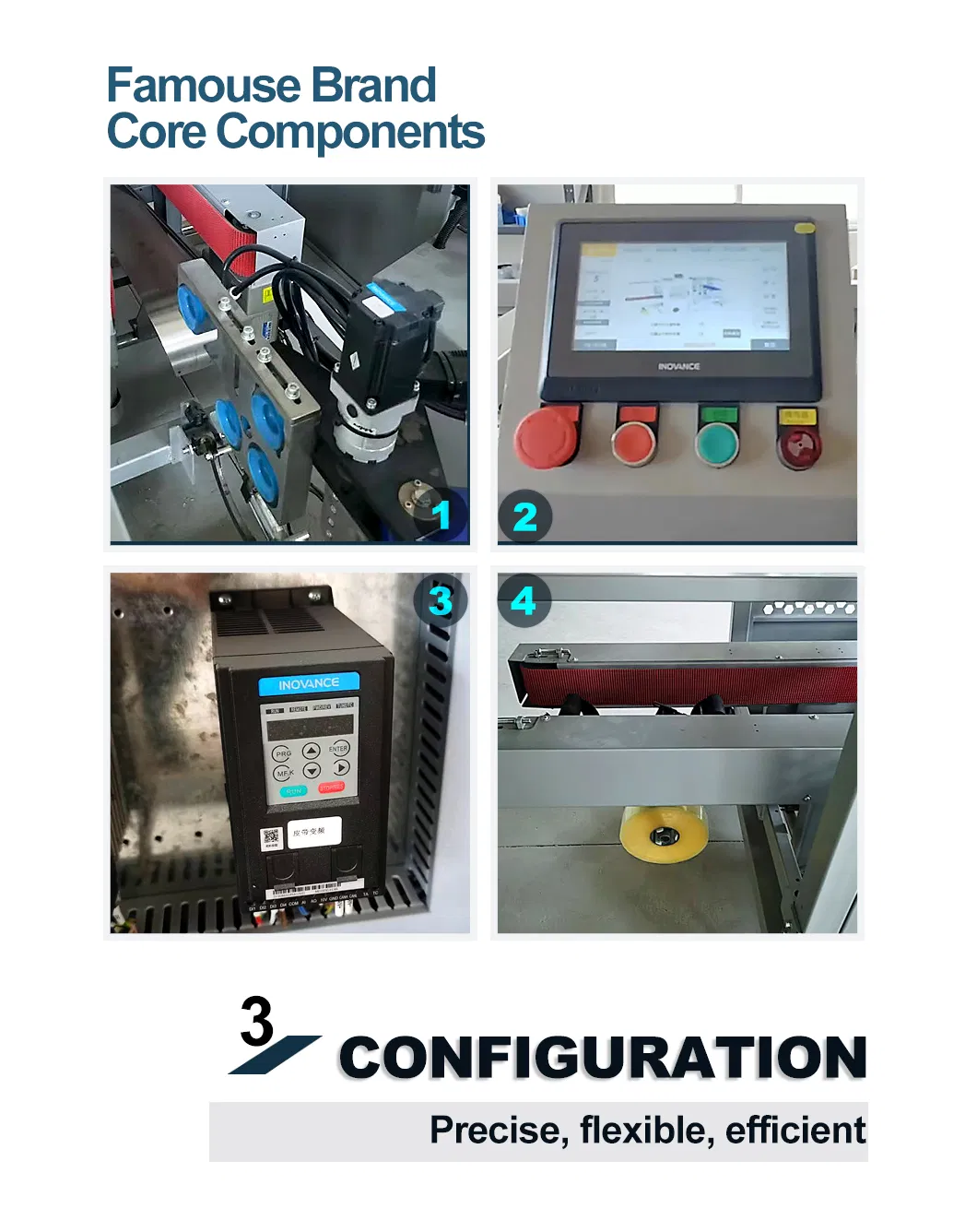

Servo Motor, Robotic Arm, PLC

🔍 Product Description

⚙

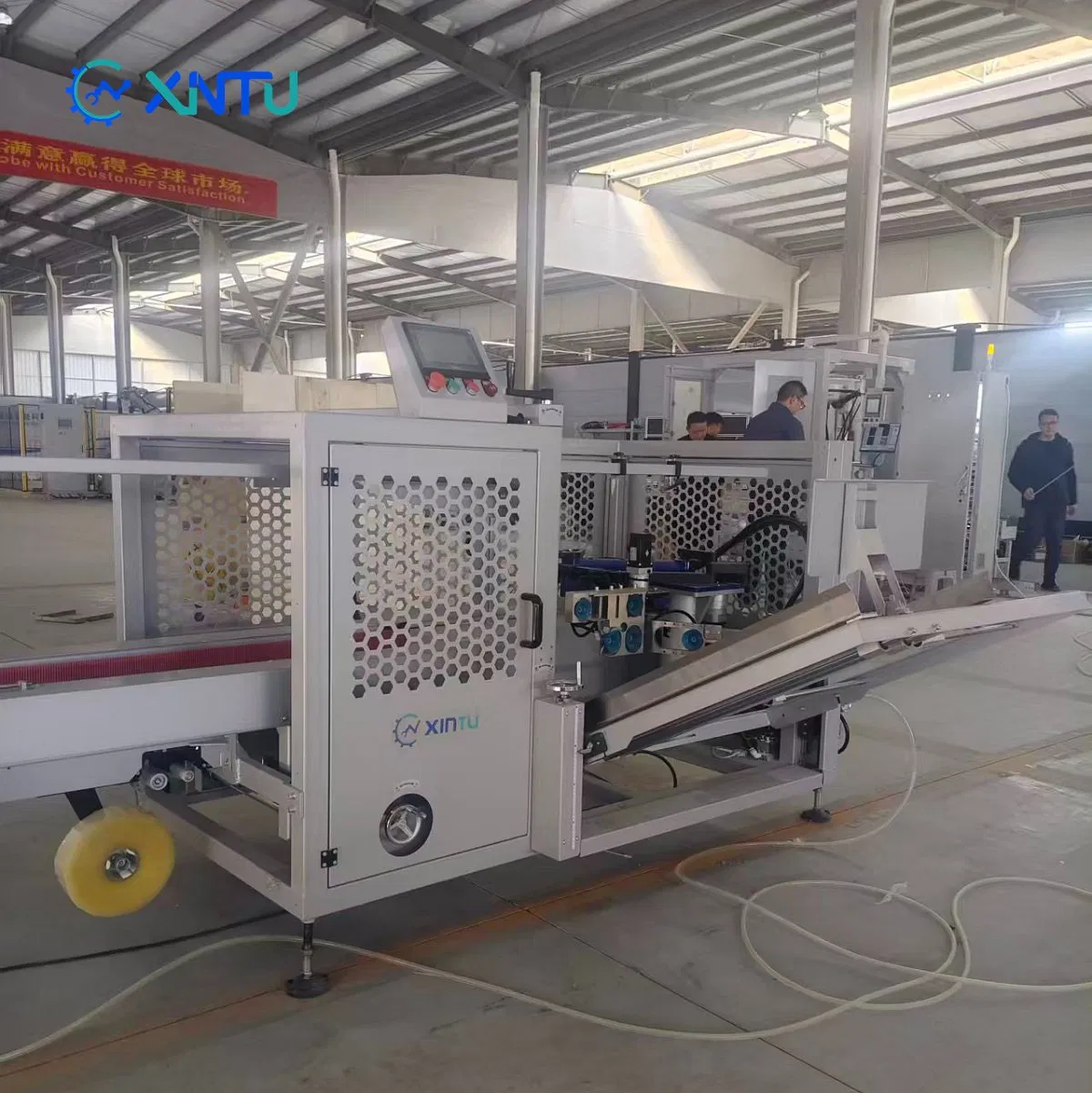

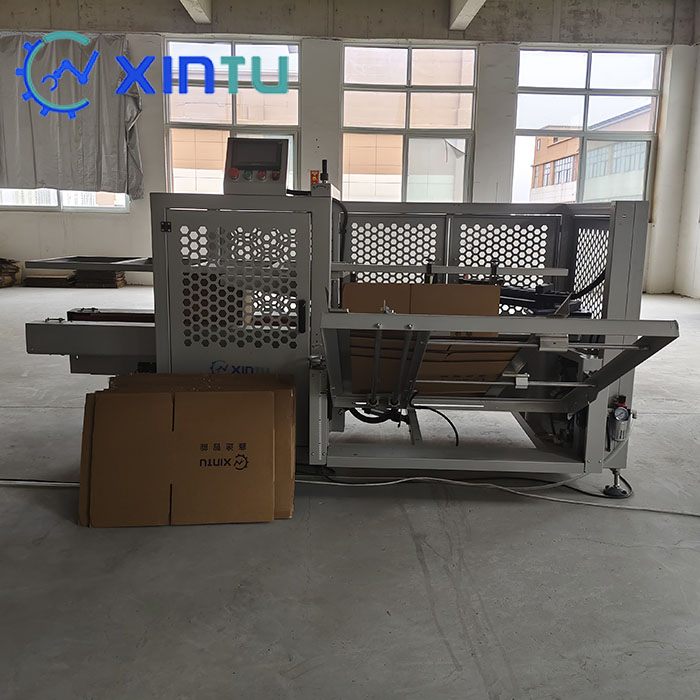

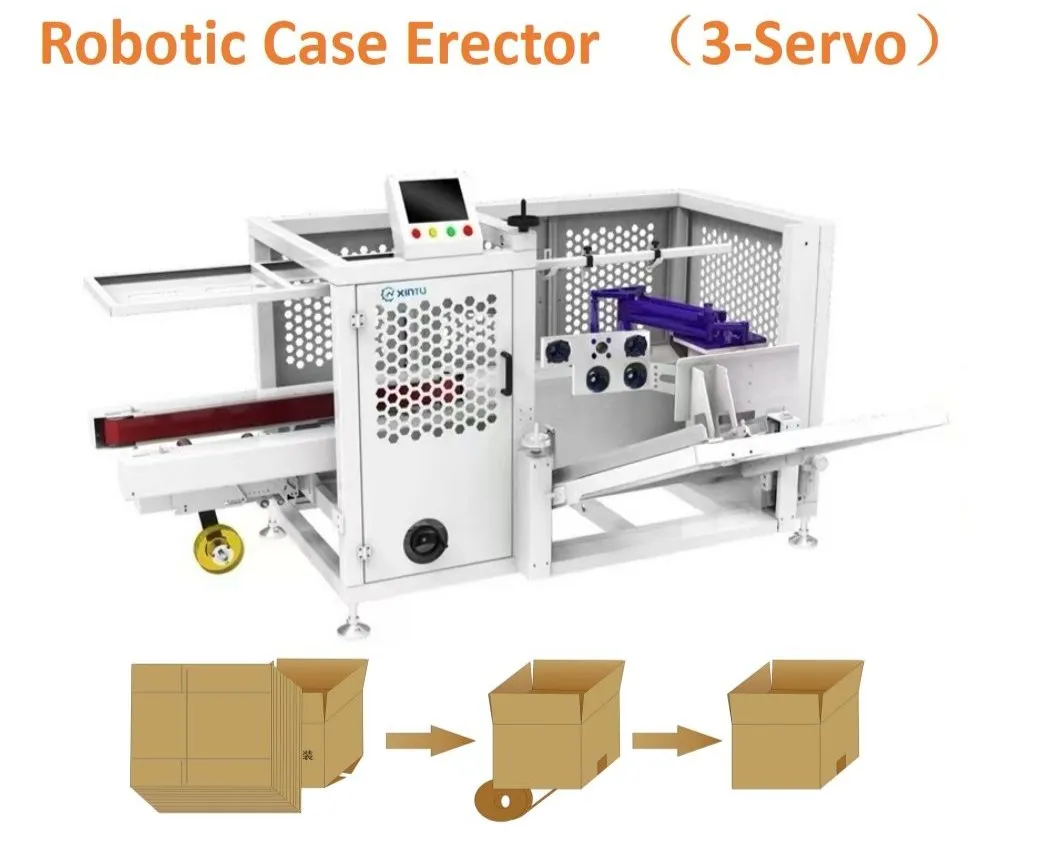

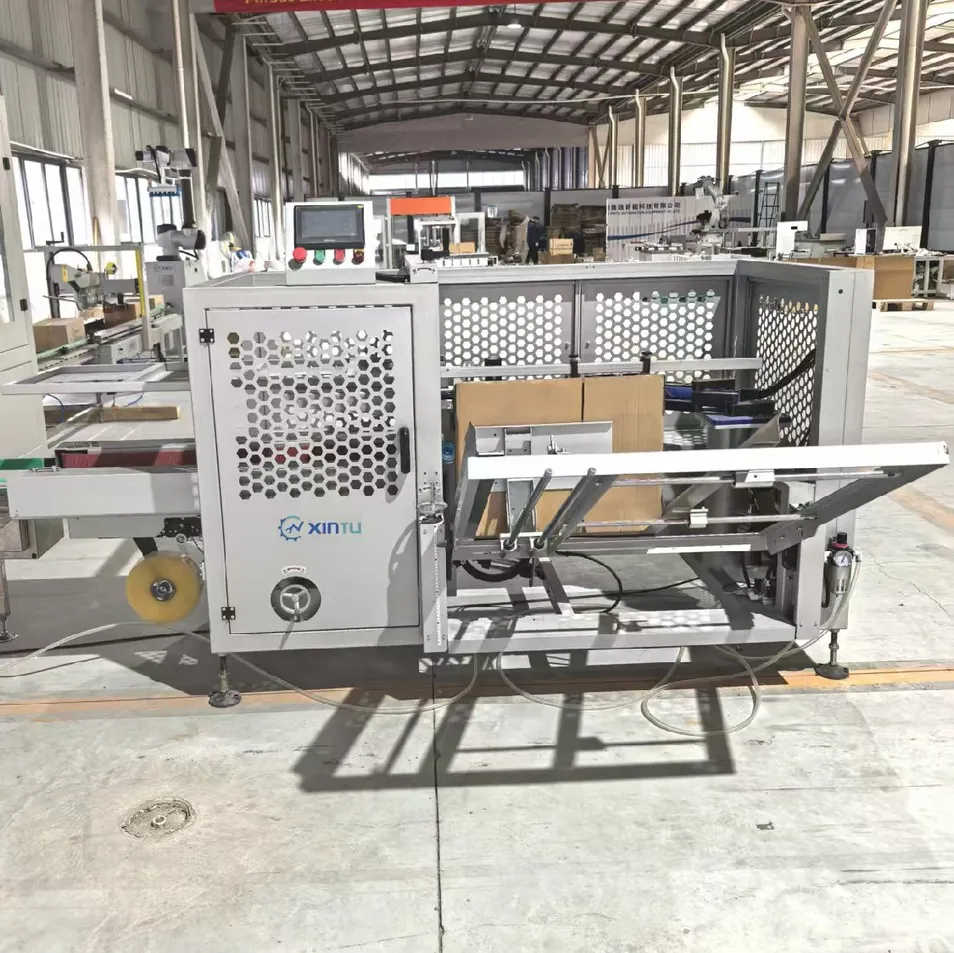

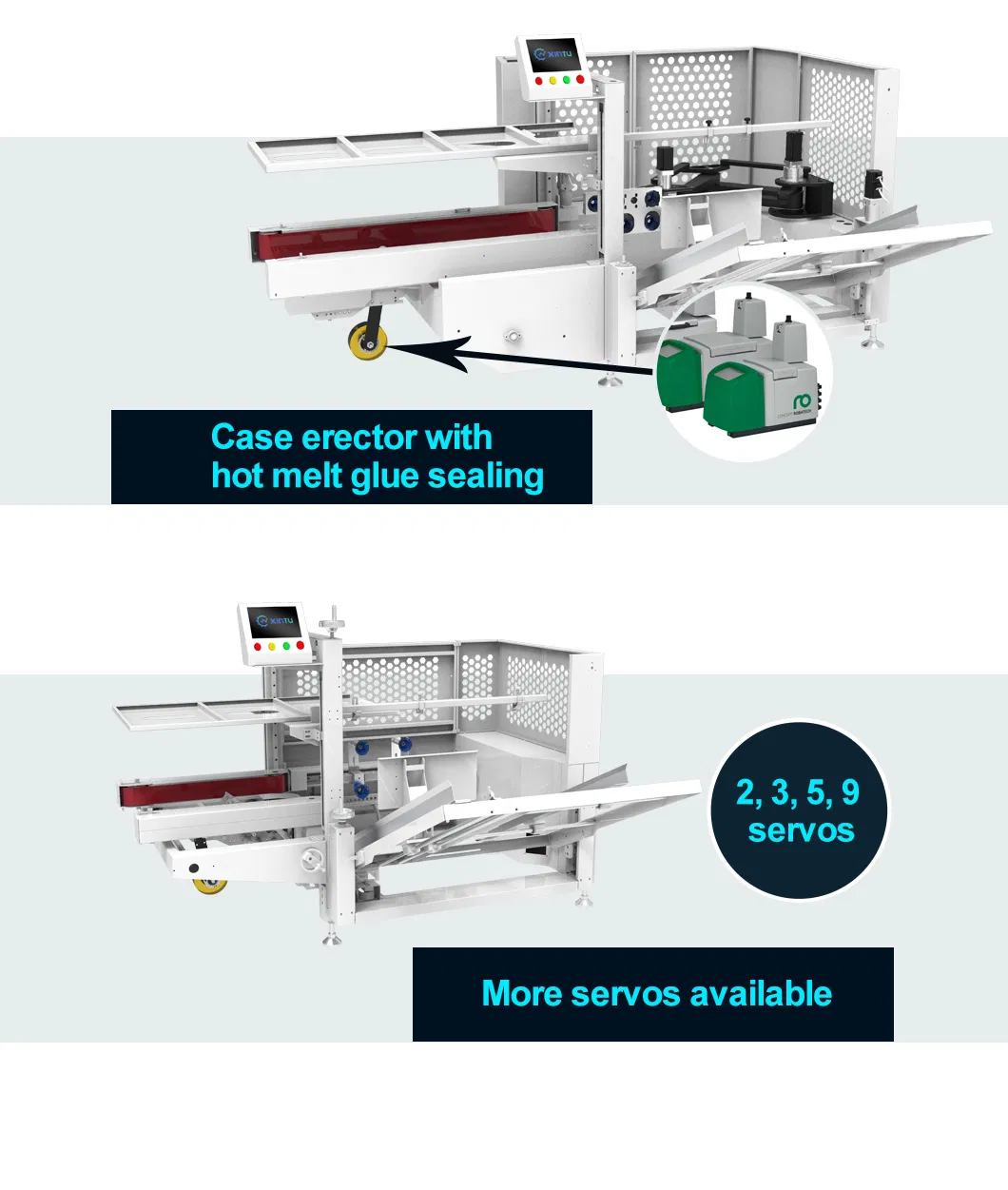

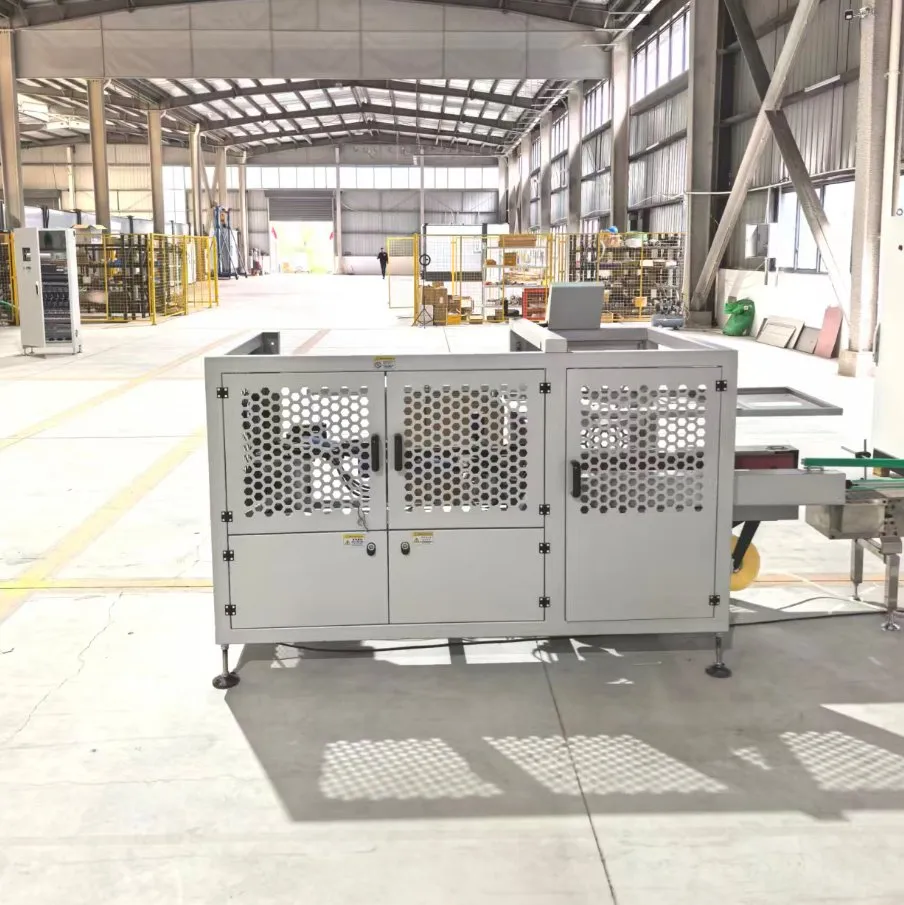

Compact Servo Case Erector

Integrated with a robotic arm for full automation—cuts labor costs drastically. Runs smoothly with low noise, protecting cartons and keeping your production floor quiet. Features an inclined unpowered carton silo for non-stop refilling. Seamlessly integrates with upstream/downstream equipment to simplify line layout. Servo motor drives dual-side belts for synchronous operation, ensuring square cartons every time. Compact footprint saves valuable factory space.

📊 Technical Specifications

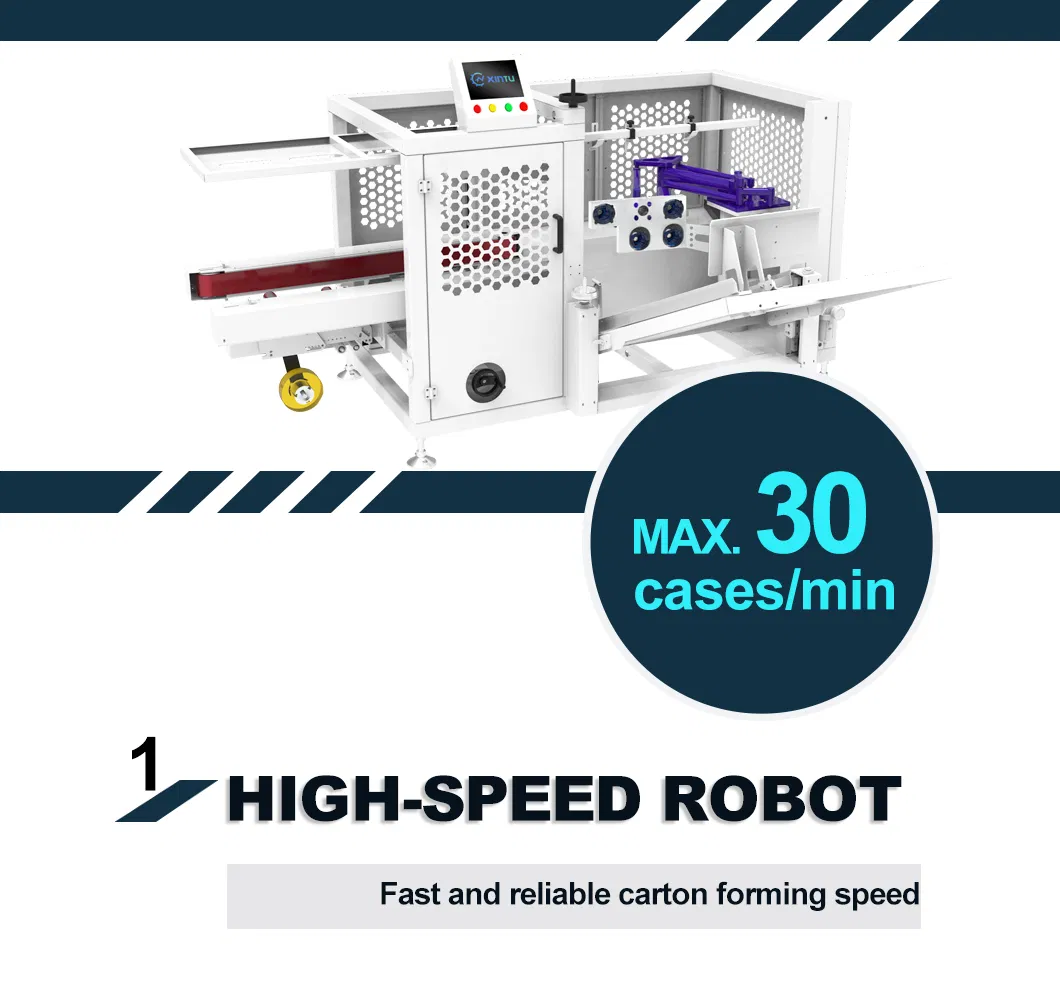

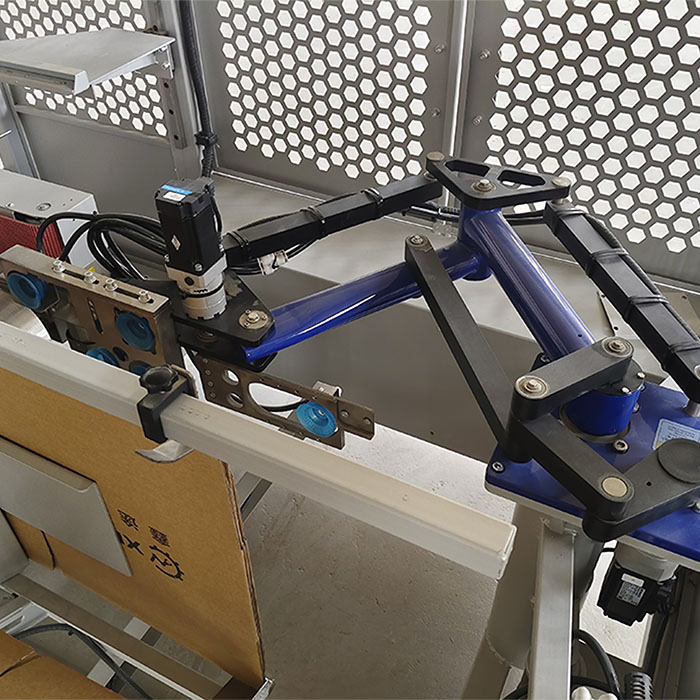

Robotic arm design

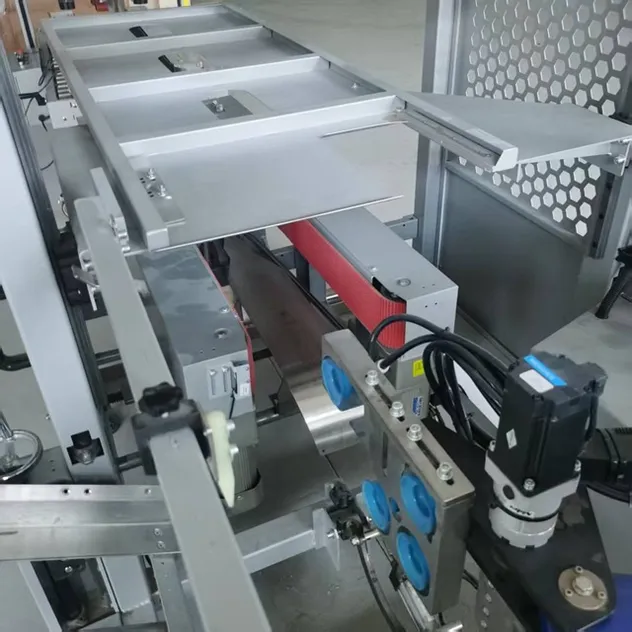

Servo motors accuracy

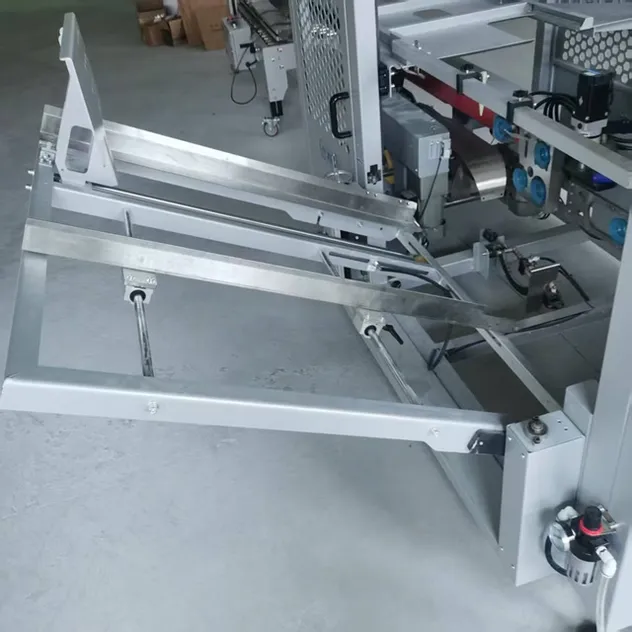

Inclined storage rack

Item No.	TKXS-400	TKXM-500	TKXL-650
Power	380V / 50HZ 2KW	380V / 50HZ 2KW	380V / 50HZ 5KW
Packing speed	15-25 pcs/min	15-20 pcs/min	15-20 pcs/min
Air consumption	0.6-0.8 mpa/min	0.6-0.8 mpa/min	0.6-0.8 mpa/min
Machine size	240190140cm	260190140cm	230168210cm
Carton Length	145-400mm	280-500mm	280-650mm
Carton Width	85-350mm	150-400mm	150-500mm

🚀 Service & Quality

🛠

After-Sale Policy

We provide a 1-year quality guarantee and 24/7 online technical support. For overseas customers, we offer free online guidance. On-site installation is available upon request (travel expenses and a daily fee apply).

Frequently Asked Questions

1. Will your gripper work well with my product?

Absolutely—send us your product, and we'll test it with our suction gripper to ensure a perfect match. We always find a tailored solution for our customers.

2. What's the maximum packaging speed?

The speed is optimized as the gripper picks multiple products per cycle. We can boost performance by adding more gripper modules or extra working positions based on your specific requirements.

3. Is it hard to operate?

Not at all. It features a user-friendly PLC touch screen with pre-programmed conditions. We also offer remote training and online technical support to guide you through any new setups.

4. How much maintenance does it need?

Very little. Thanks to high-quality core components, the machine runs stably. Only simple routine checks and occasional wear-part replacements are required.

5. What's the production lead time?

Production time is usually 30–60 days, depending on your specific customization and machine requirements. We work hard to deliver as quickly as possible.

6. How do I place an order?

Simply reach out to our sales team via message. We will respond promptly to share details, answer questions, and guide you through the ordering process.
