Fully Automatic Cardboard Box Erector for Efficient Packaging Solutions

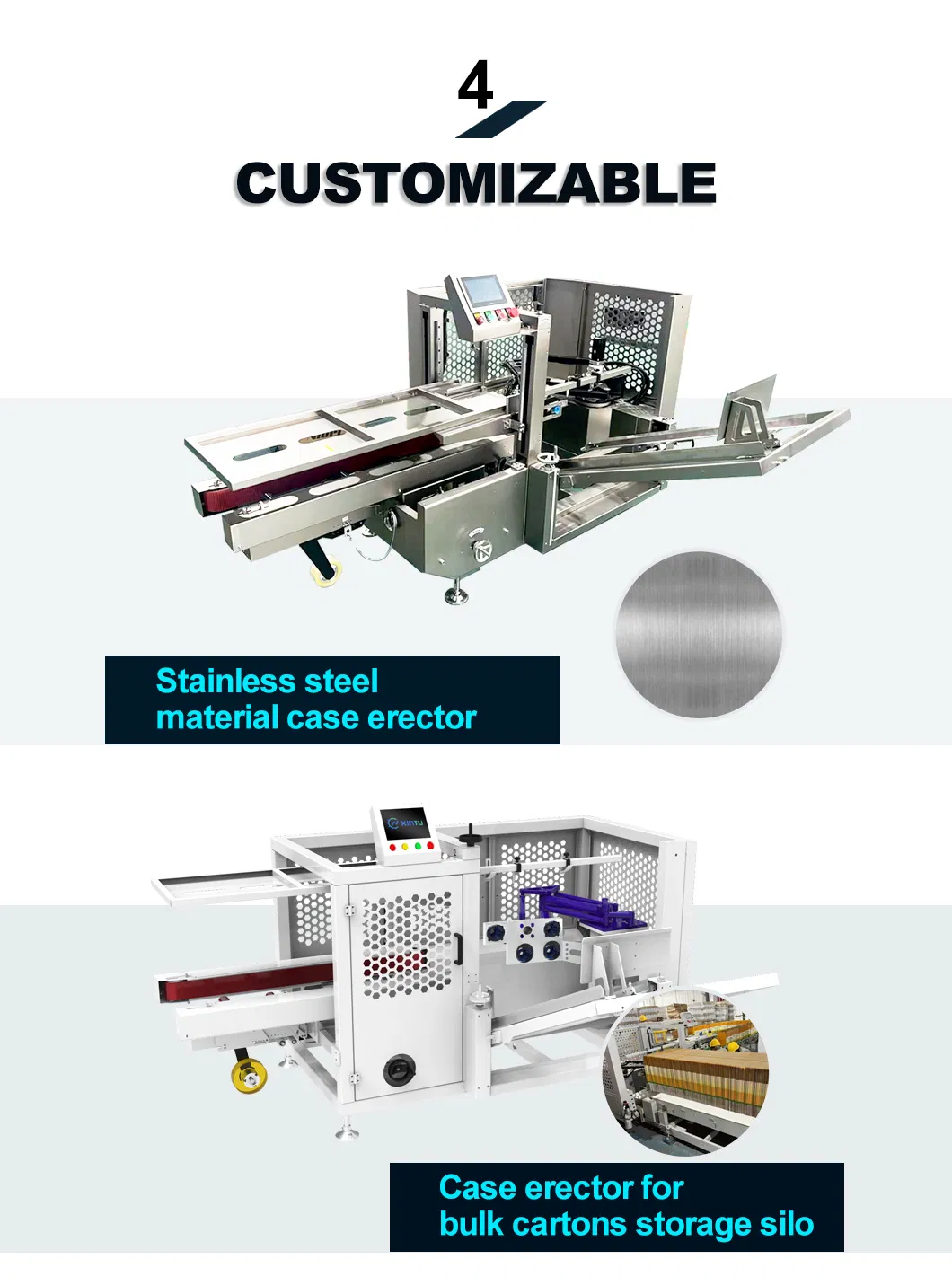

Customization:	Available
After-sales Service:	on Line Video Technical Service
Warranty:	1 Year

📋 Basic Info.

Automatic Grade	Automatic
Type	Case Erector
Application	Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Forming Species	Carton Forming
Forming Function	Forming, Seal
Driven Type	Pneumatic
Material Type	Cartons/Boxes/Cases
Packing Speed	5-25PCS/Min
Power	380V/50Hz 2kw
Machine Size	2.21.81.45m
Erecting Method	Robot Arm

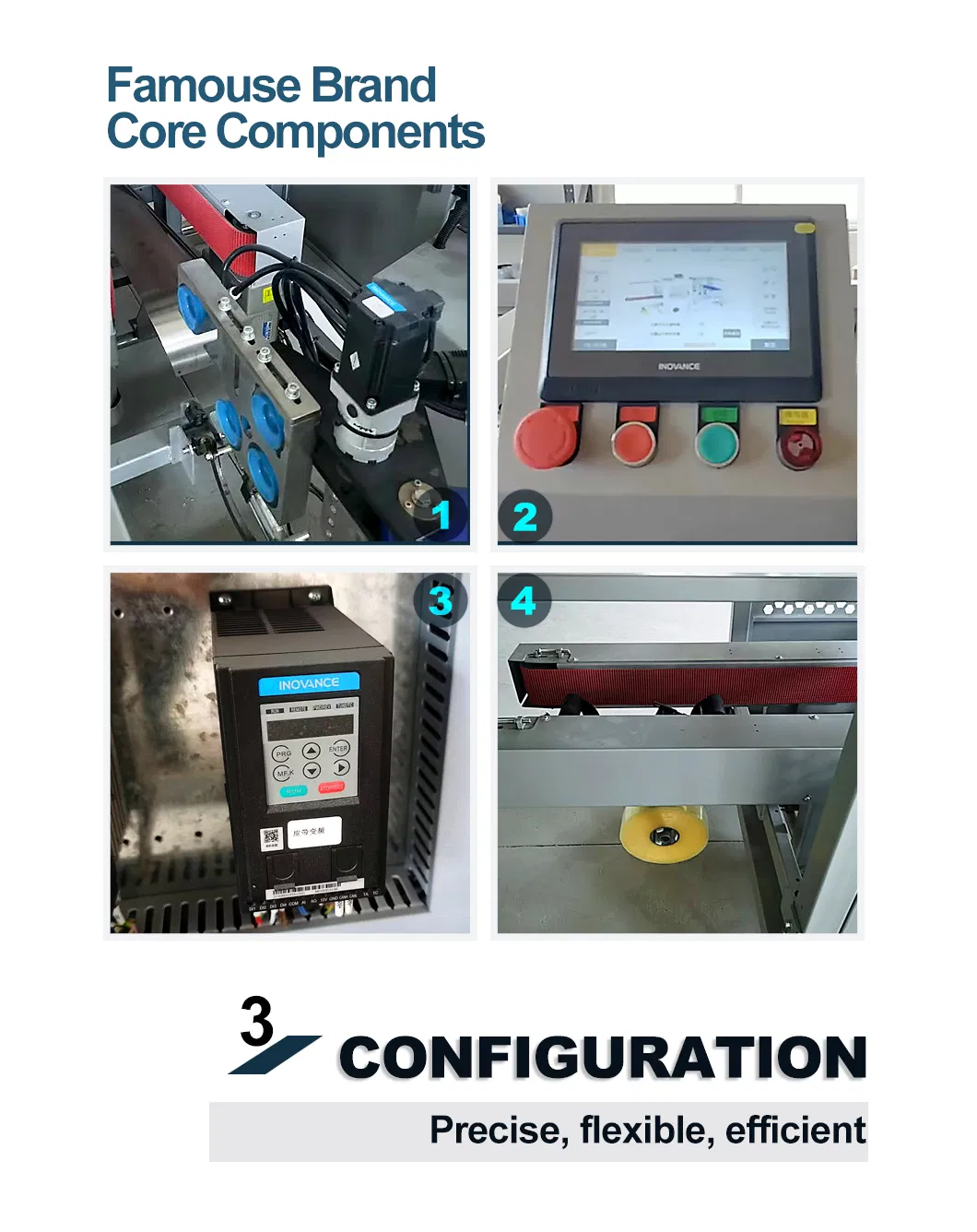

Core Components	Servo Motor, Robotic Arm, PLC

⚙ Product Description

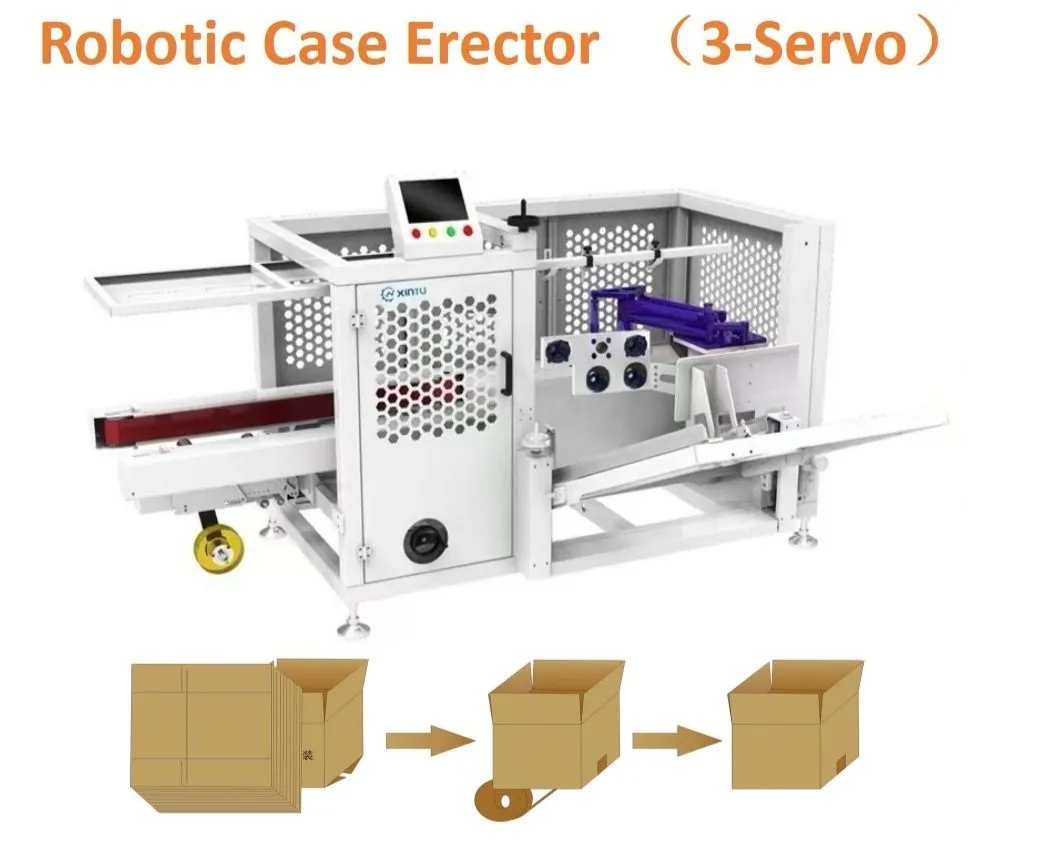

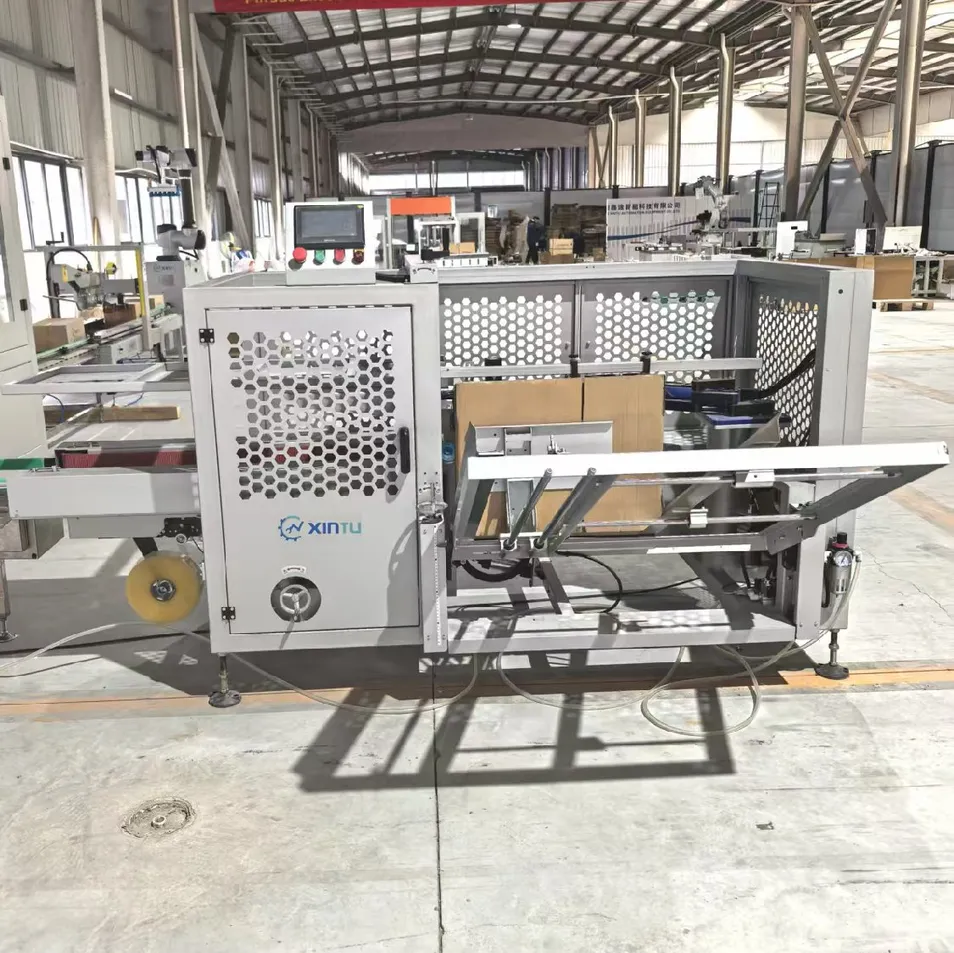

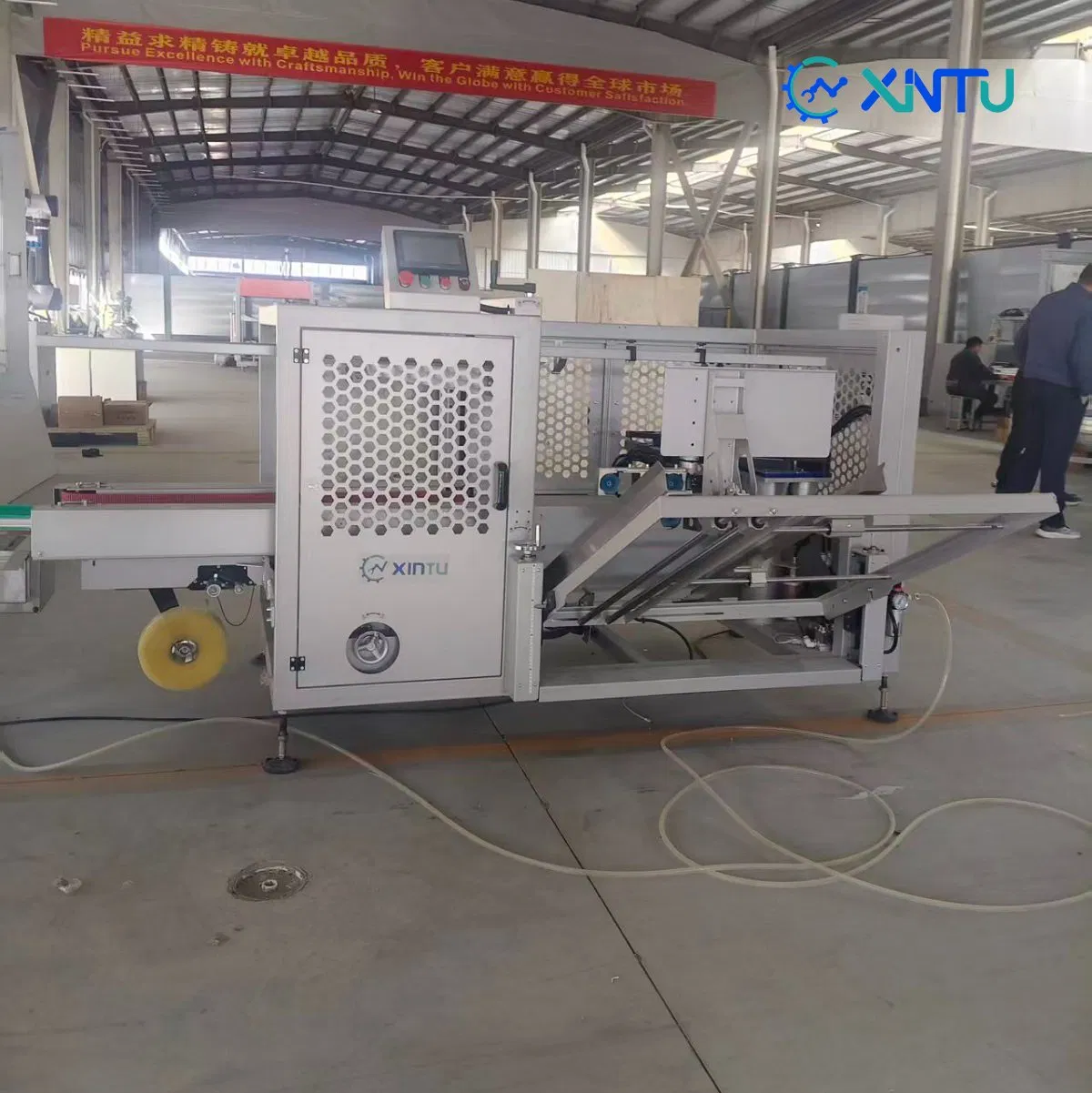

Compact Servo Case Erector: High-Automation, Low-Noise Carton Erecting Solution

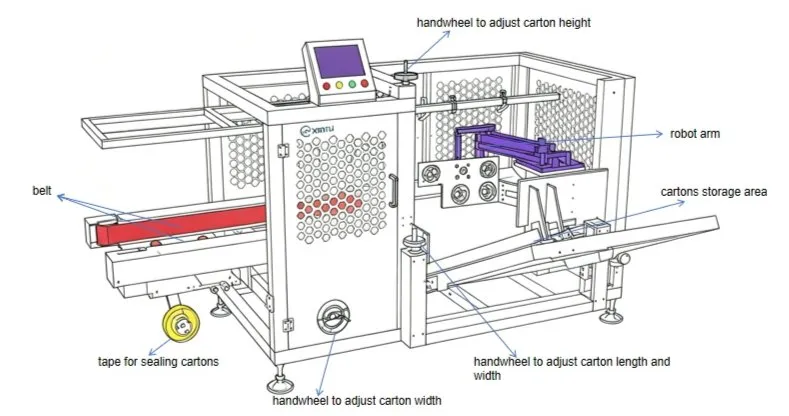

Integrated with a robotic arm for full automation—cuts labor costs drastically. Runs smoothly with low noise, protecting cartons and keeping your production floor quiet. Features an inclined unpowered carton silo for non-stop refilling. Servo motor drives dual-side belts for synchronous operation, ensuring square cartons every time. Compact footprint saves valuable factory space.

📐 Specification

🤖

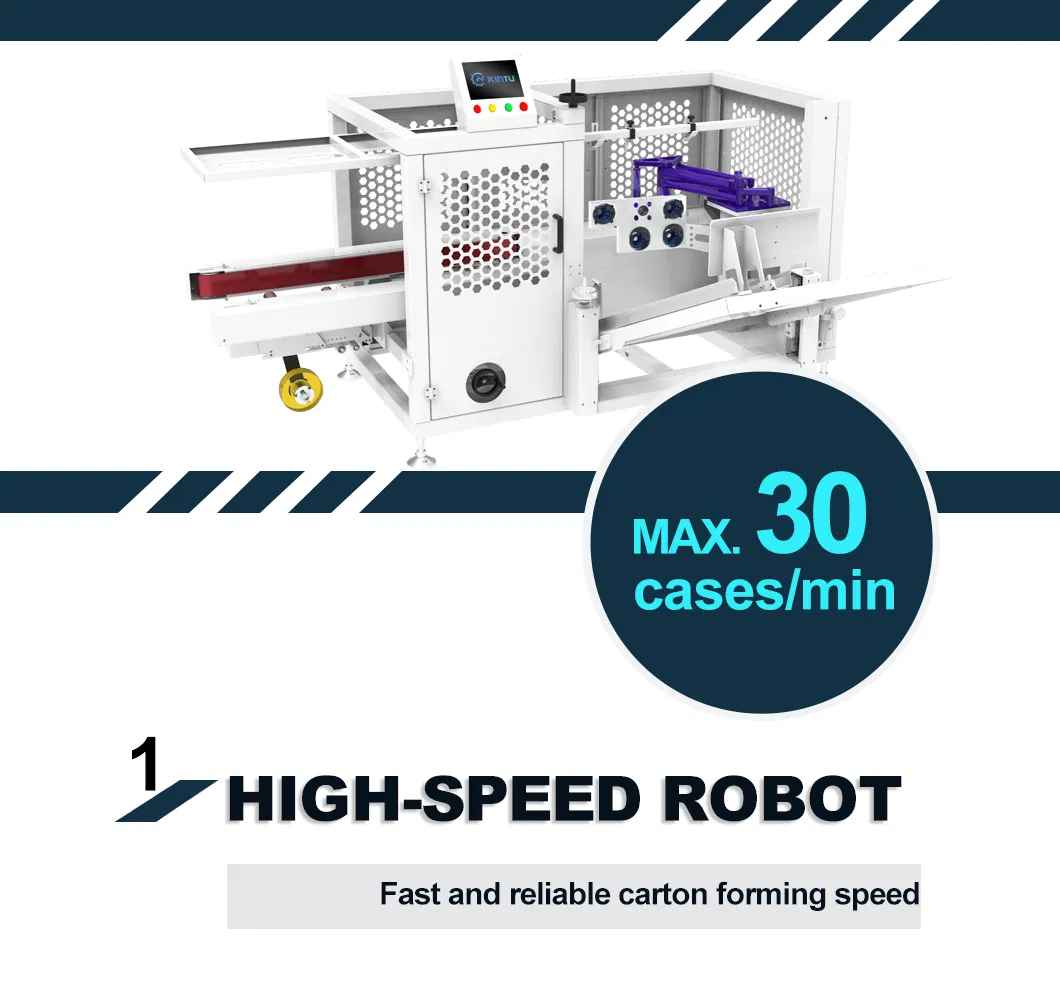

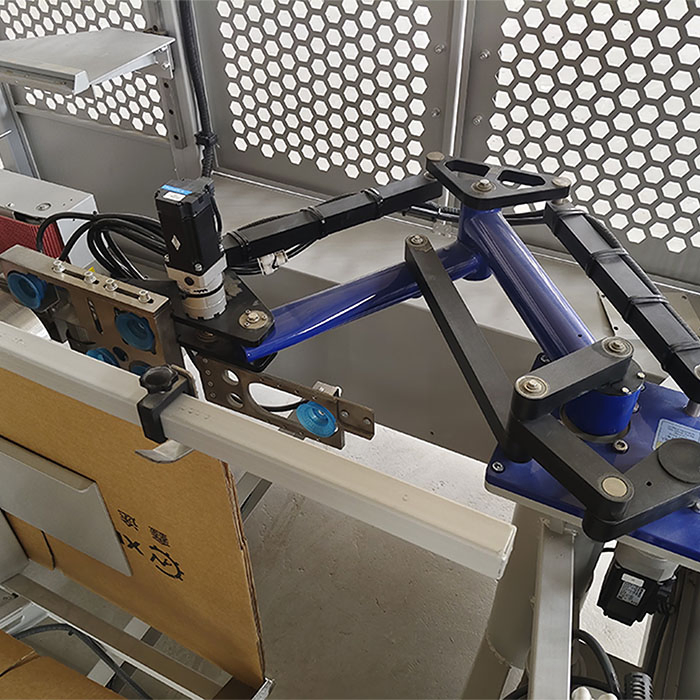

Robotic Arm Design
Uses suction cups for precise, flexible, and fast box adsorption.

⚙

Servo Motor Accuracy
24/7 non-stop operation with stable performance and long service life.

📦

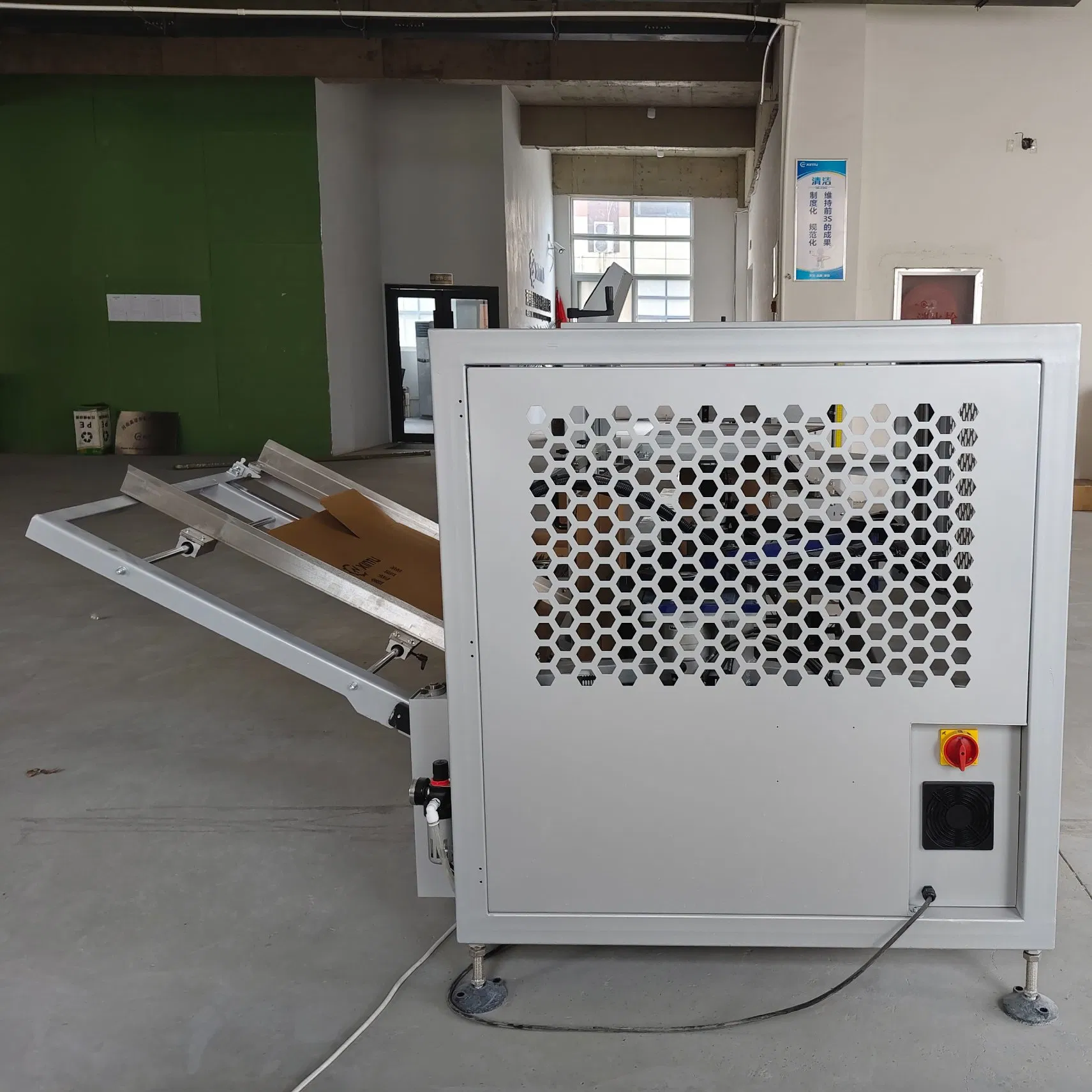

Gravity-Fed Storage
Cases feed automatically via weight—energy-saving and eco-friendly.

Item No.	TKXS-400	TKXM-500	TKXL-650
Power	380V / 50HZ 2KW	380V / 50HZ 2KW	380V / 50HZ 5KW
Packing Speed	15-25 pcs/min	15-20 pcs/min	15-20 pcs/min
Compressed Air	0.6-0.8 mpa/min	0.6-0.8 mpa/min	0.6-0.8 mpa/min
Machine Size	240190140cm	260190140cm	230168210cm
Carton Length	145-400mm	280-500mm	280-650mm
Carton Width	85-350mm	150-400mm	150-500mm
Carton Height	150-350mm	150-400mm	150-500mm

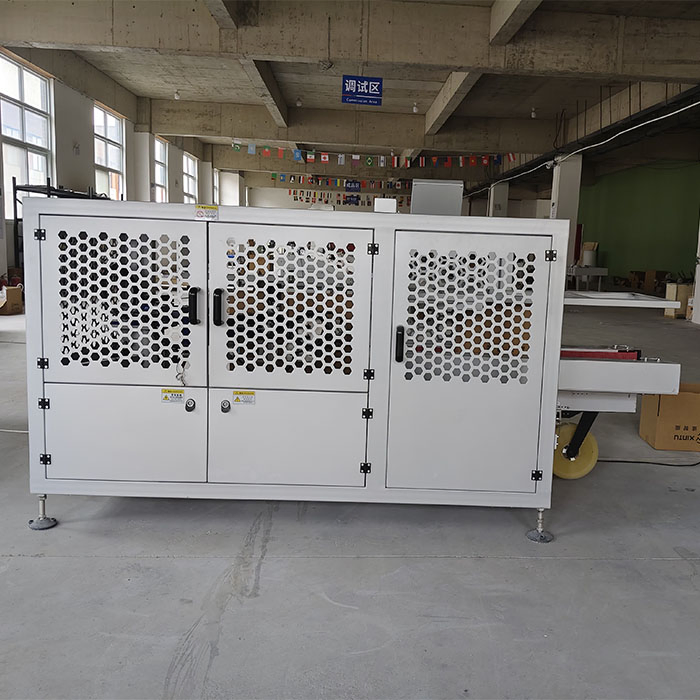

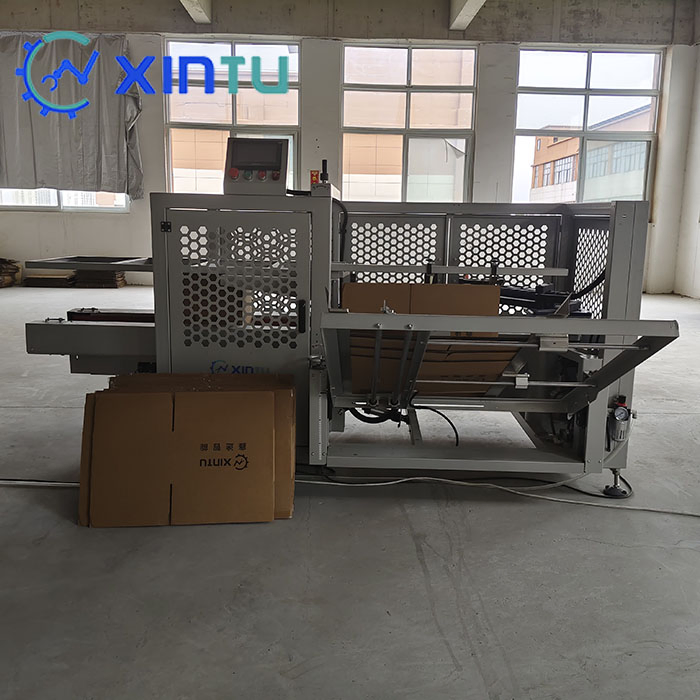

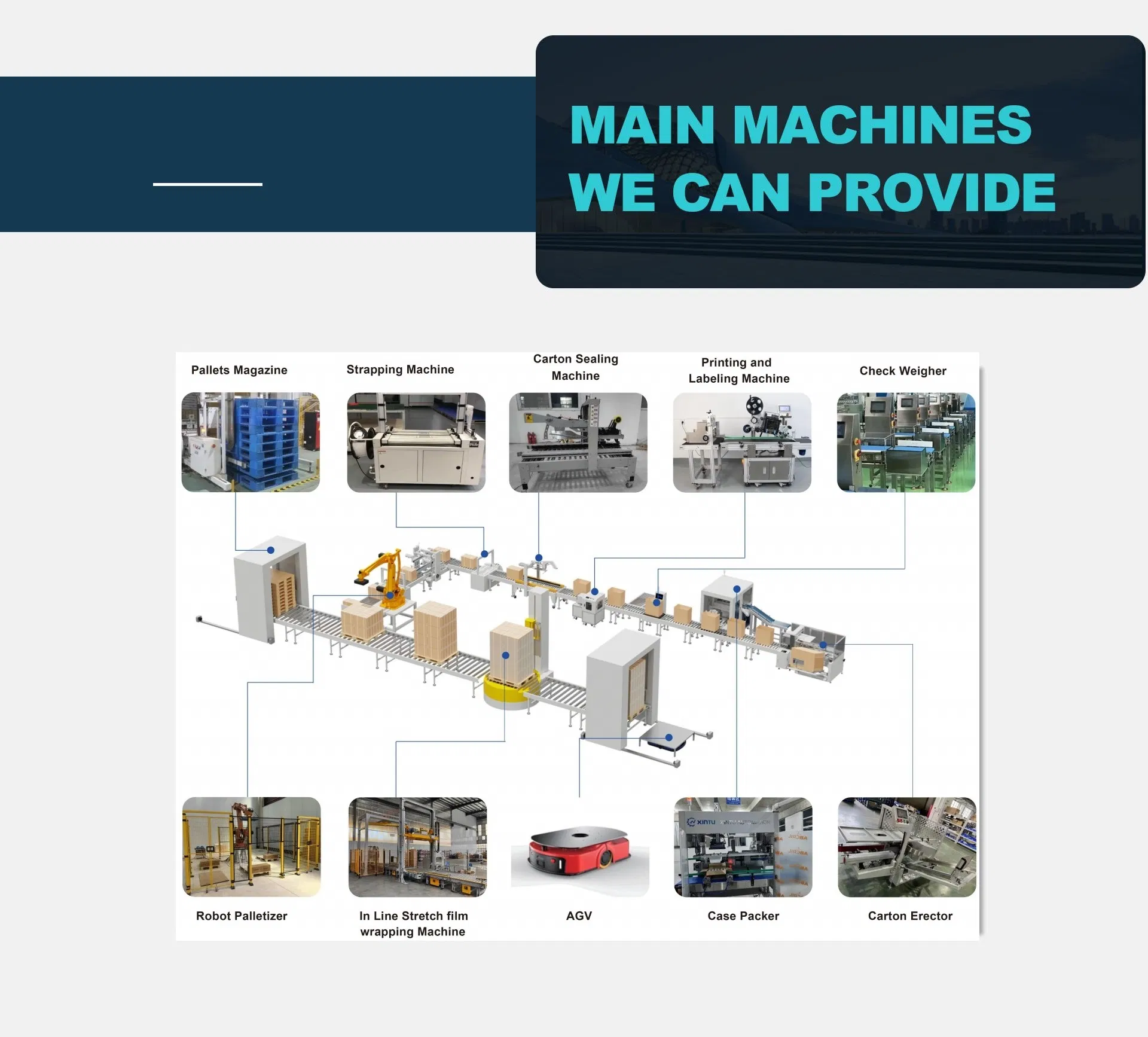

🏭 Production Showcase

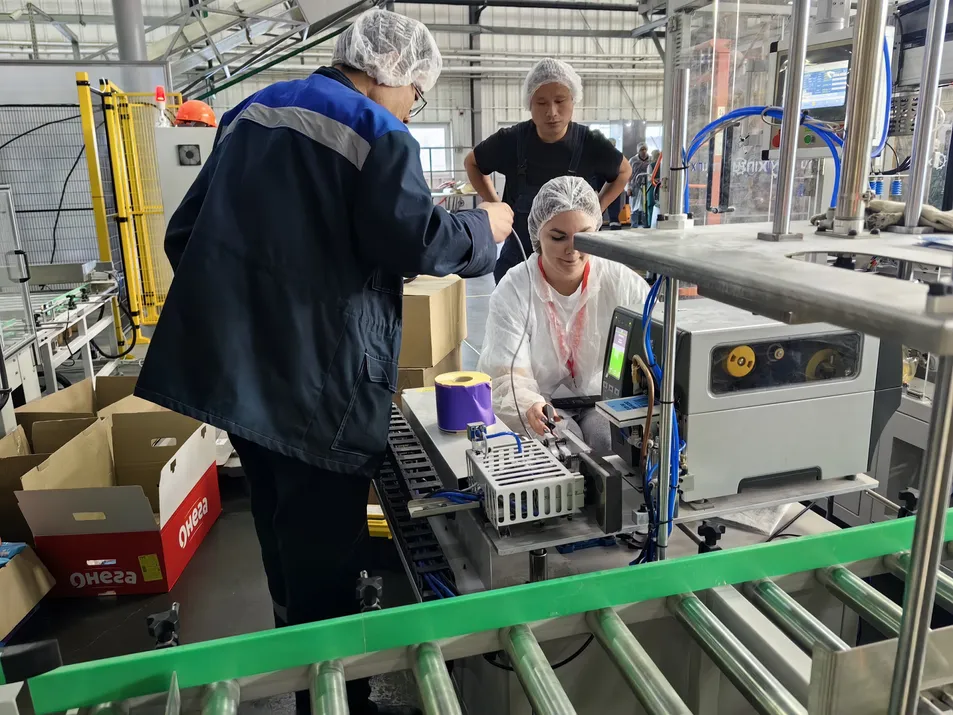

👥 After Sales Service

After-Sale Policy

✔ 1-year quality guarantee for peace of mind.
✔ 24/7 online technical support whenever you need it.
✔ On-site installation services available.
✔ Free online technical guidance for overseas customers.

❓ Frequently Asked Questions

Will your gripper work well with my product?

Absolutely. Send us your product, and we'll test it with our suction gripper to ensure a perfect match before finalizing the solution.

What's the maximum packaging speed?

Designed for speed, the gripper picks multiple products per cycle. We can boost performance by adding more gripper modules based on your carton size.

Is it hard to operate?

Not at all. It features a PLC touch screen with pre-programmed conditions. Our team provides remote guidance and online walk-throughs for new setups.

How much maintenance does it need?

Very little. We use high-quality core components from trusted brands. Simple routine checks and occasional wear part replacement are all that's required.

What's the production lead time?

Production usually takes 30–60 days depending on your specific requirements and customization needs.

How do I place an order?

Reach out to our sales team via email or online message. We will respond promptly to guide you through the whole ordering process.
